September 2001 88XX Series Folder Operator Manual 42
Clearing Upper and Lower Pocket
Jams
If the jam cannot be cleared using the Fan
Folder Jam Clearance Procedure, switch Off the
Folder and open the upper or the lower pockets.

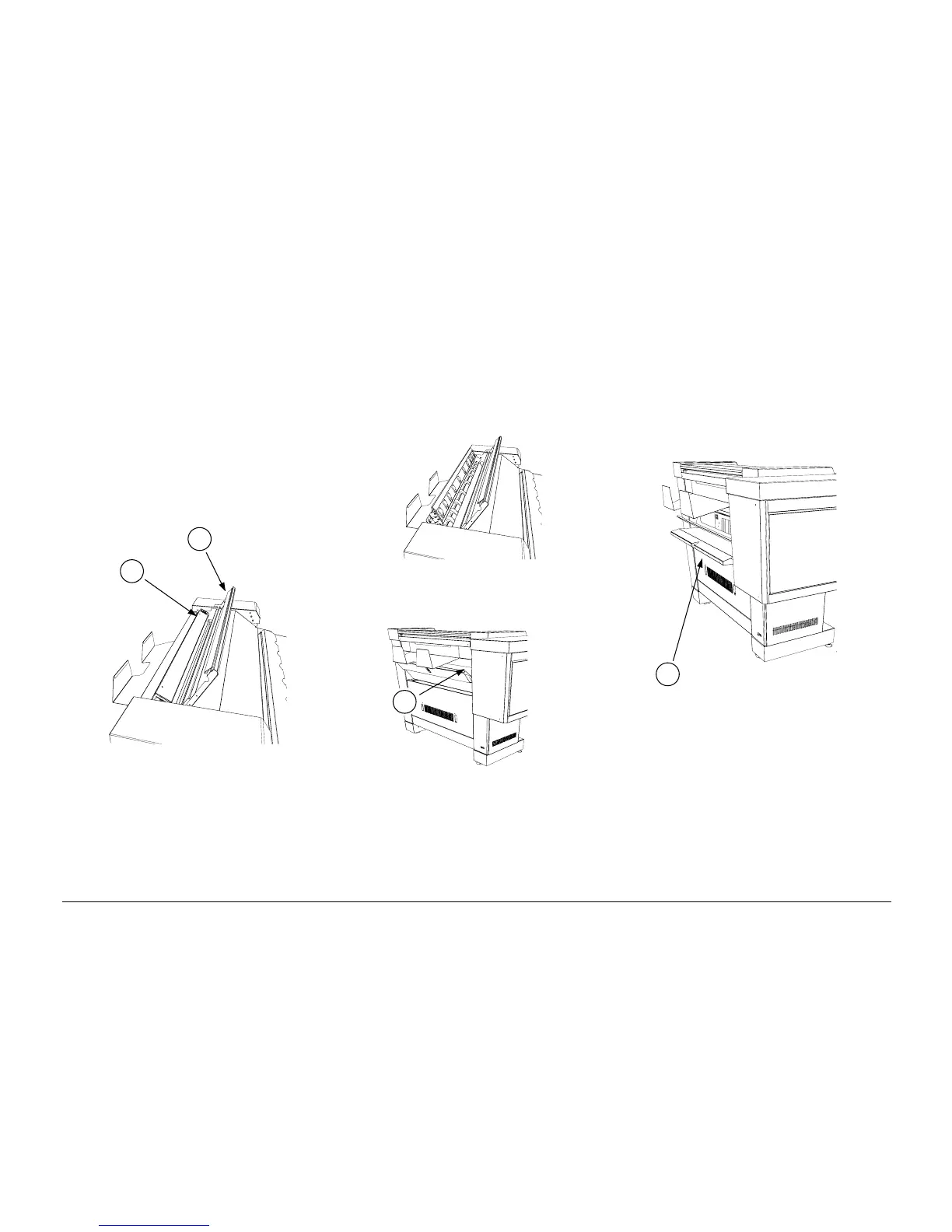

Clearing Upper Pocket Jams
112611
1. Raise the upper pocket cover (A).
2. Open the Mobile Guide Cover using the two
latches (B).
3. Remove the jammed media.
4. If media cannot be removed, follow Clearing
Mobile Roller Jam procedure.
112611
Clearing Lower Pocket Jams
112617
1. Move the latch (C) on the center of the door
downward to access the transport belt.
2. Remove the jammed media.
112617
3. If the print is jammed in to the lower pocket,
open the Conveyor Guide (D) and open the
Lower Mobile Guide by releasing the two
latches.
4. Remove the jammed media close the door
and press Reset
A
B
C
D
To Next Page
