September 2001 88XX Series Folder Operator Manual 44
Clearing Cross Folder Jam
Only for folders with TAG3
If a jam occurs in the cross folder and it is not clearable with the
Manual Eject Procedure, it is possible to remove the knife group and
one of the entry shafts to access to the jammed print.
112821/2/3

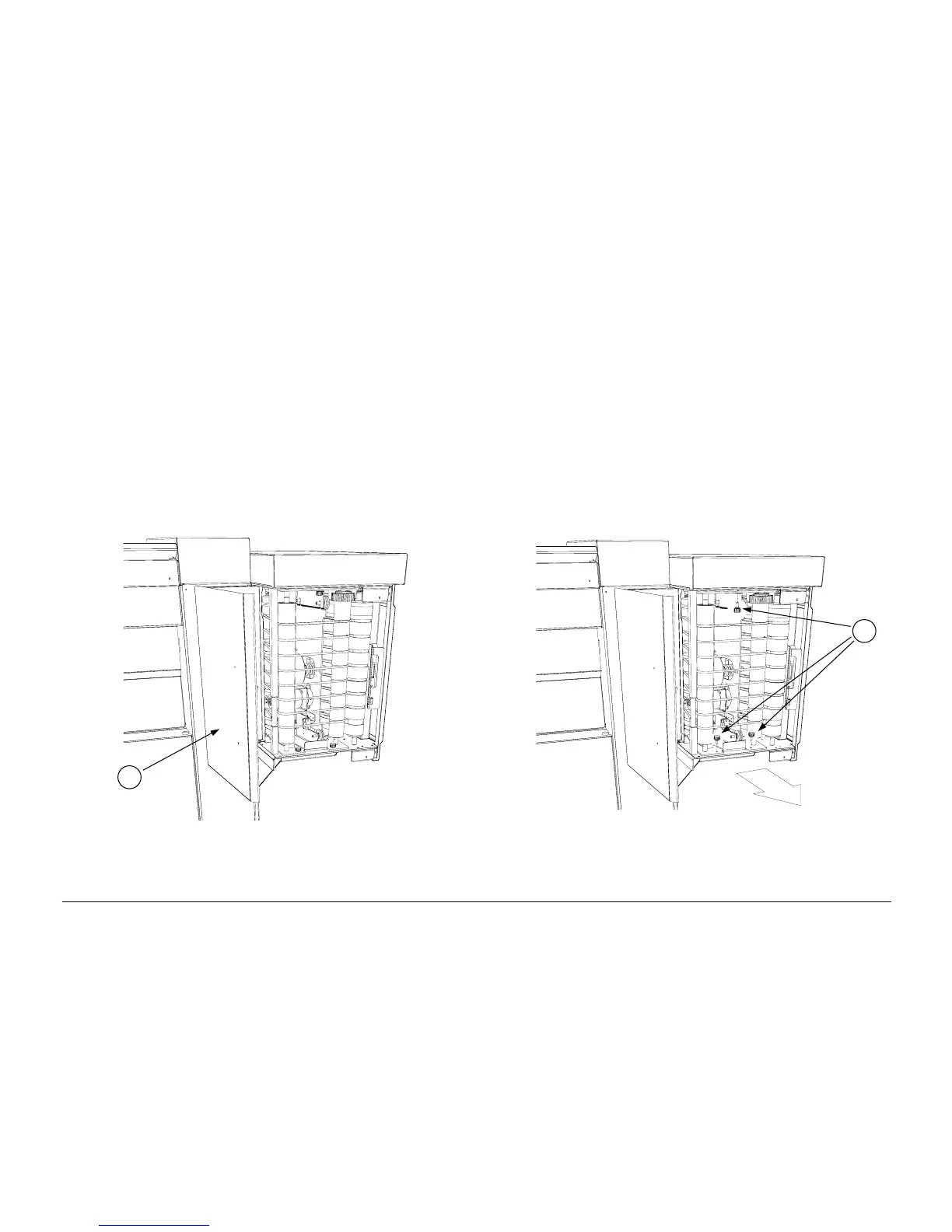

1. Open the Cross Right Door (A).
2. Try to remove the jam. If not possible, unscrew the three knobs (B)
(two on the lower side and 1 on the upper one) and start pulling the
knife outward.
A
B
To Next Page
