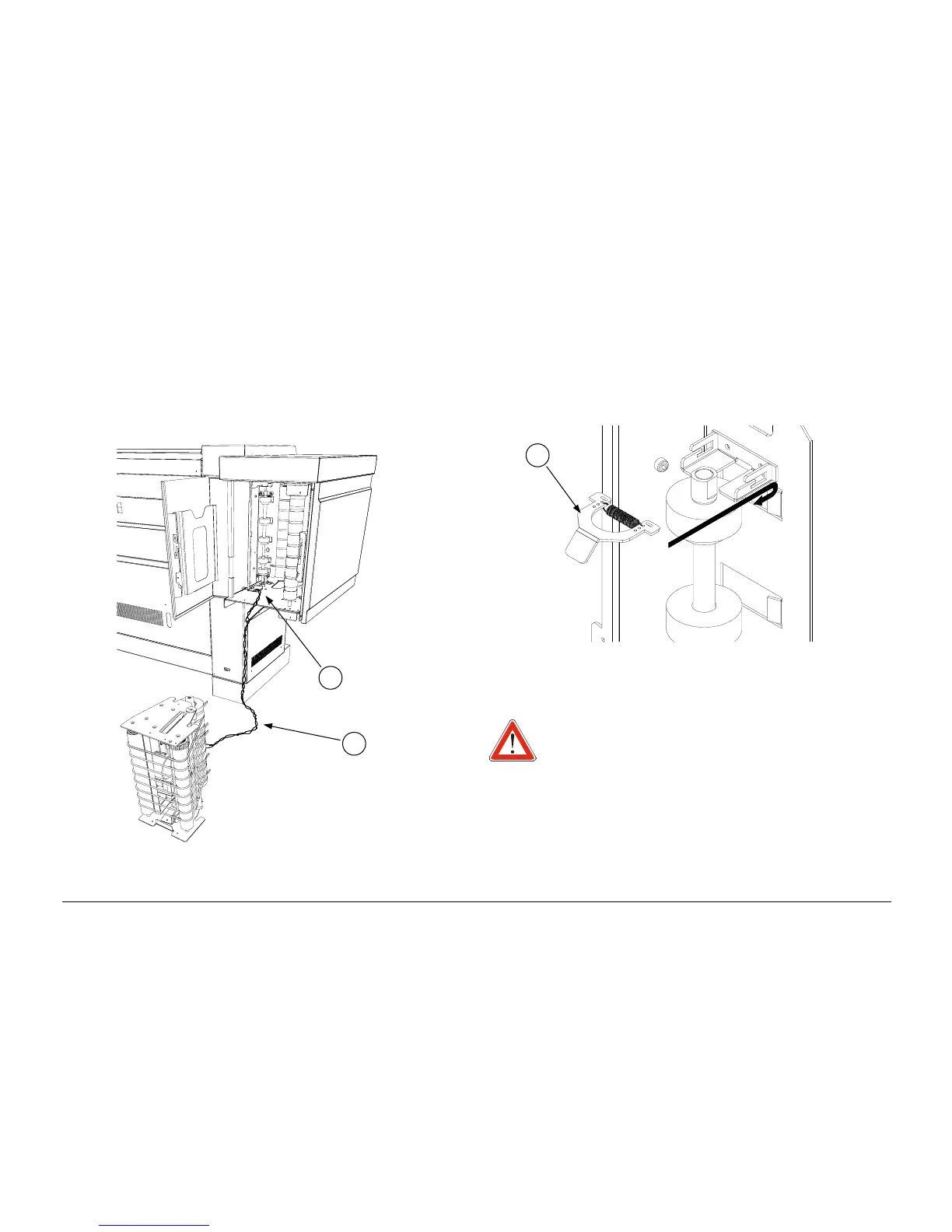

3. Check that the harnesses coming from the hole (D) are free to
follow the Knife Assembly movement and lay all of the group down
on the floor.
112824
4. Try to remove the jam. If not possible, operate on the spring support
(E) to remove the entry shaft.
5. Remove the jam.
6. Remount all the parts.
Be sure that the Knife harnesses go down in the hole (D) when
remounting the Knife Assembly.
7. Close the Cross Right Door and press “Reset”.
