Xerox® B205/B215 Multifunction Printer Service Manual
REP 4.13
Repairs / Adjustments
Initial Release
5. Remove the Feed and Registration Clutch Assembly and the PWB, Figure 3:
a. Disconnect CN3 from the Joint PWB, then remove the screw.
b. Remove the snap rings and washers from the Clutches, then remove the F
eed and
Regist
ration Clutches.
c. Release two latches, then remove the Feed and Registration Clutch Assembly
and
t
he PWB.

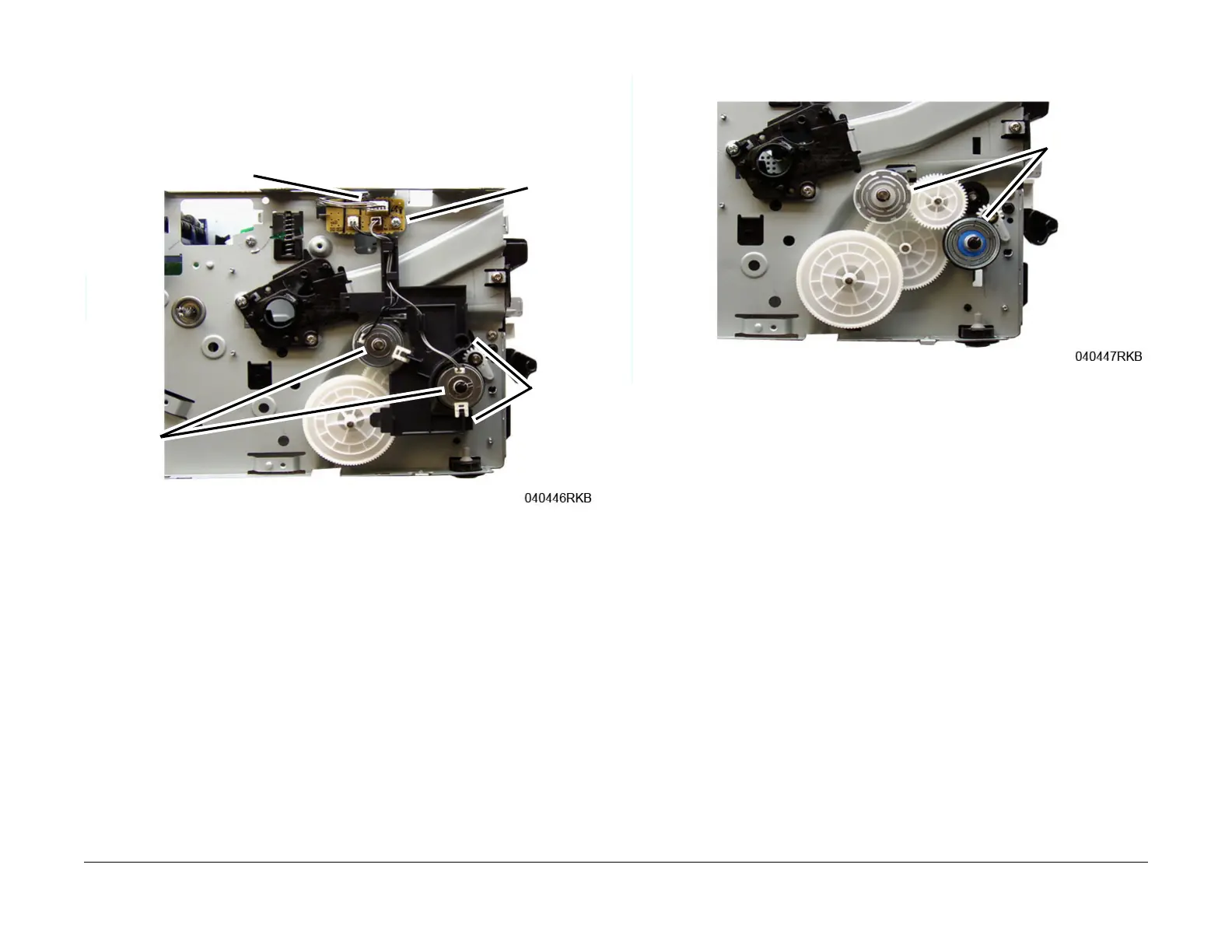

Figure 3 Feed and Registration Clutch / Feeder PWB
6. Remove the Feed and Registration Clutch Drive Gears, F
igure 4.
Figure 4 Feed and Registration Clutch Drive Gears
Screw
CN3
Snap Rings
& Washers
Latches
To Next Page
