Xerox® B205/B215 Multifunction Printer Service Manual
REP 6.1
Repairs / Adjustments
Initial Release
REP 6.1 Retard Roll
Parts List on PL 6.1
Removal
1. Remove the Paper Cassette and any paper from the tray.
2. In the Cassette, pull down on the latches (2) to open the Retard Roll Cover, F
igure 1.

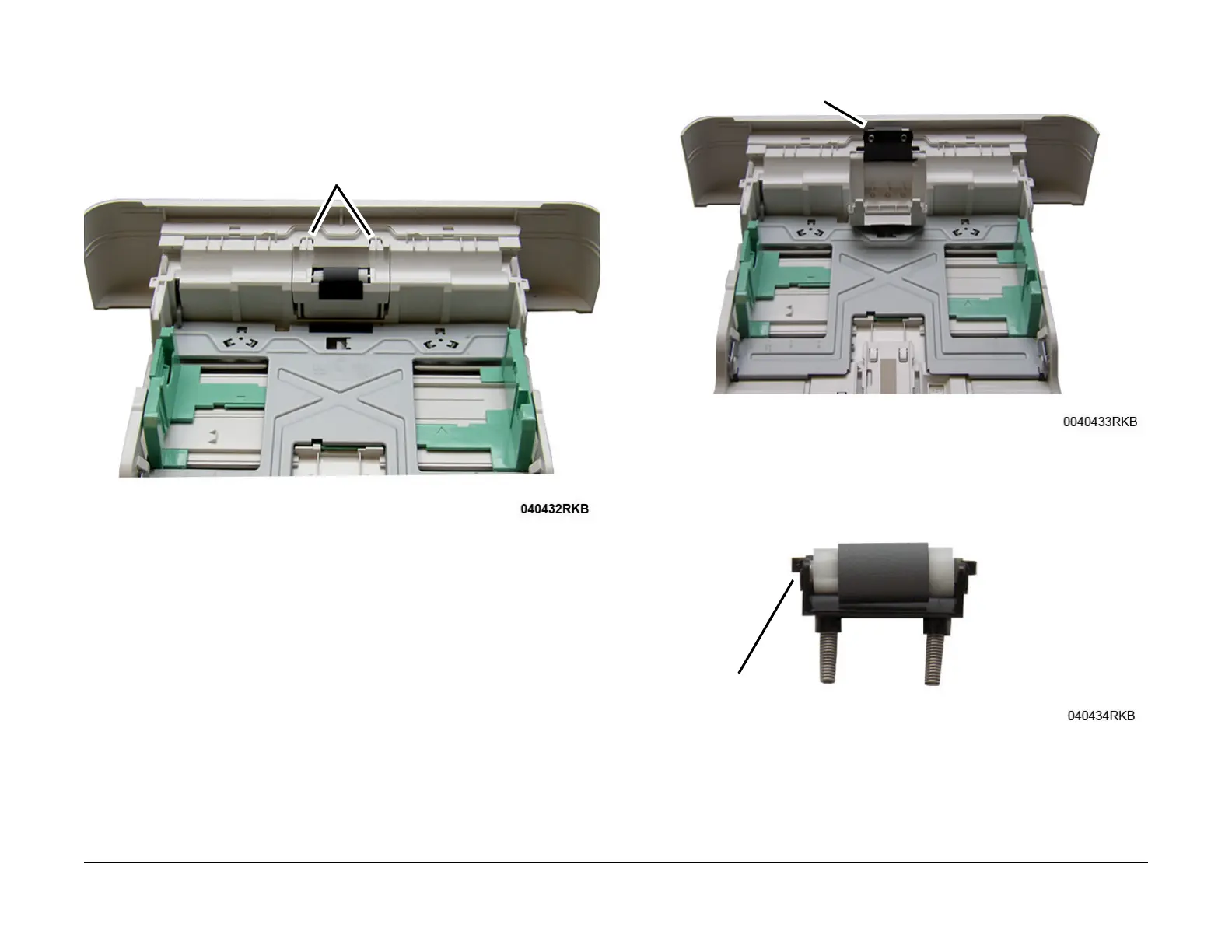

Figure 1 Retard Roll Cover Latches
3. Rotate the Retard Roll Holder up and remove it from the Cassette, F
igure 2.
Figure 2 Retard Roll Holder Removal
4. Slide the left side of the Retard Roll out of the holder and remove it, Fi
gure 3.
Figure 3 Retard Roll Removal
