Xerox B215 - 7.2 Scanner Module (B215)

July 2019
5-18
Xerox® B205/B215 Multifunction Printer Service Manual
PL 7.2
Initial Release
Parts Lists

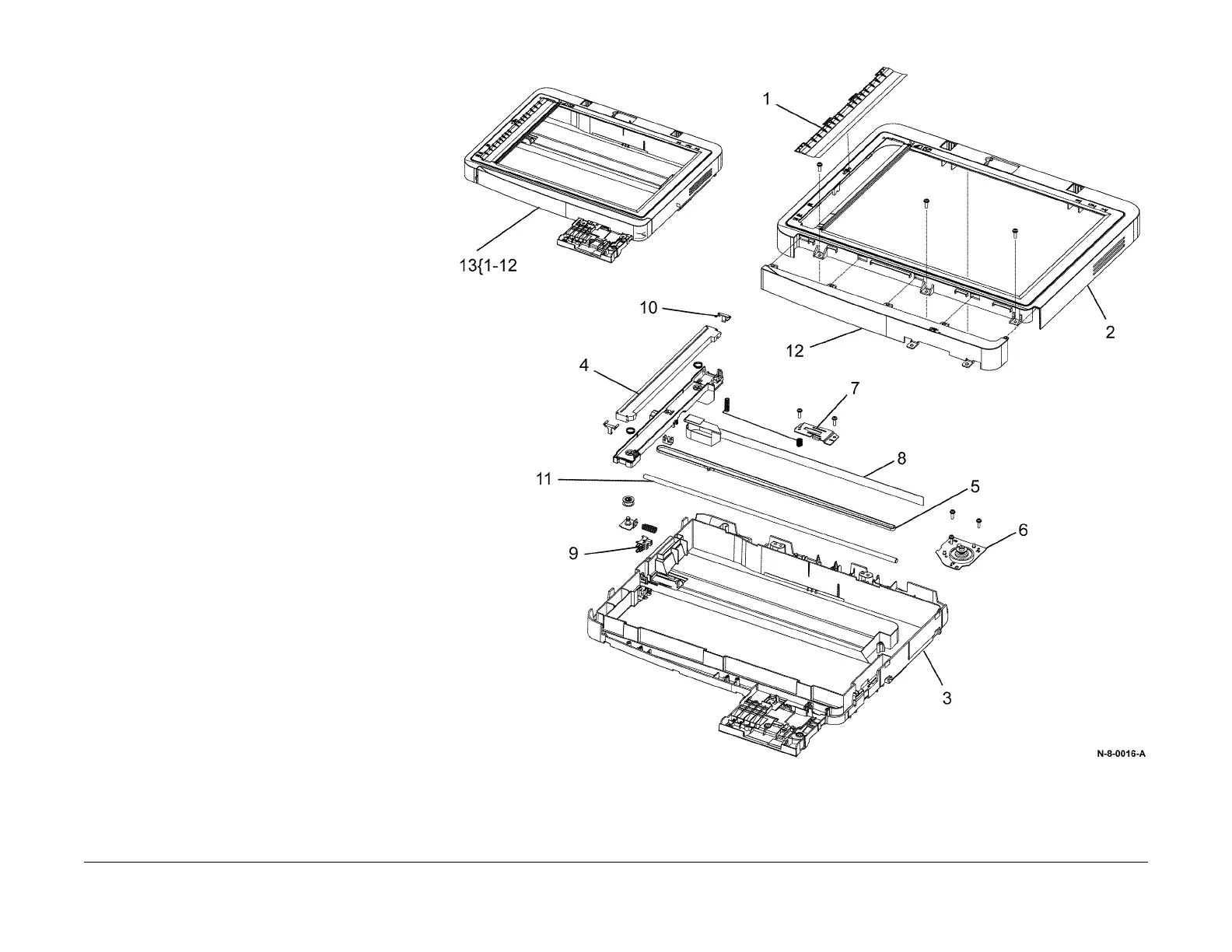

PL 7.2 Scanner Module (B215)
Item Part Description
1 – Paper Guide
2 – Upper Scanner Frame
3 – Lower Scanner Frame
4 – Contact Image Sensor (CIS)
5 –Drive Belt
6 – Scanner Drive Motor
7 – Connector Bracket (RE
P 7.1)
8 –Flat Cable
9 – Scanner Home Sensor
10 – CIS Holder
11 – CIS Guide Shaft
12 – Front Cover
13 090N00191 Scanner Module (RE
P 7.2)
