Xerox B215 - 5.2 Lower Fuser

July 2019
5-15
Xerox® B205/B215 Multifunction Printer Service Manual
PL 5.2
Parts Lists
Initial Release

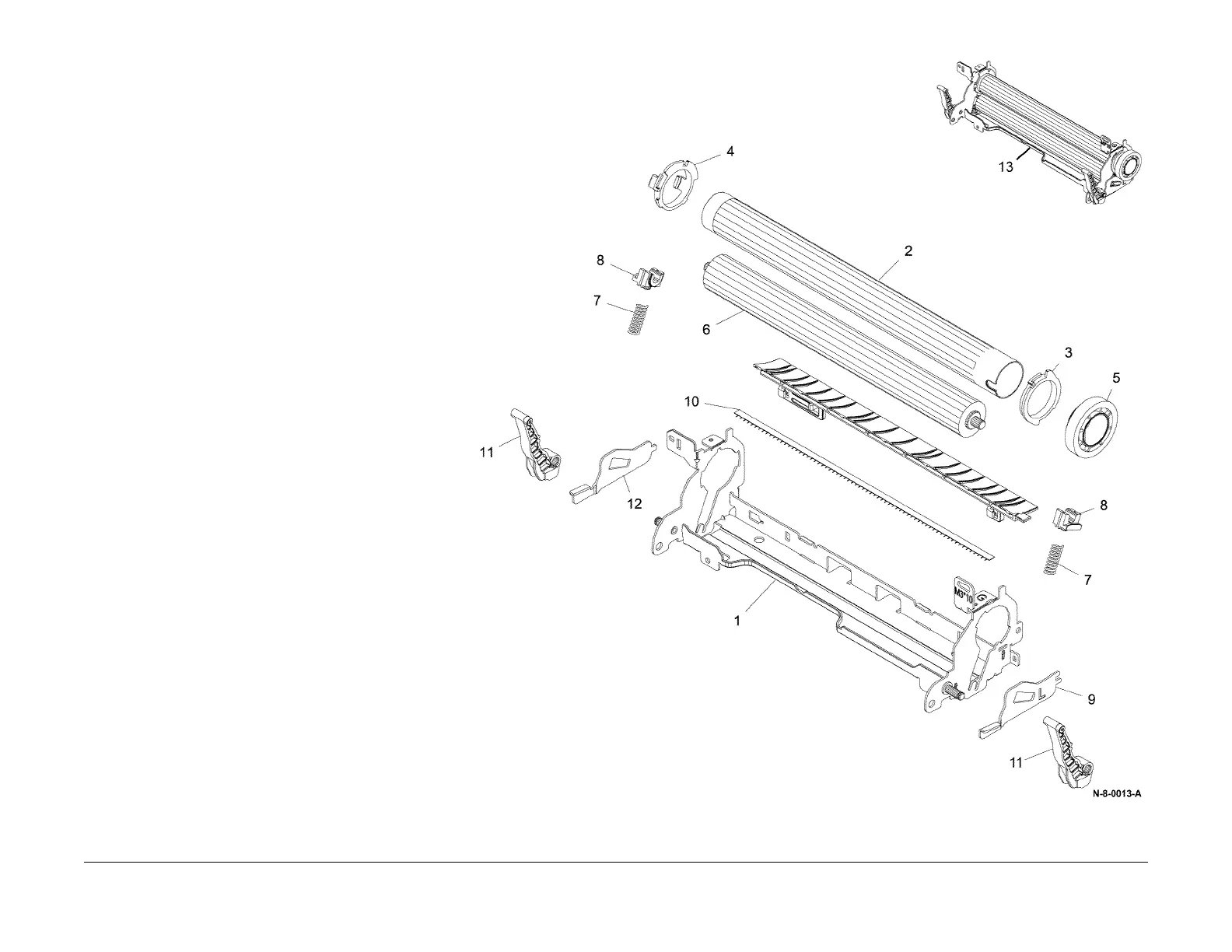

PL 5.2 Lower Fuser
Item Part Description
1 – Fuser Frame
2 – Heat Roller
3 – Left Bushing
4 – Right Bushing
5 – Gear
6 – Roller
7 –Spring
8 – Bushing
9 – Left Jam Lever Link
10 – Antistatic Brush
11 – Jam Lever
12 – Paper Guide Holder
13 – Lower Fuser Assembly
