Xerox® B205/B215 Multifunction Printer Service Manual
Image Quality Overview, IQ1
Initial Release
Image Quality
Test Prints
Test Pattern pages are available for troubleshooting image quality defects and to confirm
proper printer operation. Printing the Test Pattern is useful for stimulating asynchronous
(dynamic) events related to the print process, or as a test for media path and media-related
problems.
The test print provides a variety of different line
styles in both process and cross-process direc-
tions. The pattern is used to check registration, dot size and image density.
Test Pattern 1 and Test Pattern 2 are essentially the same but for different media sizes. Ta
ble 2 ,
describes the test patterns and the purpose for which they are used to identify image quality
defects.
To create a test print from the Control Panel:
1. Enter Diagnostic Mode. Press the <Me
nu> button, the <#> button, then using the keypad
select <1934>, then press the <OK> button.
2. Select: [
Diagnostics, Machine Test, Test Pattern, Print, Yes]. Press the <OK> button
af
ter menu selections.
• Test Pattern 1 for 8.5 x 11 prints.
• Test Pattern 2 for A4 prints.
IQ1 Vertical Black Line and Band RAP
Thin black vertical lines or black vertical bands occur in the printed image, Figure 1.
Procedure
Switch Off the power.
Check the Transfer Roller, PL 4.
1 Item 10, for wear or damage; and remaining life, refer to GP 6
Machine Reports. The Transfer Roller is OK.
YN
Install a new Transfer Roller, P
L 4.1 Item 10.
Switch On the power and make a test print.
If the fault persists, Install a new Drum Cartridge, refer to the Xerox® B215/B205 User Guide
f
or detailed instructions on how to Install a new Drum Cartridge.

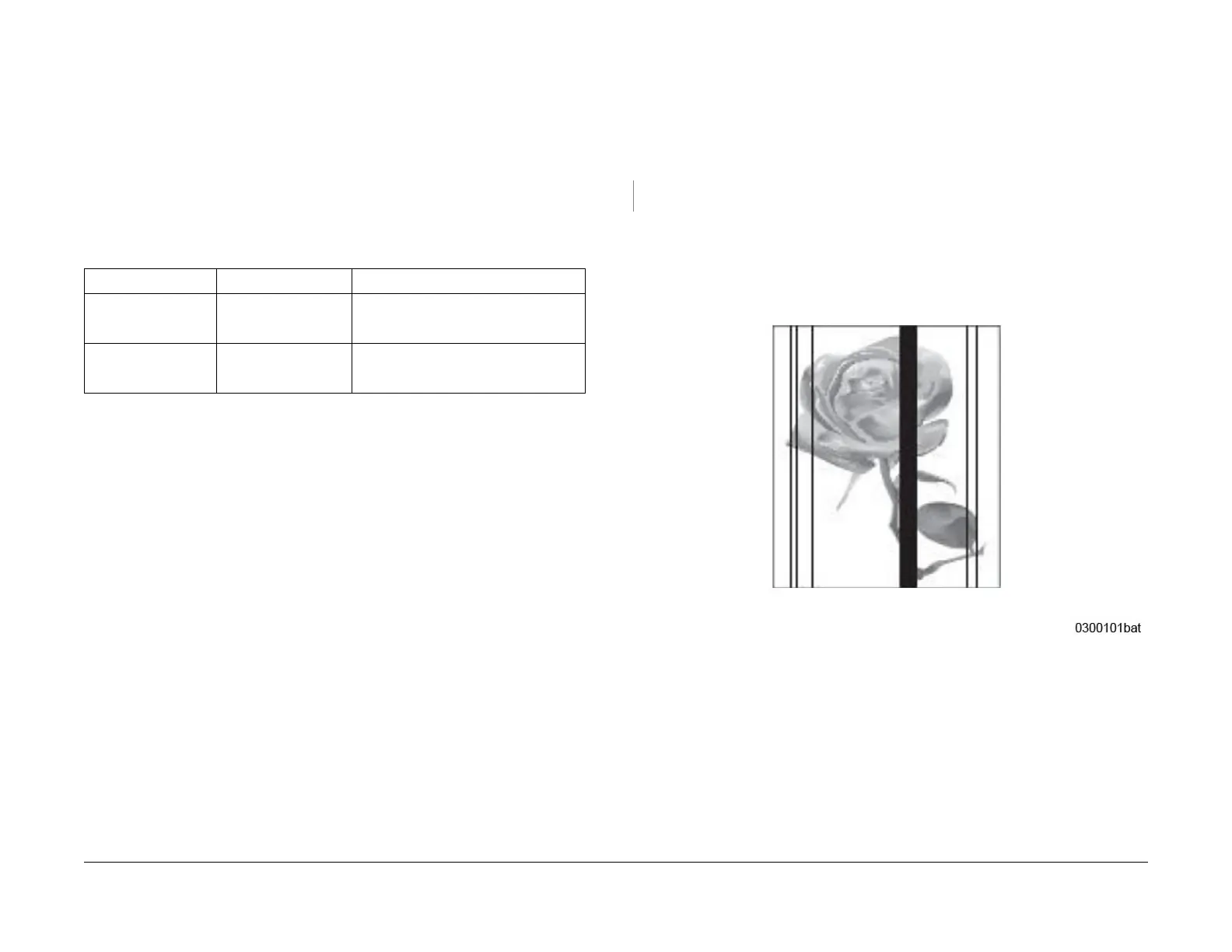

Figure 1 Black Lines and Bands
Table 2 Internal Test Patterns
Test Pattern Number Description Purpose
Test Pattern 1 8.5 x 11 inches (Letter) Light density uniformity, deletions, lines,
bands
, streaks, smears, solid area repro-
duction, motion quality (LSU).
Test Pattern 2 A4 Light density uniformity, deletions, lines,
bands
, streaks, smears, solid area repro-
duction, motion quality (LSU).

Xerox B215 Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Maximum copy resolution	600 x 600 DPI
Time to first copy (black, normal)	14 s
Scan to	E-mail, FTP, SMB, USB
Scanner type	Flatbed & ADF scanner
Maximum scan area	216 x 356 mm
Image formats supported	JPG, TIFF
Maximum scan resolution	4800 x 4800 DPI
Document formats supported	PDF
Optical scanning resolution (black)	1200 x 1200 ppi
Faxing	Mono faxing
Fax forwarding to	Fax, PC
Fax coding methods	JBIG, MH, MMR (Fax coding method), MR
Digital sender	-
Printing colors	Black
Country of origin	China
Maximum duty cycle	30000 pages per month
Number of print cartridges	1
Page description languages	PCL 5, PCL 6, PostScript 3, XPS
Sustainability certificates	ENERGY STAR
Control type	Touch
Product color	Black, White
Display diagonal	3.5 \
Market positioning	Business
Paper input type	Paper tray
Total input capacity	250 sheets
Total output capacity	120 sheets
Multi-Purpose tray input capacity	1 sheets
Auto document feeder (ADF) input capacity	40 sheets
Paper tray media weight	60 - 163 g/m²
Multi-purpose tray media types	Bond paper, Envelopes, Heavyweight paper, Labels, Plain paper, Preprinted forms, Thicker paper, Transparencies
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Auto Document Feeder (ADF) media weight	60 - 120 g/m²
Compatibility	Xerox B215
Internal memory	256 MB
Card reader integrated	No
USB connector	USB Type-A / USB Type-B
USB 2.0 ports quantity	2
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Mopria Print Service
Power consumption (standby)	46 W
Power consumption (PowerSave)	2 W
Power consumption (average operating)	417 W
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Included cartridge capacity (black)	1500 pages
Recommended monthly print volume	3000 pages
Package weight	14000 g
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	460 mm
Width	490 mm
Height	480 mm
