Xerox B215 Service Manual

July 2019
3-8
Xerox® B205/B215 Multifunction Printer Service Manual
IQ7
Initial Release
Image Quality
IQ7 Uneven Density RAP
Print density is uneven between the left and right portion of the printed image, Figure 1.
Initial Actions
• Ensure that the priner is level.
• Check the life of the Toner Cartridge, refer to GP
6 Machine Reports.
Install a new Toner Cartridge if it has reached end of life, refer to the Xerox® B215/B
205
User G
uide for detailed instructions on how to Install a new Toner Cartridge.
• Remove the Toner Cartridge. Rotate the Toner Cartridge 5-6 full rotations to redistribute
t
he toner.
Procedure
WARNING
Do not perform repair activities with the power on or electrical power supplied to the
machine. Some machine components contain dangerous electrical voltages that can
result in electrical shock and possible serious injury.
DANGER: Ne pas effectuer de dépannnage avec le contact principal activé ou avec l'ali-
mentation électrique appliquée à la machine. Certains éléments de la machine compor-
tent des tensions électriques dangereuses qui peuvent causer un choc électrique et de
g
raves blessures.
AVVERTENZA: Non effettuare alcuna riparazione con l'alimentazione elettrica inserita.
Al
cuni componenti contengono corrente ad alta tensione che può provocare forti
scosse e gravi ferite.
VORSICHT: Es dürfen erst Reparaturarbeiten durchgeführt werden, wenn das Gerät aus-
geschaltet ist oder der Netzstecker nicht mehr mit der Stromquelle verbunden ist. Einige
K
omponenten des Gerätes sind stromführend und können daher zu ernsthaften Verlet-
zungen oder Stromschlägen führen.
AVISO: No realice reparaciones con la máquina encendida o conectada a la corriente.
Al
gunos componentes de la máquina contienen voltajes eléctricos peligrosos que
pueden producir una descarga eléctrica y causar daños graves.
Switch Off the Power. Check the contacts on the Toner Cartridge and HVPS PWB for contami-
nation. The contacts are OK.
YN
Clean the contacts or Install a new Toner Cartridge.
Check the Transfer Roller for wear or damage. The Transfer Roller is OK.
YN
Install a new Transfer Roller, PL
4.1 Item 10.
If the fault persists, Install a new HVPS PWB, PL 4.
1 Item 26.

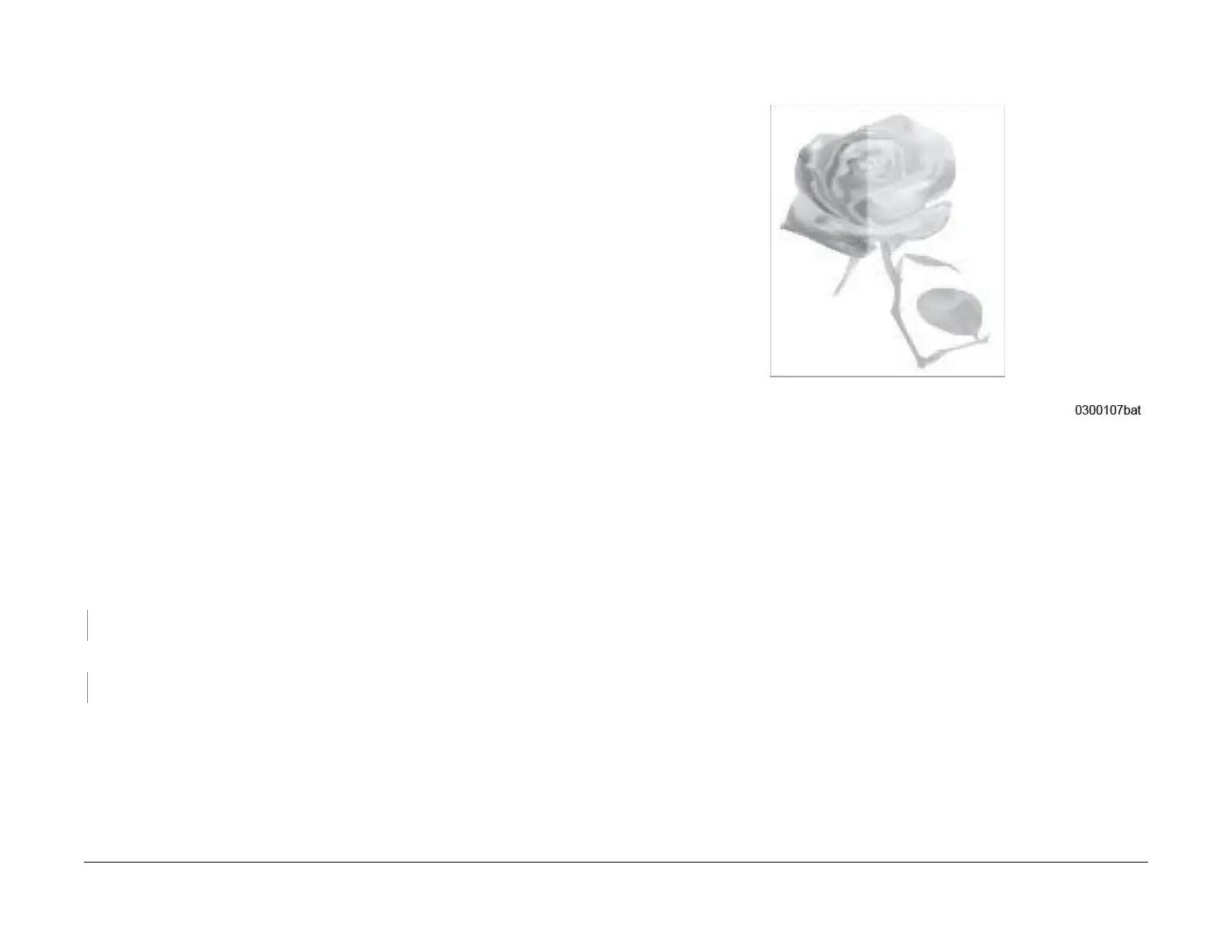

Figure 1 Uneven Density

Xerox B215 Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Maximum copy resolution	600 x 600 DPI
Time to first copy (black, normal)	14 s
Scan to	E-mail, FTP, SMB, USB
Scanner type	Flatbed & ADF scanner
Maximum scan area	216 x 356 mm
Image formats supported	JPG, TIFF
Maximum scan resolution	4800 x 4800 DPI
Document formats supported	PDF
Optical scanning resolution (black)	1200 x 1200 ppi
Faxing	Mono faxing
Fax forwarding to	Fax, PC
Fax coding methods	JBIG, MH, MMR (Fax coding method), MR
Digital sender	-
Printing colors	Black
Country of origin	China
Maximum duty cycle	30000 pages per month
Number of print cartridges	1
Page description languages	PCL 5, PCL 6, PostScript 3, XPS
Sustainability certificates	ENERGY STAR
Control type	Touch
Product color	Black, White
Display diagonal	3.5 \
Market positioning	Business
Paper input type	Paper tray
Total input capacity	250 sheets
Total output capacity	120 sheets
Multi-Purpose tray input capacity	1 sheets
Auto document feeder (ADF) input capacity	40 sheets
Paper tray media weight	60 - 163 g/m²
Multi-purpose tray media types	Bond paper, Envelopes, Heavyweight paper, Labels, Plain paper, Preprinted forms, Thicker paper, Transparencies
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Auto Document Feeder (ADF) media weight	60 - 120 g/m²
Compatibility	Xerox B215
Internal memory	256 MB
Card reader integrated	No
USB connector	USB Type-A / USB Type-B
USB 2.0 ports quantity	2
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Mopria Print Service
Power consumption (standby)	46 W
Power consumption (PowerSave)	2 W
Power consumption (average operating)	417 W
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Included cartridge capacity (black)	1500 pages
Recommended monthly print volume	3000 pages
Package weight	14000 g
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	460 mm
Width	490 mm
Height	480 mm
