Xerox B215 Service Manual

July 2019
6-15
Xerox® B205/B215 Multifunction Printer Service Manual
GP 1
General Procedures / Information
Initial Release
GP 1 Diagnostics Entry and Exit (B215 and B205)
Purpose
This procedure describes the following items:
• How to enter Diagnostics Mode.
• How to exit Diagnostics.
For detailed information on Diagnostics Mode menu items, refer to Diagnostic Informat
ion in
t
he Diagnostics section of this service manual.

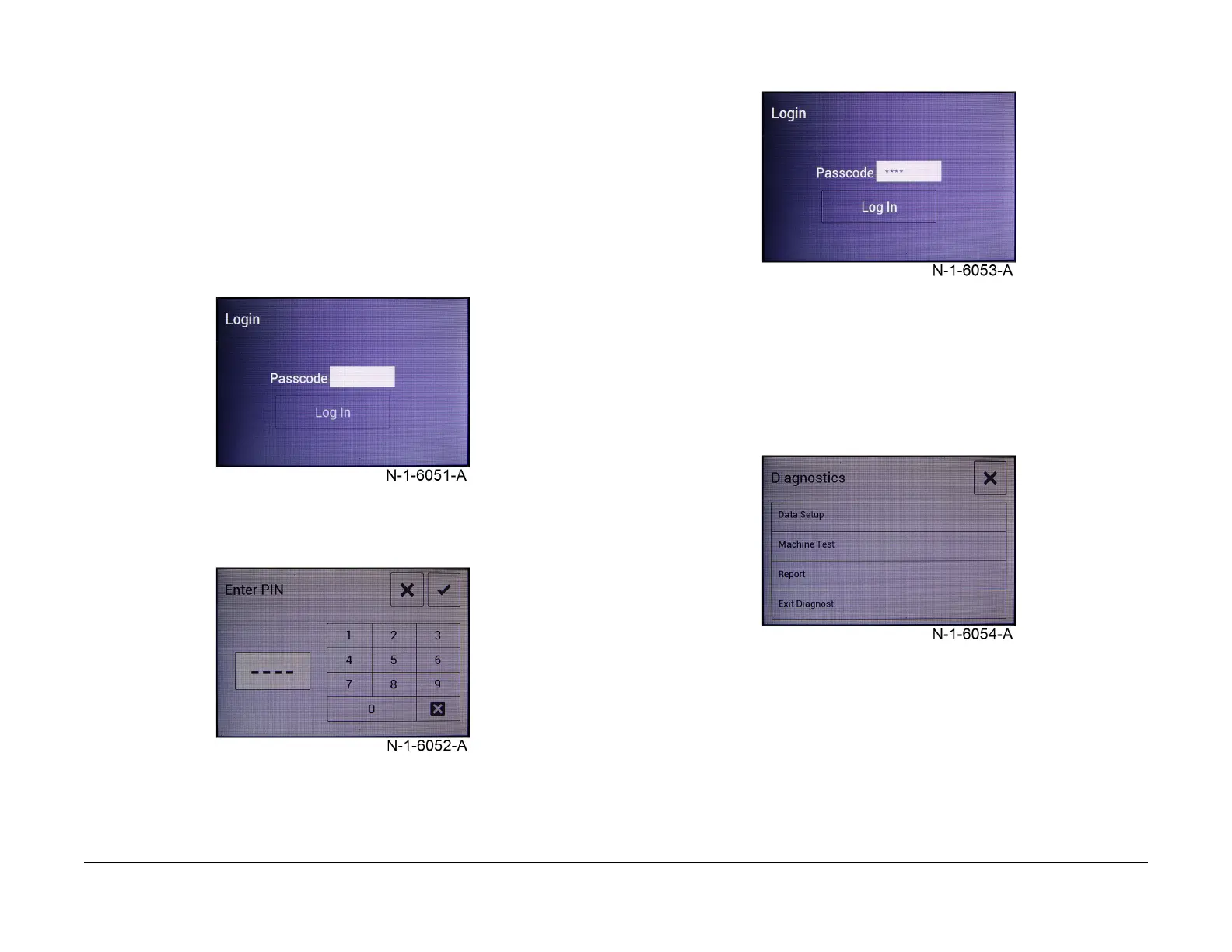

Procedure - B215 Diagnostics Mode Entry
Diagnostics entry for the B215 Multifunctional Printer:
1. Press and hold the Home Button on
the control panel for at least 5 seconds until the
P
assword screen appears, Figure 1
.
Figure 1 Password screen
2. Touch the box next to Passcode to open the keypad, F
igure 2.
Figure 2 Keypad screen
3. Enter the numbers [1934] as t
he password, then touch [Log In], Figure 3.
Figure 3 Password displayed screen
4. The Diagnostic Entry screen appears, F
igure 4.
The following options are available:
• Data Setup
• Machine Test
• Report
• Exit Diagnostics
Figure 4 Diagnostics entry screen
NOTE: For detailed information on Diagnostics Mode menu items, refer to Diagnost
ic
Information.

Xerox B215 Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Maximum copy resolution	600 x 600 DPI
Time to first copy (black, normal)	14 s
Scan to	E-mail, FTP, SMB, USB
Scanner type	Flatbed & ADF scanner
Maximum scan area	216 x 356 mm
Image formats supported	JPG, TIFF
Maximum scan resolution	4800 x 4800 DPI
Document formats supported	PDF
Optical scanning resolution (black)	1200 x 1200 ppi
Faxing	Mono faxing
Fax forwarding to	Fax, PC
Fax coding methods	JBIG, MH, MMR (Fax coding method), MR
Digital sender	-
Printing colors	Black
Country of origin	China
Maximum duty cycle	30000 pages per month
Number of print cartridges	1
Page description languages	PCL 5, PCL 6, PostScript 3, XPS
Sustainability certificates	ENERGY STAR
Control type	Touch
Product color	Black, White
Display diagonal	3.5 \
Market positioning	Business
Paper input type	Paper tray
Total input capacity	250 sheets
Total output capacity	120 sheets
Multi-Purpose tray input capacity	1 sheets
Auto document feeder (ADF) input capacity	40 sheets
Paper tray media weight	60 - 163 g/m²
Multi-purpose tray media types	Bond paper, Envelopes, Heavyweight paper, Labels, Plain paper, Preprinted forms, Thicker paper, Transparencies
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Auto Document Feeder (ADF) media weight	60 - 120 g/m²
Compatibility	Xerox B215
Internal memory	256 MB
Card reader integrated	No
USB connector	USB Type-A / USB Type-B
USB 2.0 ports quantity	2
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Mopria Print Service
Power consumption (standby)	46 W
Power consumption (PowerSave)	2 W
Power consumption (average operating)	417 W
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Included cartridge capacity (black)	1500 pages
Recommended monthly print volume	3000 pages
Package weight	14000 g
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	460 mm
Width	490 mm
Height	480 mm
