July 2019
4-69
Xerox® B205/B215 Multifunction Printer Service Manual
REP 8.5
Repairs / Adjustments
Initial Release
5. Release the Control Panel FFC cable, then remove the Control Panel PWB, Figure 3.

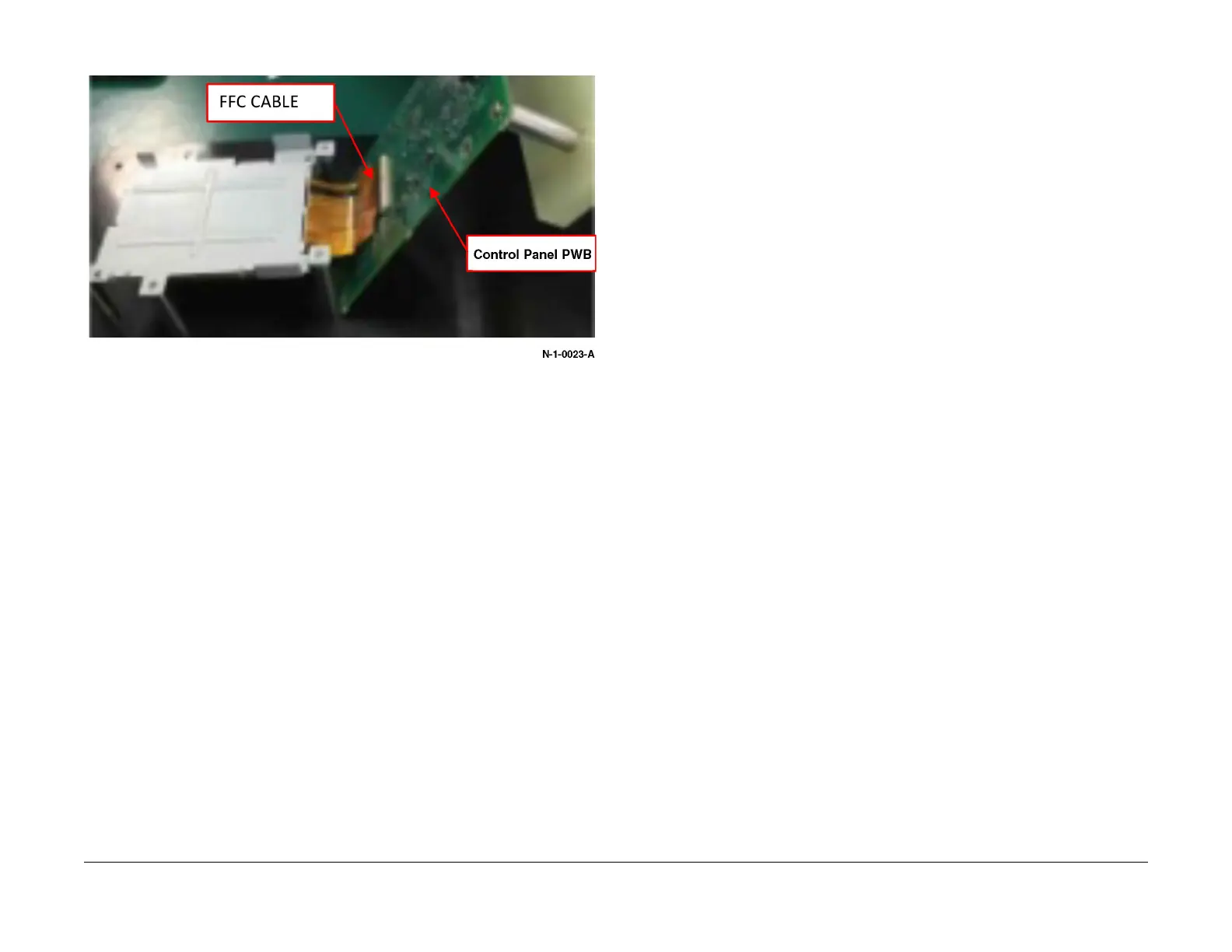

Figure 3 Control Panel PWB removal
Replacement
The replacement is the reverse of the removal procedure.
