Perform the following to replace the OHCF feed rolls:

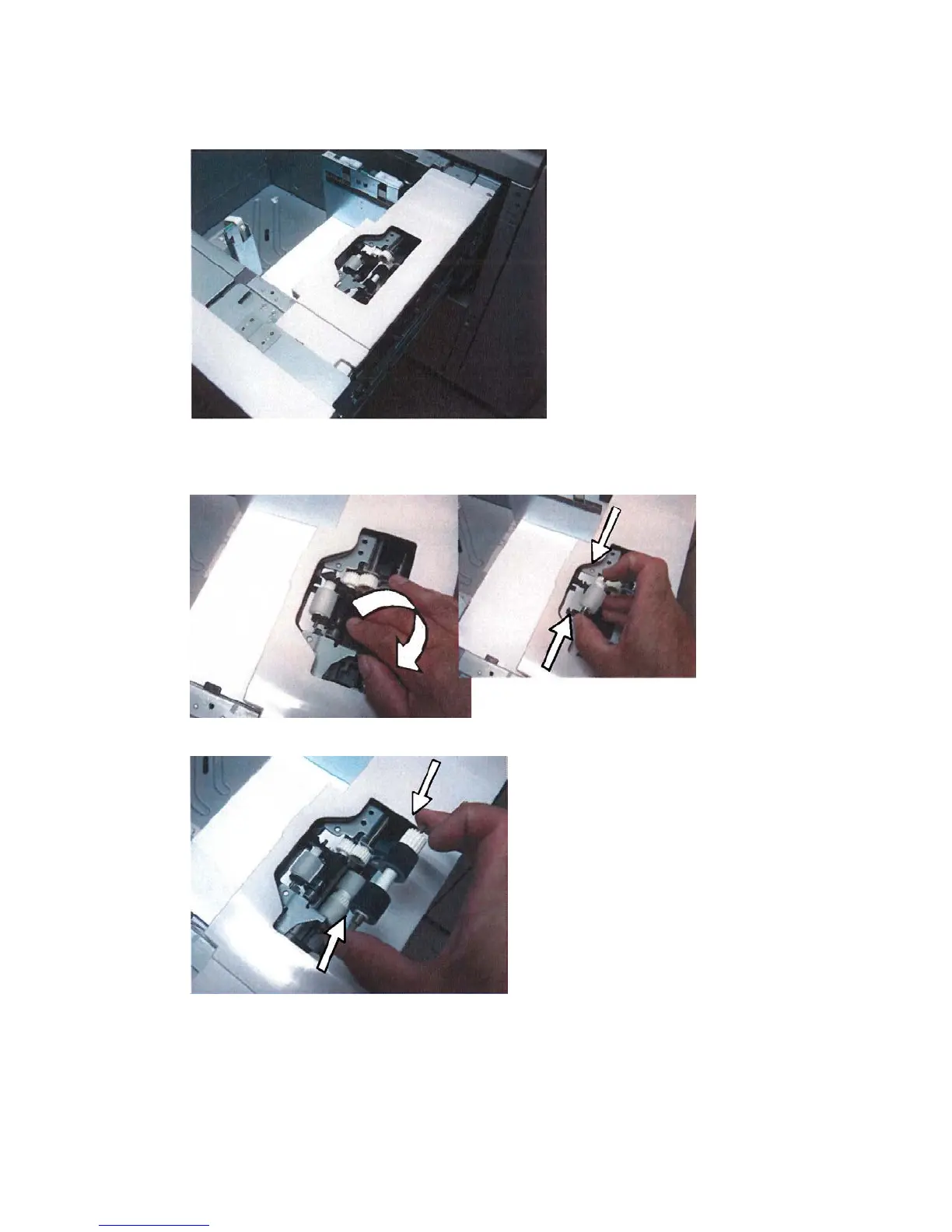

1. Pull open an OHCF tray to access the feed components.
2. Replace the nudger roll by pushing the black tab with one hand and then squeezing
the metal shaft with your other hand.
3. Replace the feed roll using the same technique.
4. Remove the three thumb screws on the side of the feeder assembly.
12-9Xerox
®
Color J75 Press
User Guide
Oversized High Capacity Feeder (OHCF), 1 or 2 trays (Trays 6/7)
