Welcome
2 DocuMate 515 Scanner User’s Guide

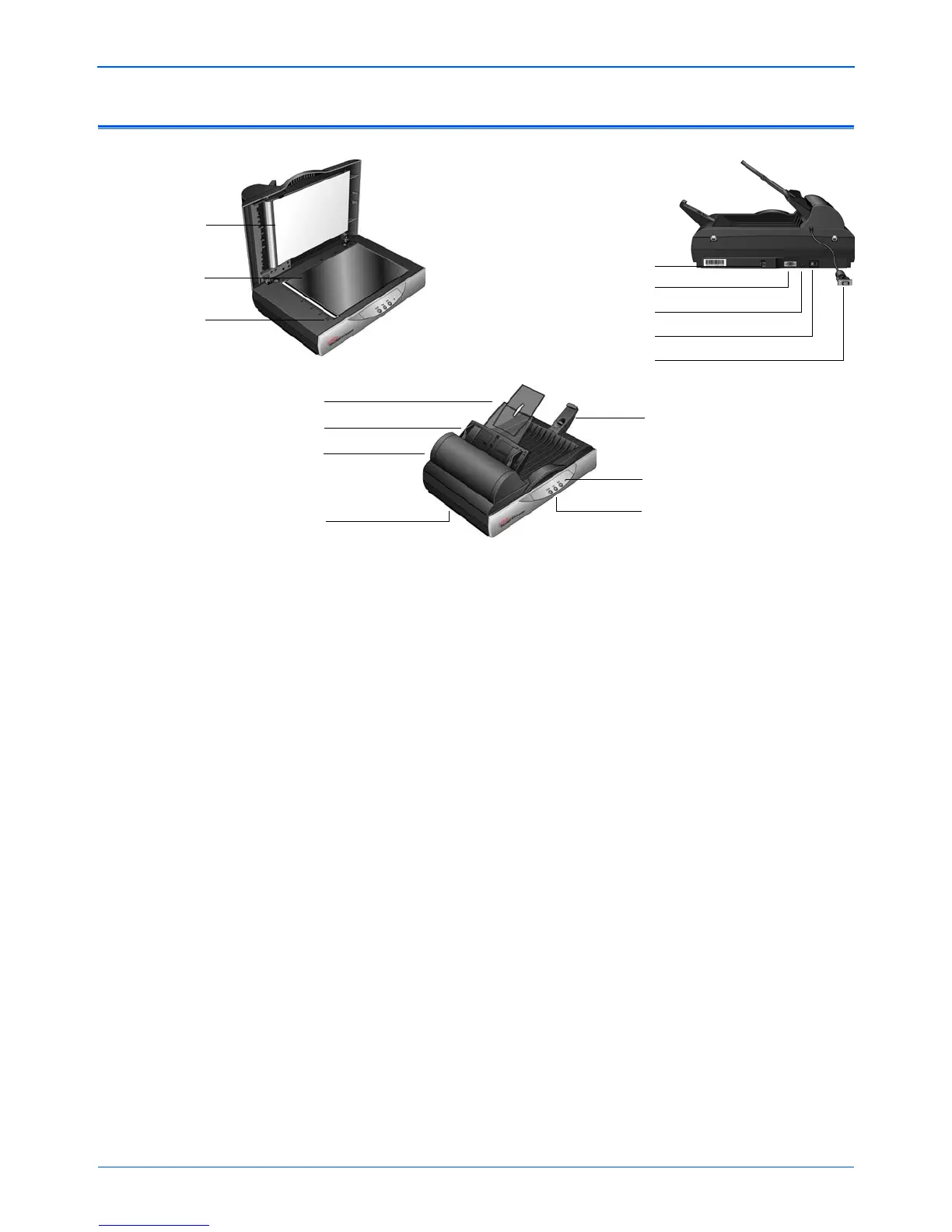

The Xerox DocuMate 515 Scanner
Document Pad—Holds documents in place on the scanner glass.
Flatbed Glass—Place document face down to scan.
Reference Frame—Reference marks indicating where to align various
paper sizes.
Paper Stop—Holds items in place as they are ejected from the Automatic
Document Feeder.
Automatic Document Feeder (ADF)—Feeds documents through the
scanner.
Paper Guide Extension—Unfolds to support multiple document lengths.
Paper Guides—Adjusts to fit the paper width.
Scanner Lock—Locks or unlocks the scanning head.
Scanner Buttons—Press to start scanning.
Status Light—Shows the scanner’s status. Refer to “Error Light
Troubleshooting Codes” on page 81 for additional details.
Universal Serial Bus (USB) Port—Connects the scanner to the
computer.
ADF Port—Connects the ADF cable from the Automatic Document
Feeder to the scanner body.
ADF Cable—Supplies power from the scanner body to the Automatic
Document Feeder.
Power Jack—Connects the power cord to the scanner.
Power Switch—Turns the power on and off.
Flatbed Glass
Document Pad
Reference Frame
ADF Cable
Power Jack
USB Port
ADF Port
Power Switch
Paper Stop
Paper Guide Extension
Paper Guide
Automatic Document Feeder
Scanner Buttons
Scanner Lock
Status Light

Xerox DocuMate 515 Specifications

General

Film scanning	No
Color scanning	Yes
Grayscale levels	65536
Input color depth	24 bit
Maximum scan size	216 x 356 mm
Scanner type	ADF scanner
Auto document feeder (ADF) input capacity	50 sheets
USB version	2.0
Standard interfaces	USB 2.0
Minimum RAM	512 MB
Minimum storage drive space	350 MB
Maximum duty cycle	75000 pages per month
Country of origin	China
Scan media weight	52 - 127 g/m²
Dimensions (WxDxH)	445 x 330 x 178 mm
Box depth (imperial)	19.7 \
Box width (imperial)	15.7 \
Box height (imperial)	4.9 \
Package width	398.779 mm
Package height	124.459 mm
Package length	500.379 mm
Package weight	3900.9 g
ISO A-series sizes (A0...A9)	A4

Weight and Dimensions

Depth	330 mm
Width	445 mm
Height	178 mm
Weight	5200 g
