Xerox DocuMate 515 User Manual

Maintenance
78 DocuMate 515 Scanner User’s Guide
Replacing the ADF Pad Assembly
The ADF pad may wear out and is designed to be a user-replaceable
part. Problems with documents feeding into the ADF is an indication that
the pad is wearing out.
You received a replacement pad in the original scanner box, and you can
also order a new one. See the “Xerox DocuMate 515 Parts List” on
page 85 for ordering information.
To replace the ADF Pad assembly:

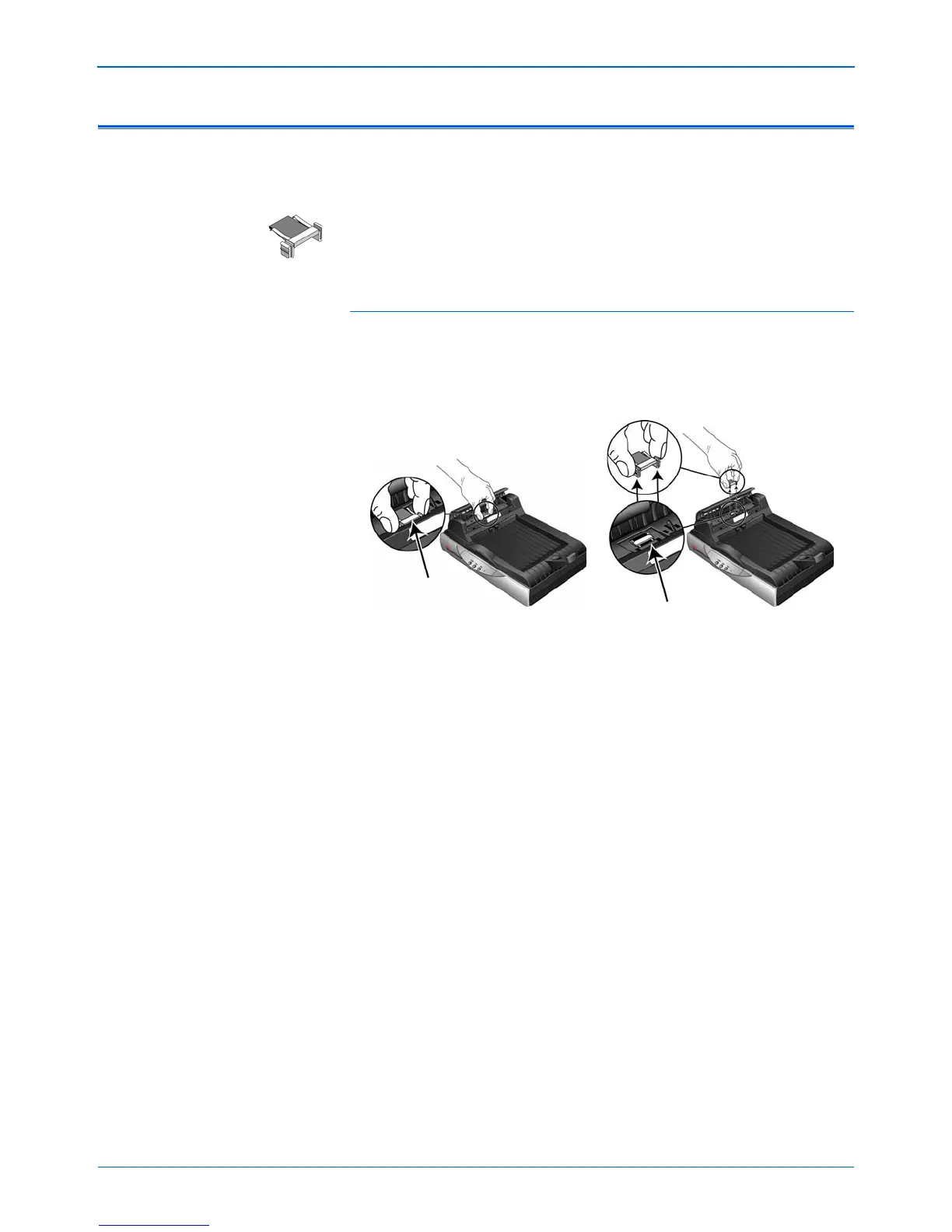

1. Open the ADF cover. The pad assembly is located inside the ADF.
2. Squeeze the plastic clamps that hold the pad assembly in place and
lift the pad up and out.
3. Reverse the procedure to replace the new pad into its slots.
4. Close the cover when you’re finished.

Xerox DocuMate 515 Specifications

General

Film scanning	No
Color scanning	Yes
Grayscale levels	65536
Input color depth	24 bit
Maximum scan size	216 x 356 mm
Scanner type	ADF scanner
Auto document feeder (ADF) input capacity	50 sheets
USB version	2.0
Standard interfaces	USB 2.0
Minimum RAM	512 MB
Minimum storage drive space	350 MB
Maximum duty cycle	75000 pages per month
Country of origin	China
Scan media weight	52 - 127 g/m²
Dimensions (WxDxH)	445 x 330 x 178 mm
Box depth (imperial)	19.7 \
Box width (imperial)	15.7 \
Box height (imperial)	4.9 \
Package width	398.779 mm
Package height	124.459 mm
Package length	500.379 mm
Package weight	3900.9 g
ISO A-series sizes (A0...A9)	A4

Weight and Dimensions

Depth	330 mm
Width	445 mm
Height	178 mm
Weight	5200 g
