Xerox DocuMate 5445

Xerox
®
DocuMate
®
5445 / 5460
User’s Guide
186

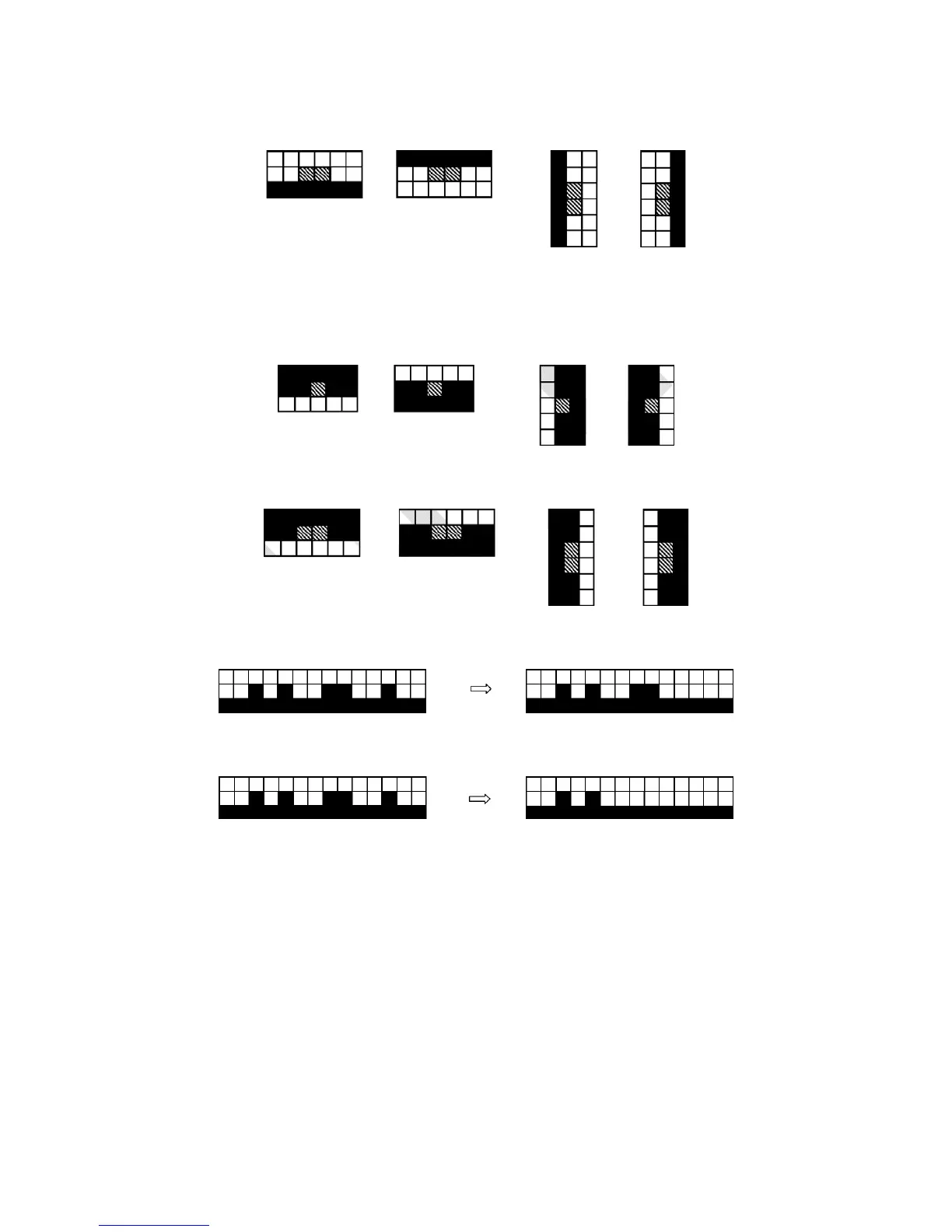

• Example – 2 dot pattern
1 and 2 dot white pixel removal pattern
Looks for 1 dot or 2 dots on the inside edge of a straight line and removes it (by changing the pixel to black).
• Example – 1 dot pattern
• Example – 2 dot pattern
Example – 1 dot black pixel removal
Example – 2 dot black pixel removal
Text Brightness
This option adjusts the brightness level for text areas when scanning using a Bit depth reduction mixed content
option. Raise or lower the brightness level based on the clarity of the text in the original documents. For instance, if
you want light colored text to appear darker in the final image, lower the brightness level.
This option will be disabled until one of these options is selected in the Bit depth reduction list:
• Threshold – Diffusion
• Threshold – Bayer
• Threshold – Halftone
If your scanner does not support this feature it will not appear in the interface.
