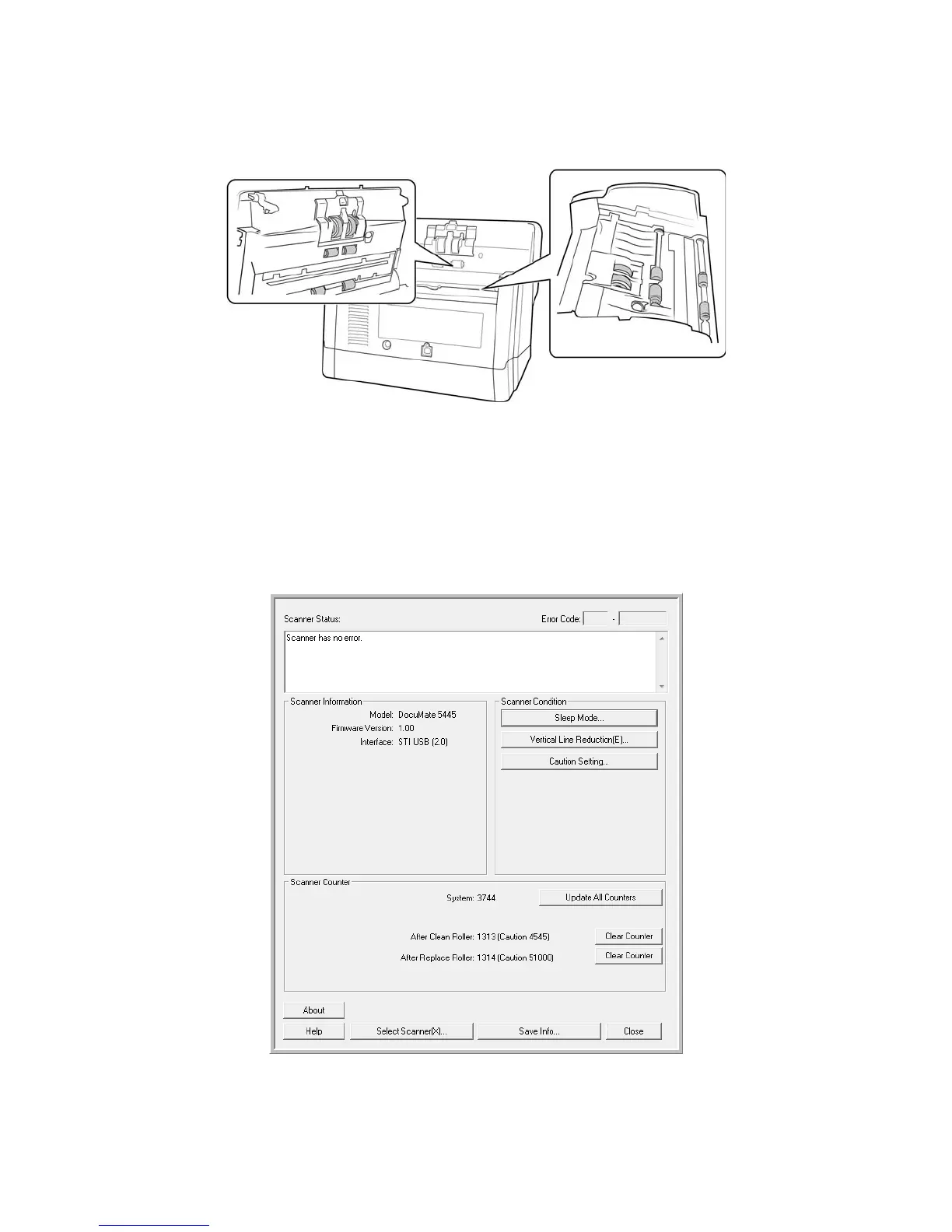

2. The following illustration shows where the rollers are located in the scanner. Use a roller cleaning paper to
clean all of the rollers indicated in the illustration.
3. After cleaning the scanner you need to reset the roller count in the User Utility. From the main screen click on
Clear Counter next to the field After Clean Roller.
4. The clean roller count will now be reset to 0.
5. Close the User Utility.
Note: Be careful when cleaning the rollers. All of the rollers, except the free rollers, are designed to rotate in one
direction only. Do NOT force the roller to rotate in the opposite direction. Forcing the roller to rotate will damage it,
and cause the scanner to feed pages incorrectly.
