Xerox DocuMate 5445

Xerox
®
DocuMate
®
5445 / 5460
User’s Guide
211
4. Close the roller cover. Press gently on both sides of the roller cover until it clicks into place.
When you are done replacing the roller, manually rotate the roller in the direction it feeds the paper to verify that
the roller is installed correctly.

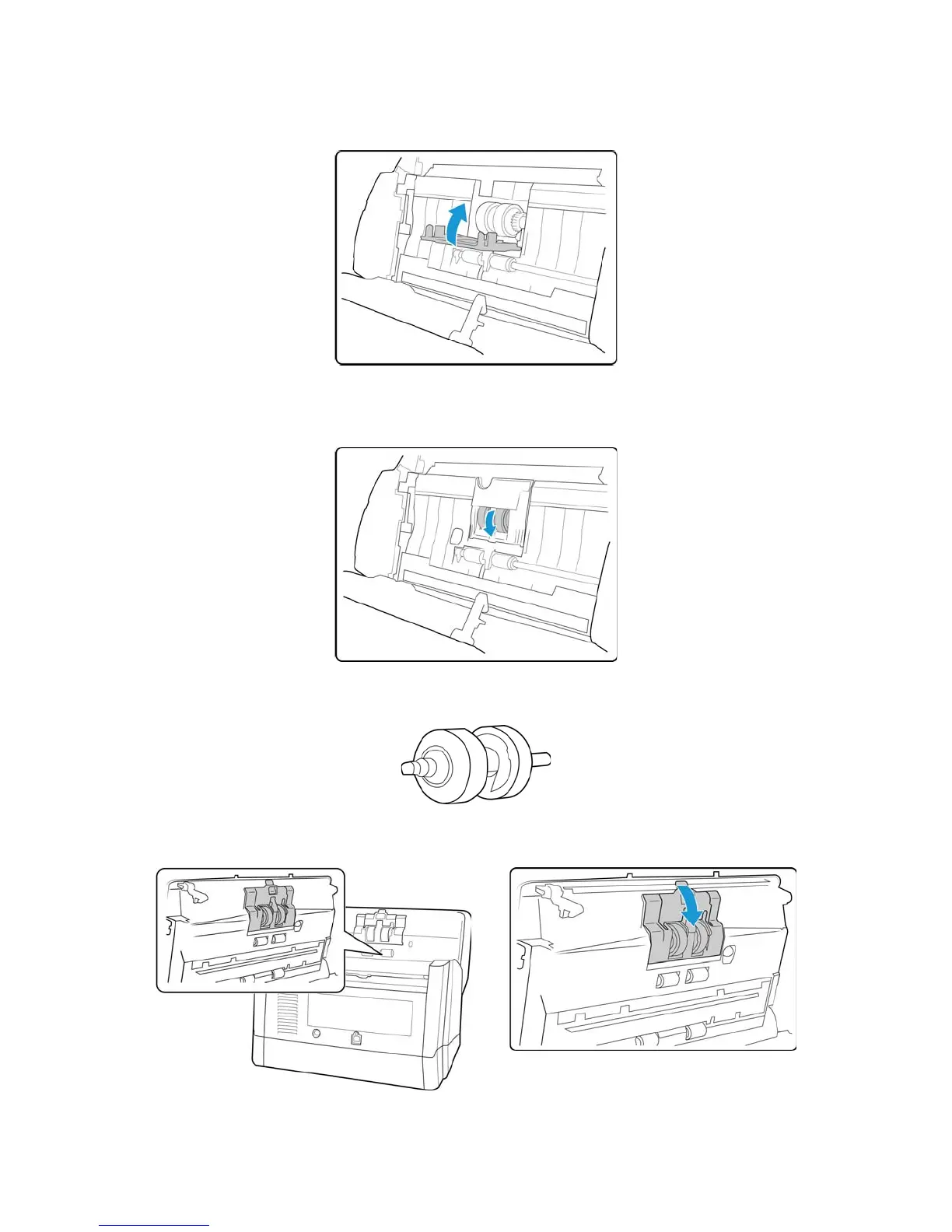

Replacing the Double Feed Prevention Roller
1. Locate the roller in the ADF door and pull open the roller cover.
