52 5 Troubleshooting

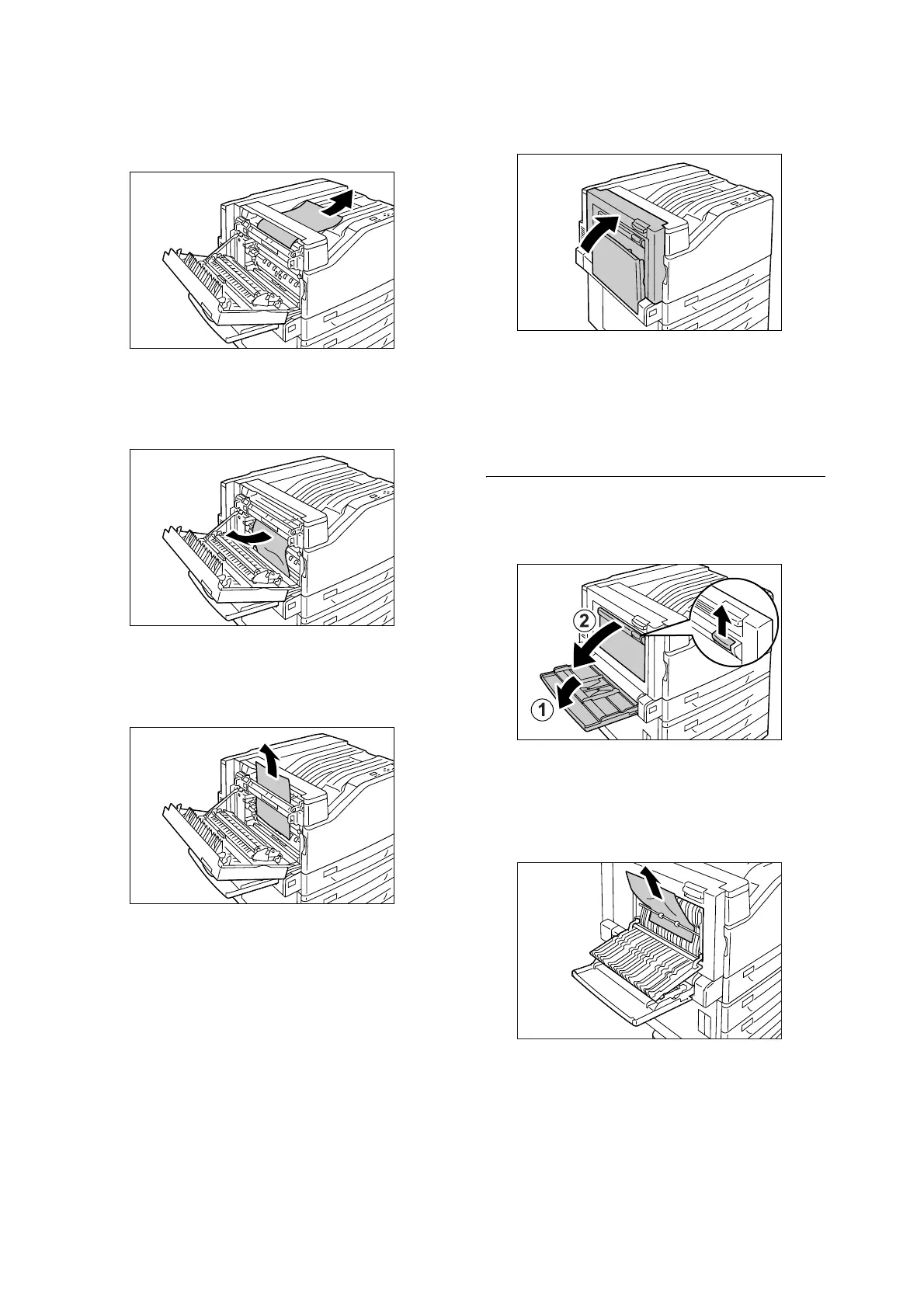

2. If the edge of the jammed paper is coming
out in the direction of the center tray, pull the
paper straight out in the output direction.
3. Remove the jammed paper inside cover A.
If the paper is torn, check to make sure that
there are no pieces of paper left inside.
4. If paper is jammed above or below the fuser
unit, remove the paper by pulling it straight
upwards.
Important
• The fuser unit is hot. Do not touch it. Touching the fuser
unit may cause a burn.
5. Press the center of cover A and gently close
it. Next raise the bypass tray.
Important
• When closing a cover, be careful not to get your fingers
caught between the cover and the printer.
Paper Jam Inside Cover B
(Optional Duplex Unit Installed)
1. Lower the bypass tray and then gently open
cover B.
2. Pull the jammed paper straight upwards to
remove it.
If the paper is torn, check to make sure that
there are no pieces of paper left inside.
To Next Page
