80 6 Replacing Consumables

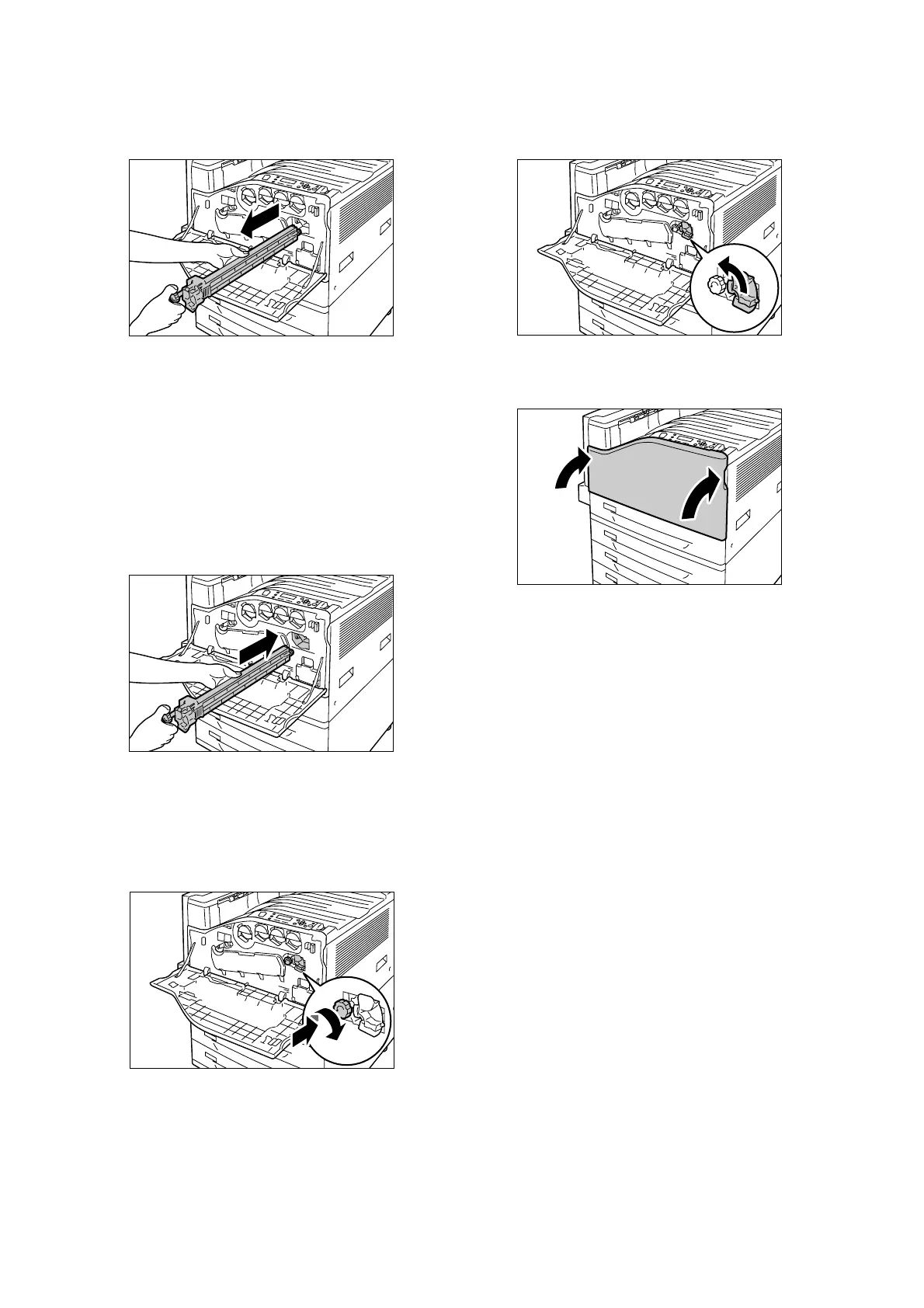

4. Pull out the transfer belt cleaner with both
hands and lower it to remove it.
Important
• When pulling out the transfer belt cleaner, grasp it with
both hands so you do not drop it.
• Never stand the used transfer belt cleaner on end.
• Wrap the used transfer belt cleaner in the plastic sheet
that comes with the new transfer belt cleaner. Then
insert the used cleaner into the plastic bag that comes
with the new transfer belt cleaner.
5. Remove the new transfer belt cleaner from
its packaging, and insert it into the printer.
Important
• Insert the transfer belt cleaner as far as it will go.
6. While pressing the knob, tighten it to secure
the transfer belt cleaner in place.
7. Rotate the transfer belt cleaner cover to the
left to close it.
8. Close the front cover.
To Next Page
