8-12 Phaser 3140/3155/3160 Printer Service Manual
Service Parts Disassembly

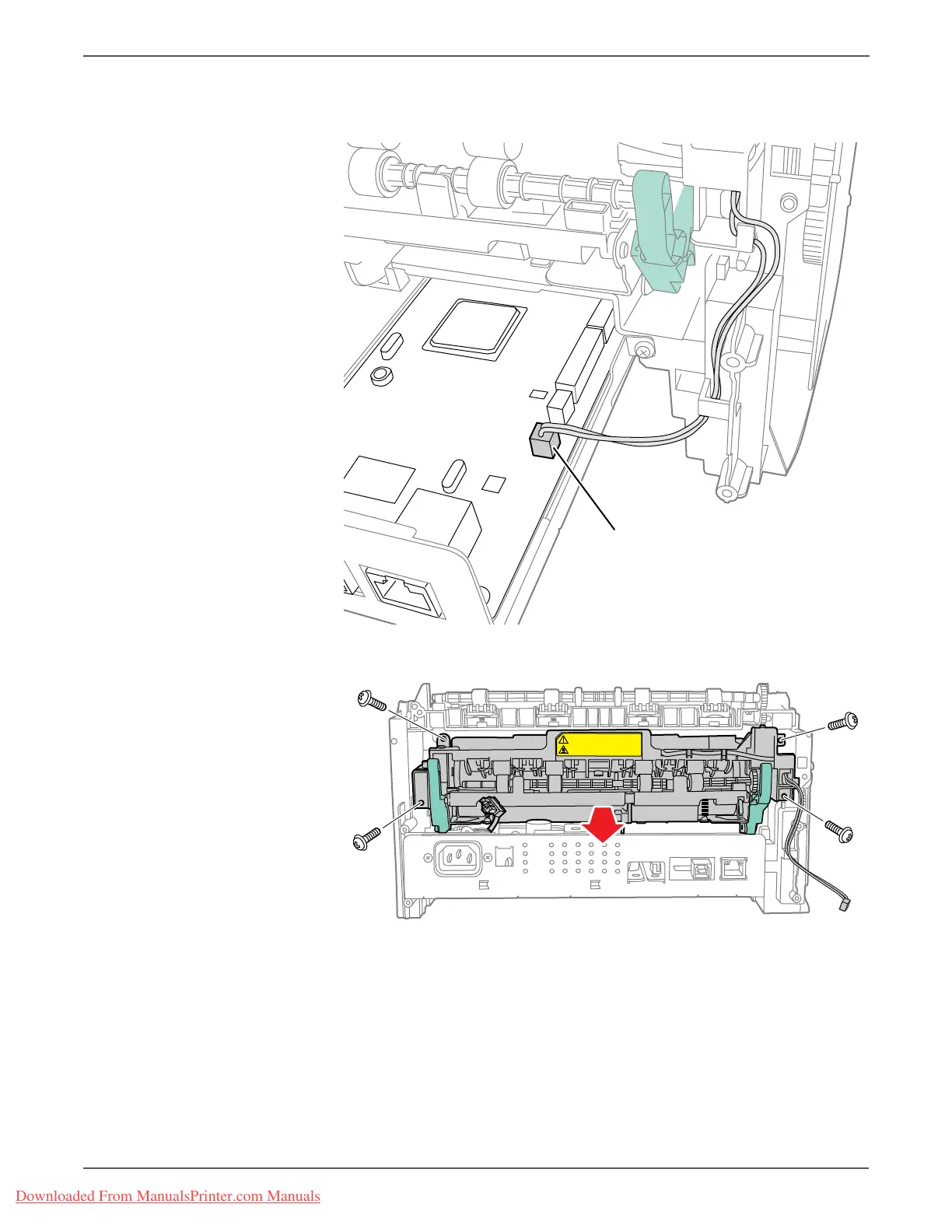

3. Remove the Fuser Thermistor cable from the Controller Board. The connector
number varies depending on your printer model. See the following illustration.
4. Remove 4 screws (10 mm, silver, tap) securing the Fuser.
5. Pull the Fuser out of the printer.
3160: CN8
3155: CN12
3140: CN12
s3160-048
