Xerox Phaser 3155

8-16 Phaser 3140/3155/3160 Printer Service Manual
Service Parts Disassembly

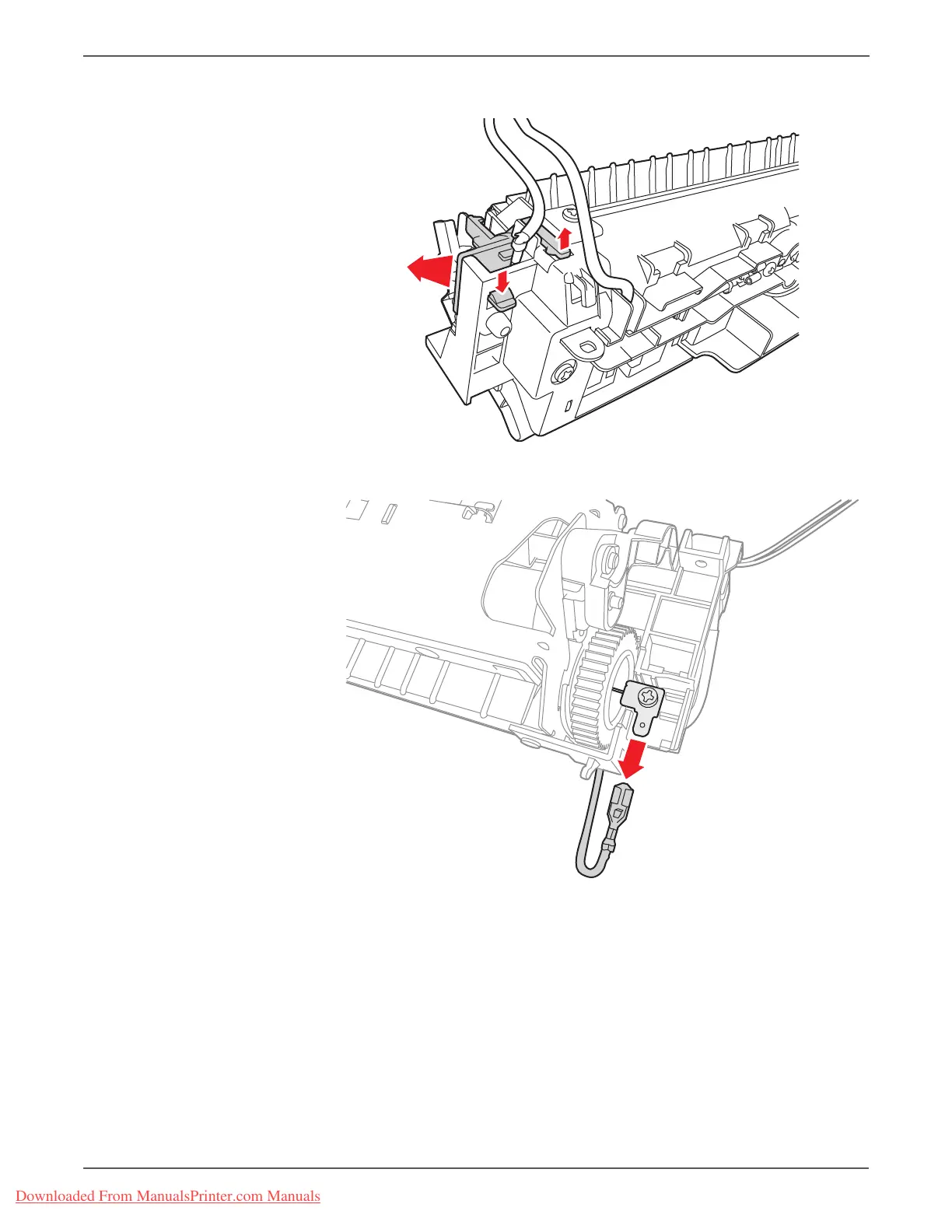

3. Release the 3 tabs on the left Fuser lamp cap and remove the cap.
4. Disconnect the lamp wires on both sides of the Fuser.
s3160-106
s3160-055
