Troubleshooting
Phaser 6140 Color Laser Printer
User Guide
141

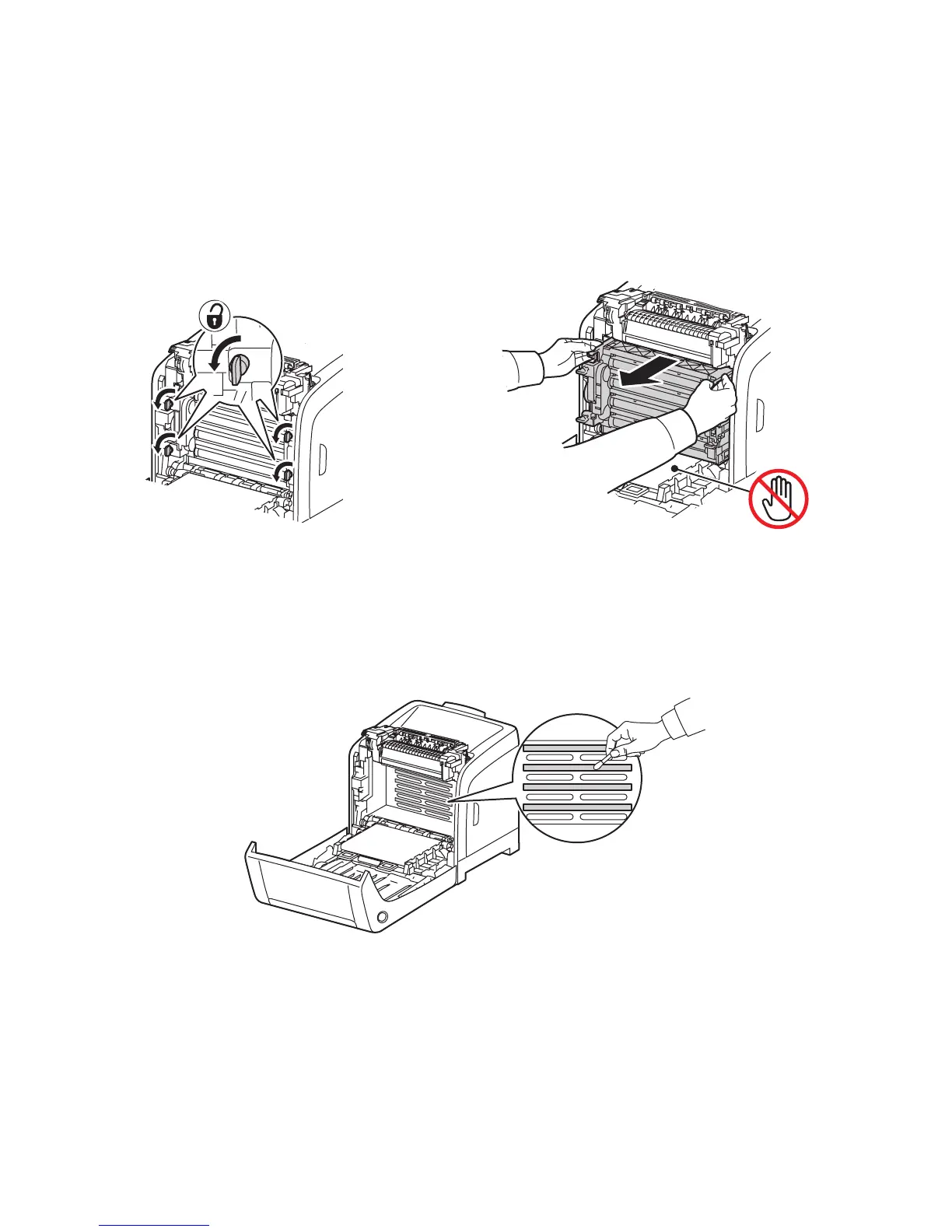

7. Remove the imaging unit:
Caution: Do not drop or shake the imaging unit after removal because toner can spill from it.
Caution: Do not expose the imaging unit to any light source for more than five minutes. Prolonged
exposure to light may damage the unit. Cover the imaging unit while it is exposed. Do not touch
the shiny blue transfer belt unit. For details, see Internal Components on page 20 for location.
a. Turn the four peach-colored twist-locks to the left to unlock the imaging unit.
b. Grasp the imaging unit by its peach-colored pull tabs on the top edge and then pull the unit
forward and up out of the printer.
c. Place the imaging unit on a flat surface and cover it with a sheet of paper to minimize its
exposure to light.
8. Using a clean, dry, lint-free cloth or swab, clean all debris from the laser lens.
9. Check for and remove any debris around the imaging unit gears located on the left side of the unit.
4x
6140-025
6140-026
6140-042
To Next Page
