Troubleshooting
Phaser 6140 Color Laser Printer
User Guide
142

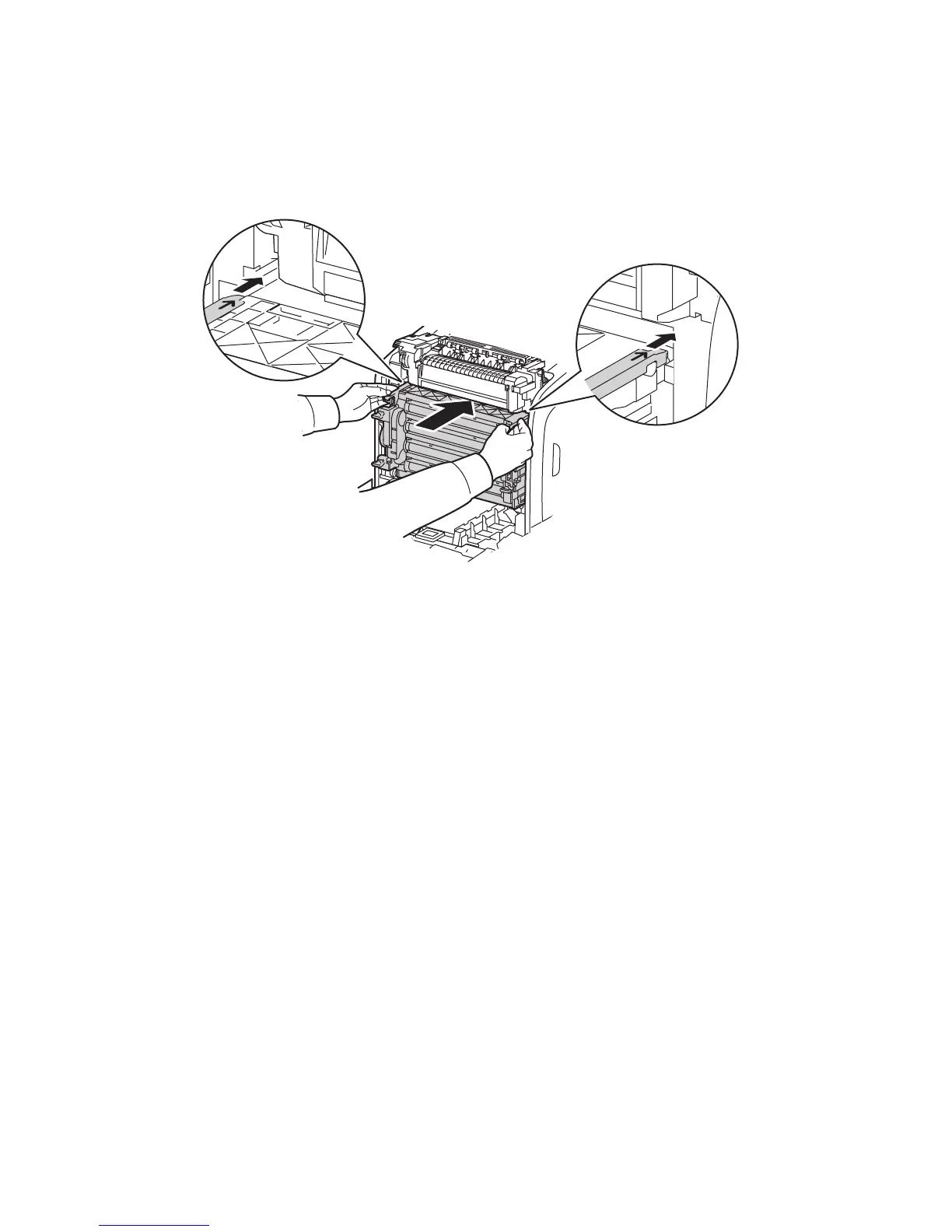

10. Reinstall the imaging unit:
a. Grasp the unit by its peach-colored pull-tabs on the top edge and install the unit in the printer.
Make sure to insert the unit into the guides in the printer and then push the unit all the way
back into the printer.
b. Turn the four twist-locks to the right to lock the unit.
11. Fold the transfer belt unit back into place and close the printer front cover.
6140-041
