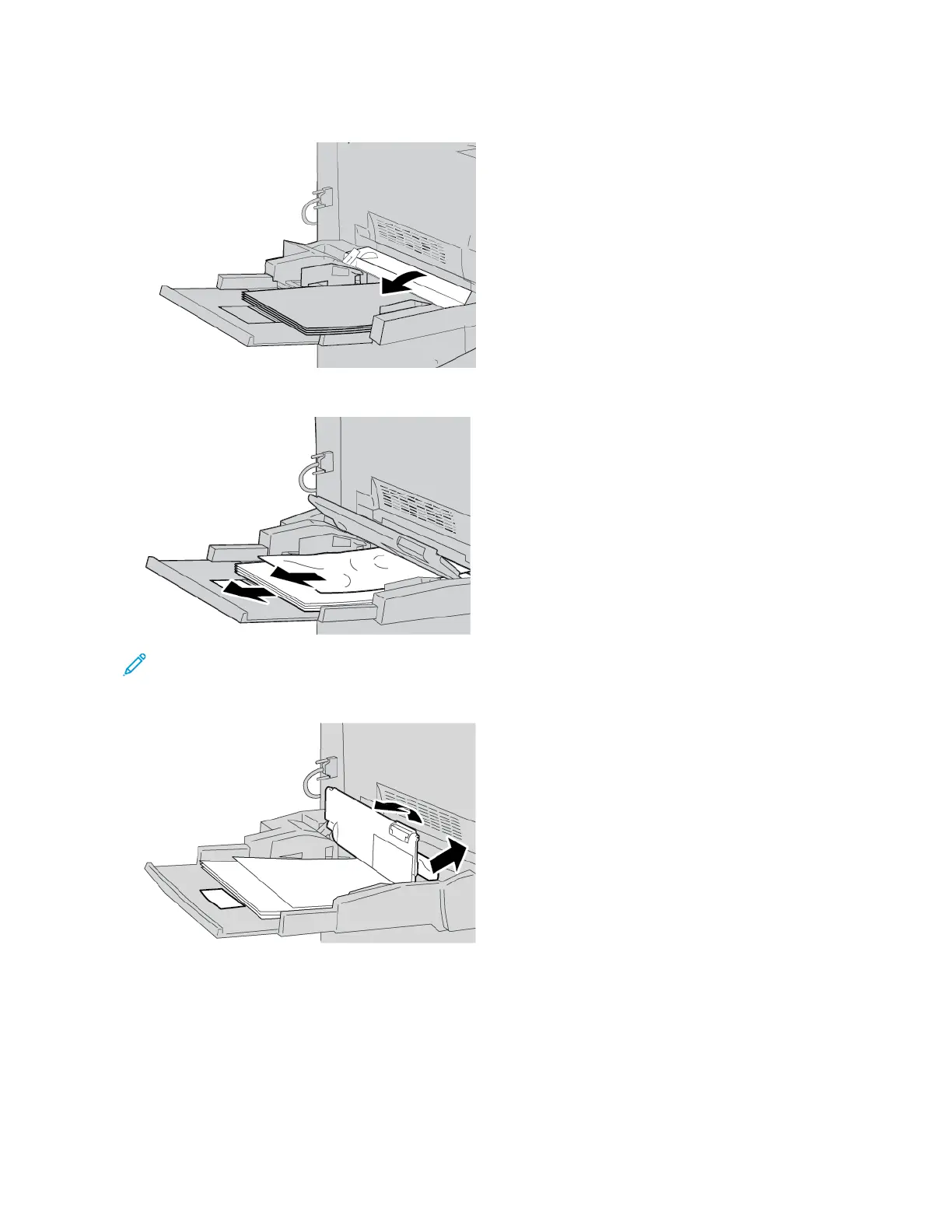

1.
Open
the
top
cover
of
T
ray
5
(Bypass).
2.
R
emove
the
jammed
paper
and
any
paper
that
is
loaded
from
the
Bypass
T
ray.
Note:
If
paper
is
torn,
check
inside
the
printer
and
remove
it.
3.
Open
the
tray
cover,
then
remove
the
jammed
paper.
