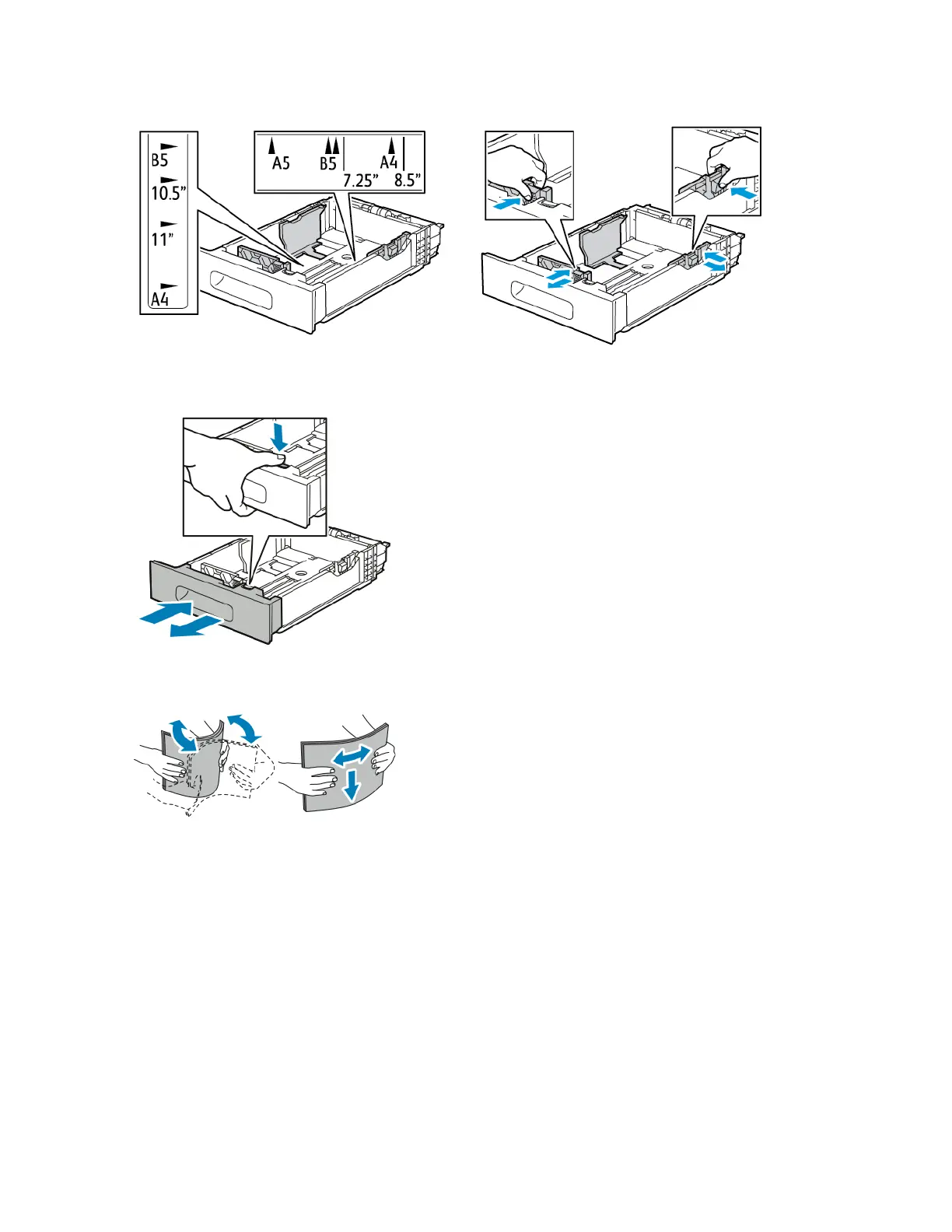

2. Adjust the paper length and width guides as illustrated.
3. For Legal-size paper, to extend the front of the tray, press the green release latch, then pull the tray
out.
4. Flex the sheets back and forth and fan them, then align the edges of the stack on a level surface.
This procedure separates any sheets that are stuck together and reduces the possibility of jams.
5. Load paper into the tray with the print-side face up.
• Load hole-punched paper with the holes to the left.
• Load label-sheets in the tray face up.
• For 1-sided printing, load letterhead paper face up with the top of the paper toward the back of
the tray.
• For 2-sided printing, load letterhead and pre-printed paper face down with the top edge feeding
into the printer.
Note
Do not load paper above the maximum fill line. Overfilling the tray can cause the printer to jam.
6-11Xerox
®
VersaaLink
®
B600/B610 Printer
User Guide
Paper and Media
