5. To compress the tray for shorter paper, with one hand, hold the back of the tray. With the other
hand, at the front of the tray, press the release latch, then push the ends inward until they latch.
6. Load paper into the tray, then insert it back into the printer. For details, see Loading Paper in Trays
1–4.
Loading Paper in Trays 1–4

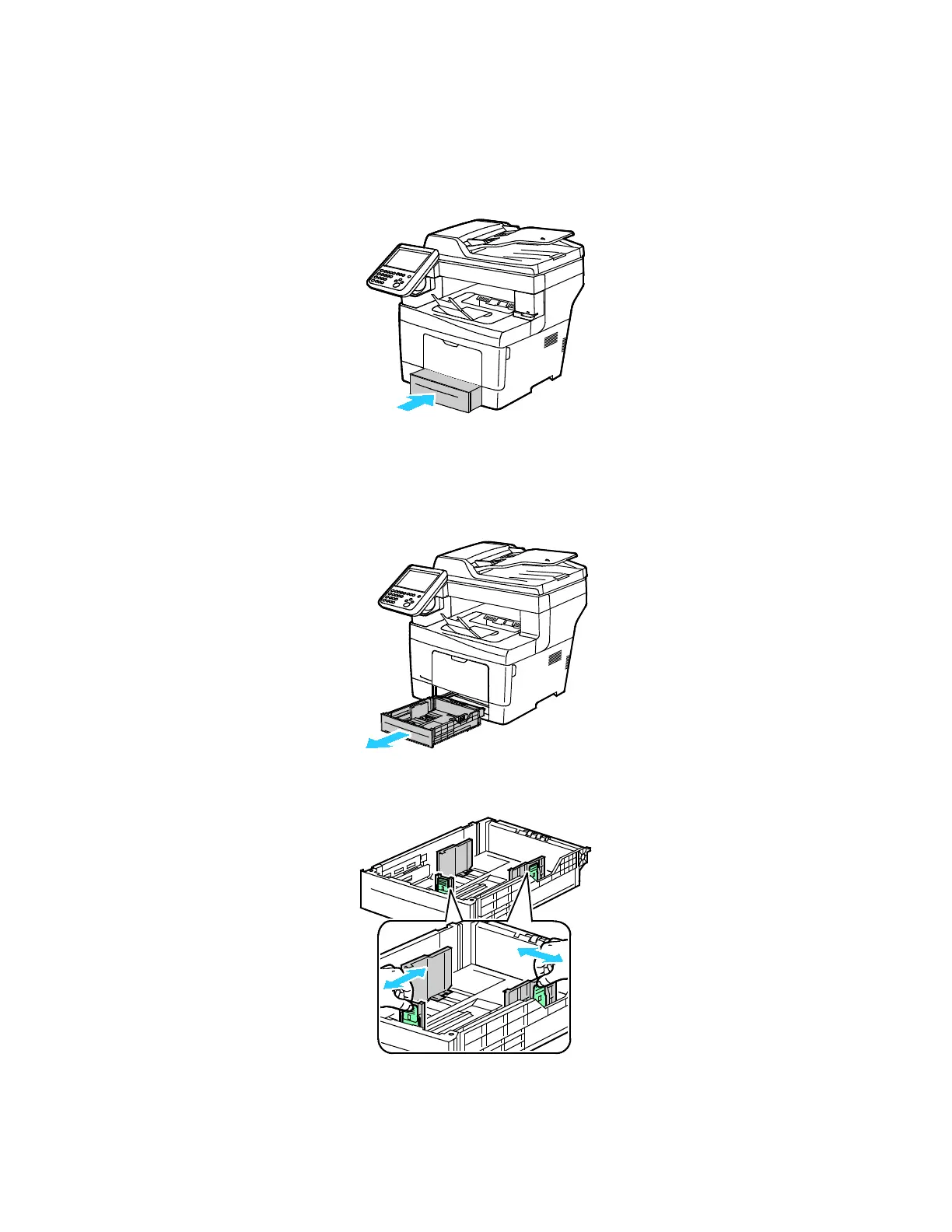

1. To remove the tray from the printer, pull out the tray until it stops, lift the front of the tray slightly,
then pull it out.
2. At the back of the paper tray, press the paper lift tray down until it locks.
3. Adjust the paper length and width guides as illustrated.
