Clearing Booklet Staple Jams in the Office Finisher LX
The stapler in the booklet maker uses two staple cartridges labeled R2 and R3. Booklet stapling requires
that both staple cartridges be free of jammed staples.
WARNING: Do not perform this procedure while the printer is copying or printing.

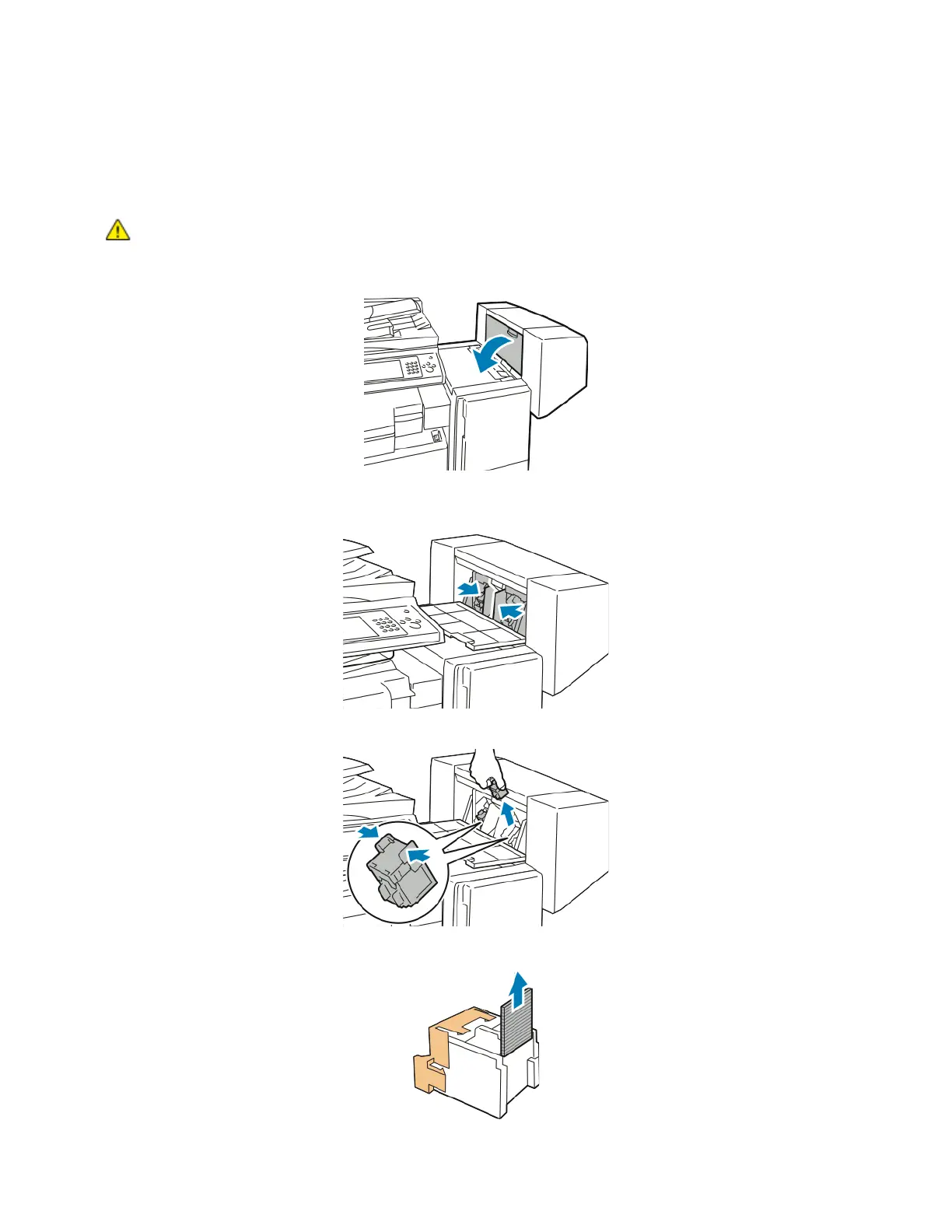

1. Open the finisher side cover.
2. If the staple cartridges are not visible, grip the vertical panels at the left and right of the opening and
slide them to the center.
3. Hold the tabs on both sides of the staple cartridge and pull the cartridge out of the finisher.
4. Remove the jammed staples by pulling them in the direction shown.
