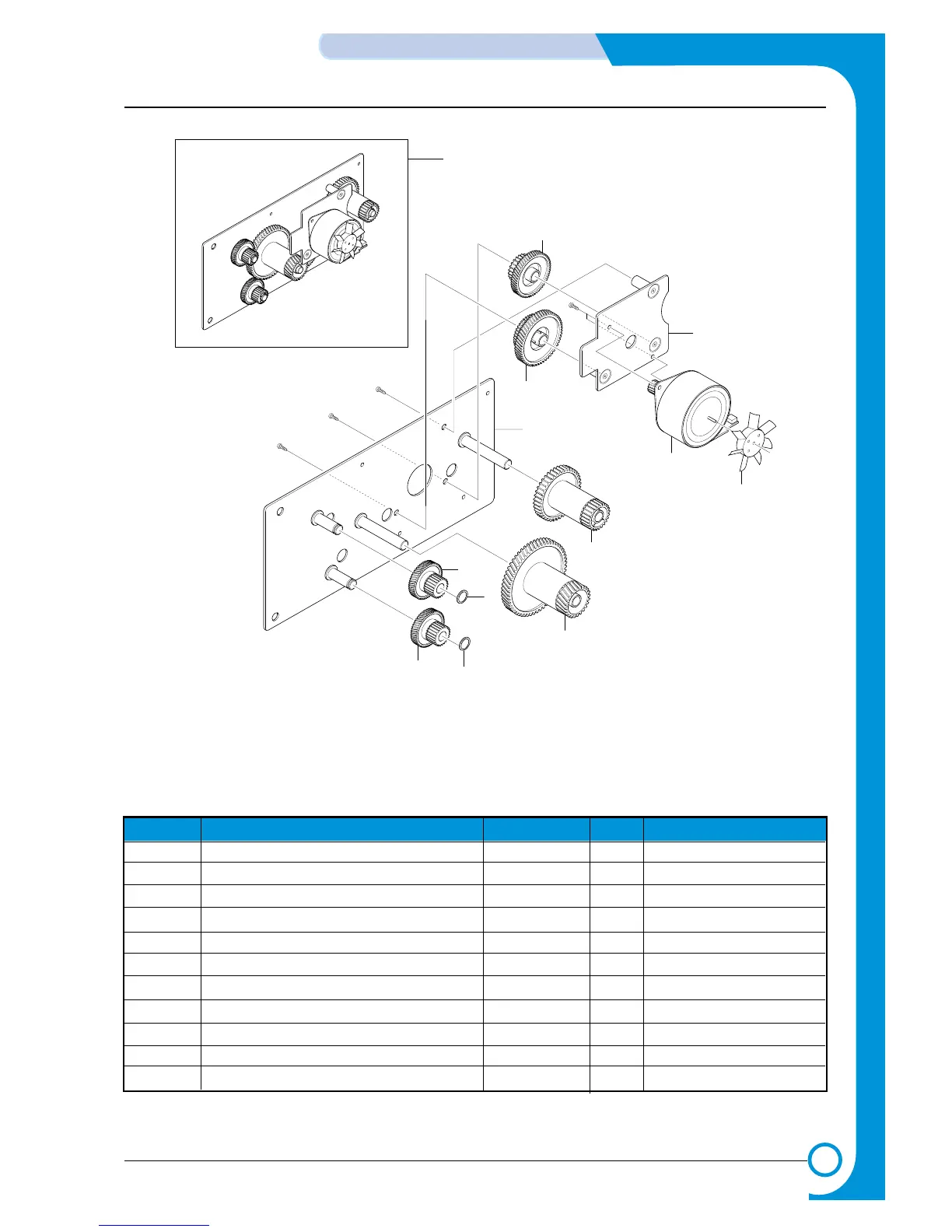

8.2 RX Drive Assembly
0
1
2
3
4
4
5
6
7
8
9
10
5
RX Drive Assembly Parts List
No. Description Part Number Q’ty Remark
0 ELA UNIT-RX DRIVE 126 N 00211 1
1 BRACKET-P-GEAR 1400 * 1 Not Spared
2 GEAR-RDCN 53/26 * 1 Not Spared
3 GEAR-RDCN 113/33 * 1 Not Spared
4 GEAR-RDCN 57/18 * 2 Not Spared
5 WASHER-PLAIN * 2 Not Spared
6 BRACKET-P-MOTOR 1400 * 1 Not Spared
7 GEAR-RDCN 103/41 * 1 Not Spared
8 GEAR-RDCN 90/31 * 1 Not Spared
9 MOTOR STEP-HUMMINGBIRD * 1 Not Spared
10 PMO-IMPELLER_DRV * 1 Not Spared
8-5
EXPLODED VIEW & PA RTS LIST
Service Manual
WorkCentre PE16 June 2003
