Xerox WorkCentre PE16 Service Manual

8-14
EXPLODED VIEW & PA RTS LIST
Service Manual
June 2003 WorkCentre PE16

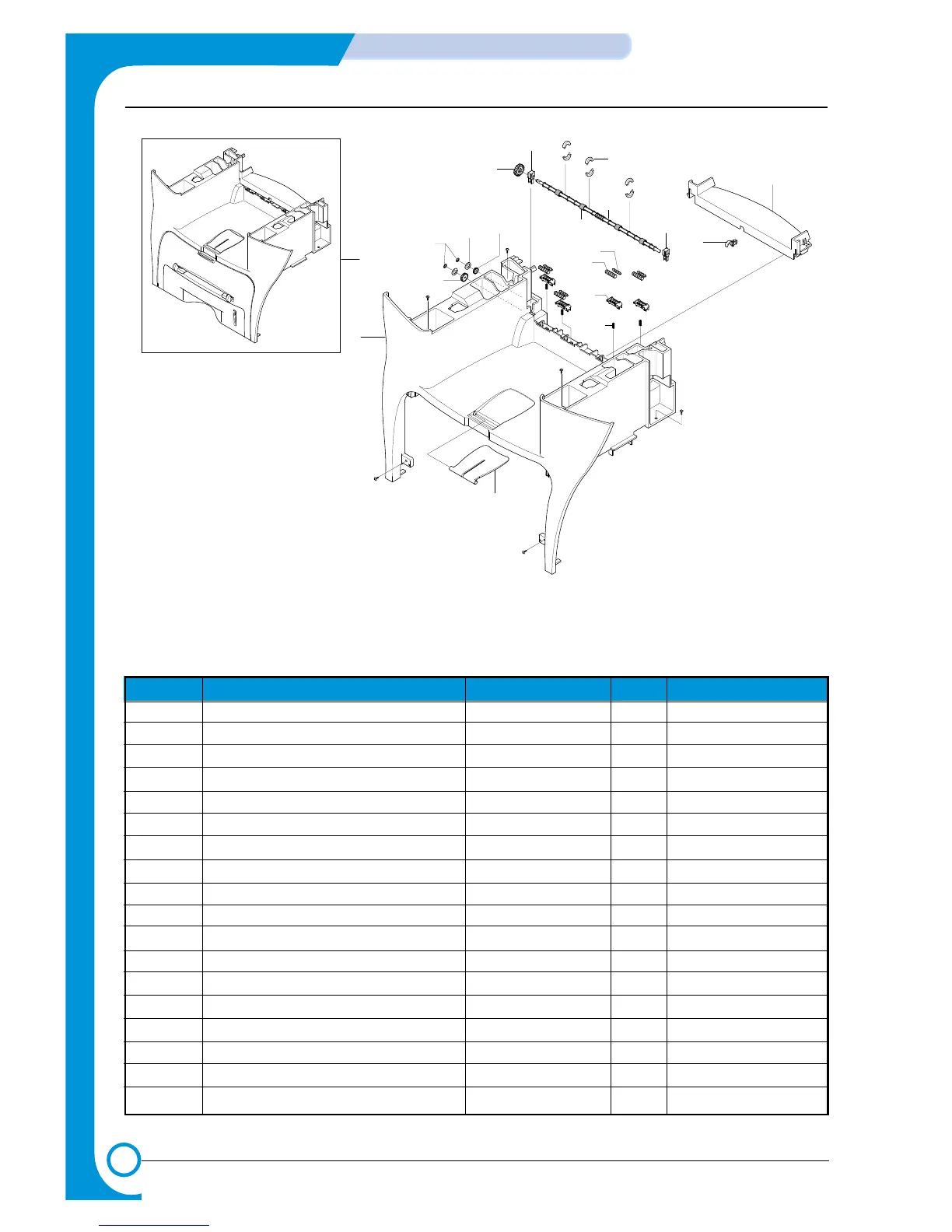

8.6 Middle Cover Assembly
1
2
6
7
16
7
9
8
10
17
11
13
12
14
5
0
3
4
15
Middle Cover Assembly Parts List
No. Description Part Number Q’ty Remark
0 MEA UNIT-COVER MIDDLE 101 N 01334 1
1 COVER-M-MIDDLE * 1 Not Spared
2 PMO-STACKER_RX(XEROX) * 1 Not Spared
3 RING-CS * 2 Not Spared
4 GEAR-IDLE 23 * 1 Not Spared
5 PMO-GEAR_EXIT_DRV16 * 1 Not Spared
6 GEAR-EXIT F/DOWN * 1 Not Spared
7 MEC-BEARING,EXIT 013 N 13802 2
8 ROLLER-EXIT F/DOWN * 1 Not Spared
9 RMO-RUBBER EXIT * 4 Not Spared
10 PMO-BUSHING_F/DOWN * 1 Not Spared
11 SPRING-CS * 4 Not Spared
12 HOLDER-M-EXIT F/DOWN * 4 Not Spared
13 PMO-ROLLER_EXIT,MAIN * 4 Not Spared
14 PMO-ROLLER_EXIT,FR * 4 Not Spared
15 WASHER-PLAIN * 2 Not Spared
16 COVER-M-REAR UPPER * 1 Not Spared
17 ROLLER-M_DECURL * 6 Not Spared
