Xerox WorkCentre PE16 Service Manual

5-5
Disassembly and Reassembly
Service Manual
WorkCentre PE16 July 2003

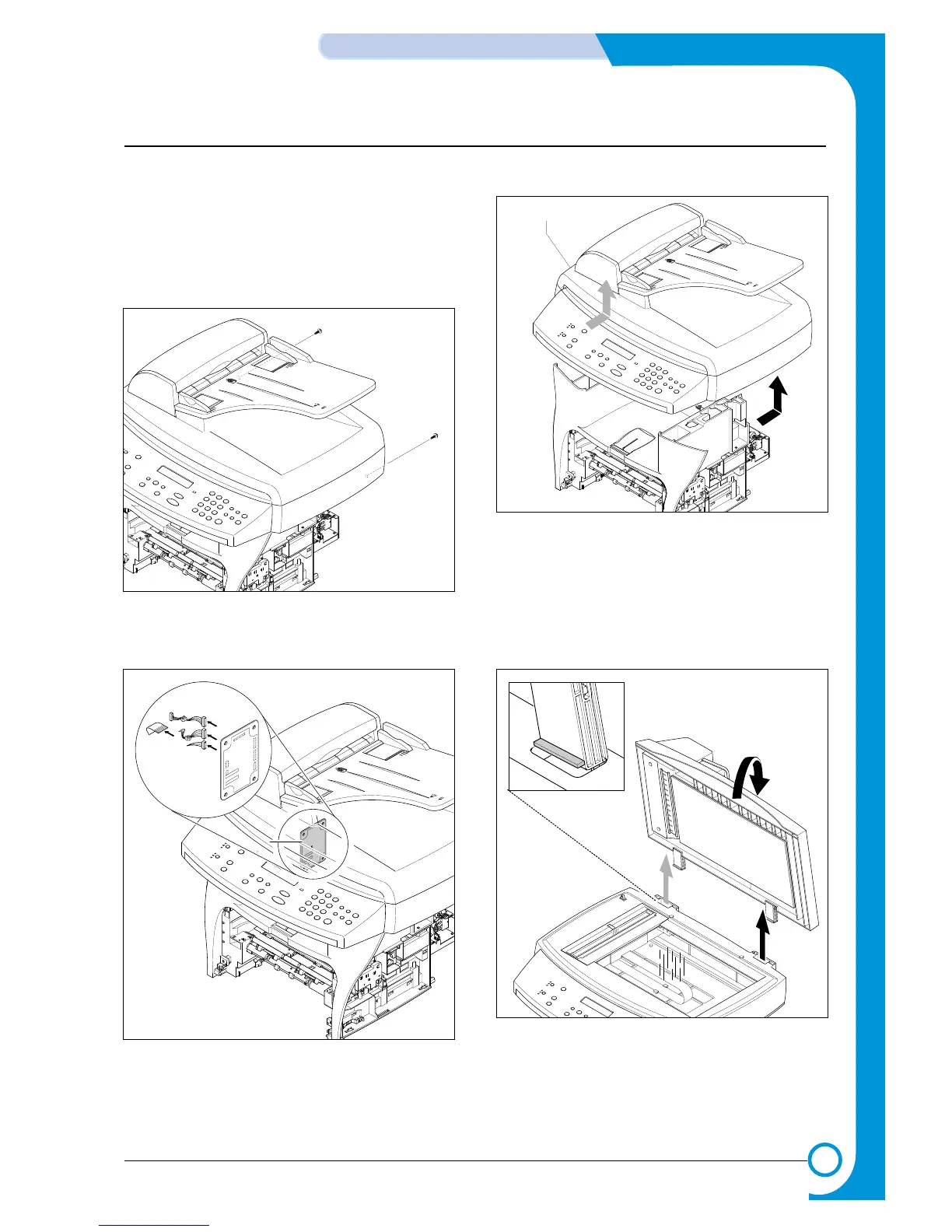

5.5 Scanner Ass'y
1. Before you remove the Scanner Ass'y, you should
remove:
- Rear Cover (see page 5-2)
- Side Cover (LH, RH) (see page 5-3)
2. Remove the two screws securing the Scanner Ass'y,
as shown below.
3. Unplug the four connectors from the Connector PBA ,
as shown below, and remove the ground wire. Platen Cover upward and remove it.
4. Pull up the Scanner Ass'y, as shown below.
5. Disconnect the cover wiring harness then pull the
Connection BoardConnection Board
Scanner Ass’y
