5-6
Disassembly and Reassembly
Service Manual
July 2003 WorkCentre PE16

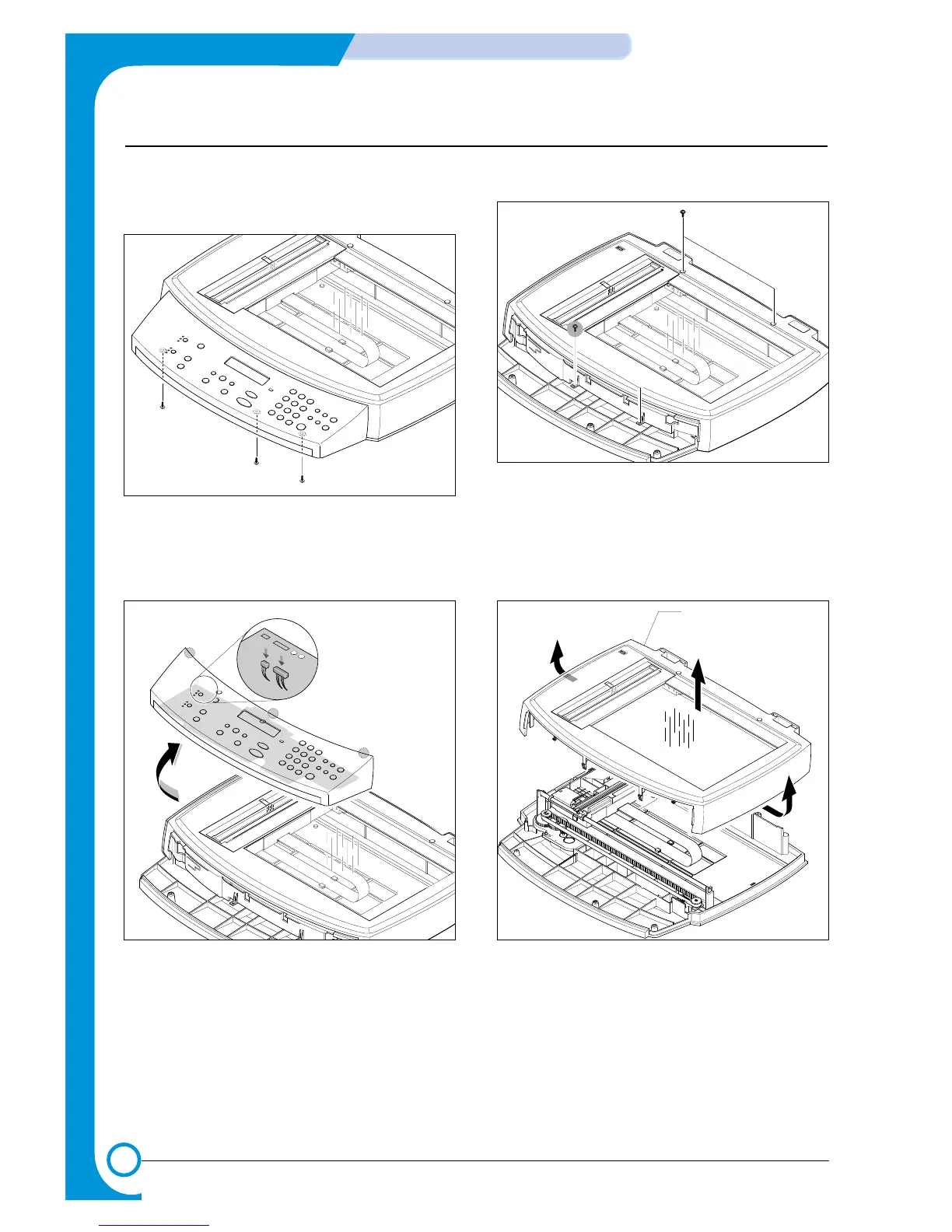

6. Remove the three screws securing the Scan Ass’y.
7. Lift the OPE Unit out. Then unplug the two connec-
tors from the OPE Unit and remove it.
8. Remove the four screws securing the Scan Upper.
9. Unlatch the Scan Upper securing the Scan Ass’y
Then pull the Scan Upper upward and remove it.
Scan Upper
