Xerox WorkCentre PE16 Service Manual

5-11
Disassembly and Reassembly
Service Manual
WorkCentre PE16 July 2003

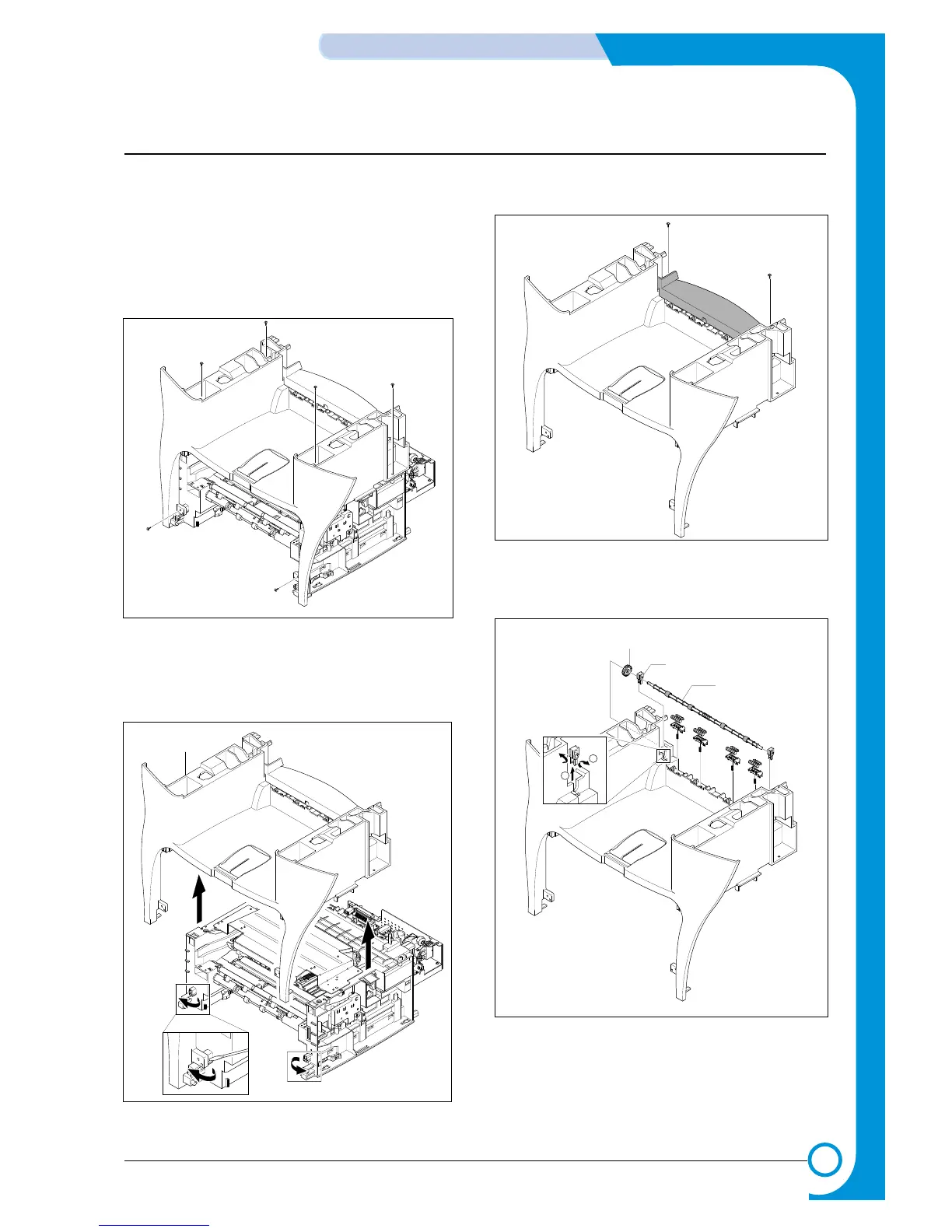

5.8 Middle Cover & Exit Roller
1. Before you remove the Exit Roller, you should
remove:
- Rear Cover (see page 5-2)
- Front Cover Ass’y (see page 5-4)
- Side Cover (LH, RH) (see page 5-3)
- Scanner Ass’y (see page 5-5)
2. Remove the six screws securing the Middle Cover.
3. Unlatch the Middle Cover Securing the Frame Ass'y,
using a proper tool as shown below. Then lift the
Middle Cover out.
4. Remove the two screws securing the Rear-Upper
Cover, as shown below
5. Remove the Exit Gear, Bearing and Exit Roller as
shown below.
Exit Gear
1
Bearing
Exit Roller
2
Middle Cover
