Xerox WorkCentre PE16 Service Manual

5-12
Disassembly and Reassembly
Service Manual
July 2003 WorkCentre PE16

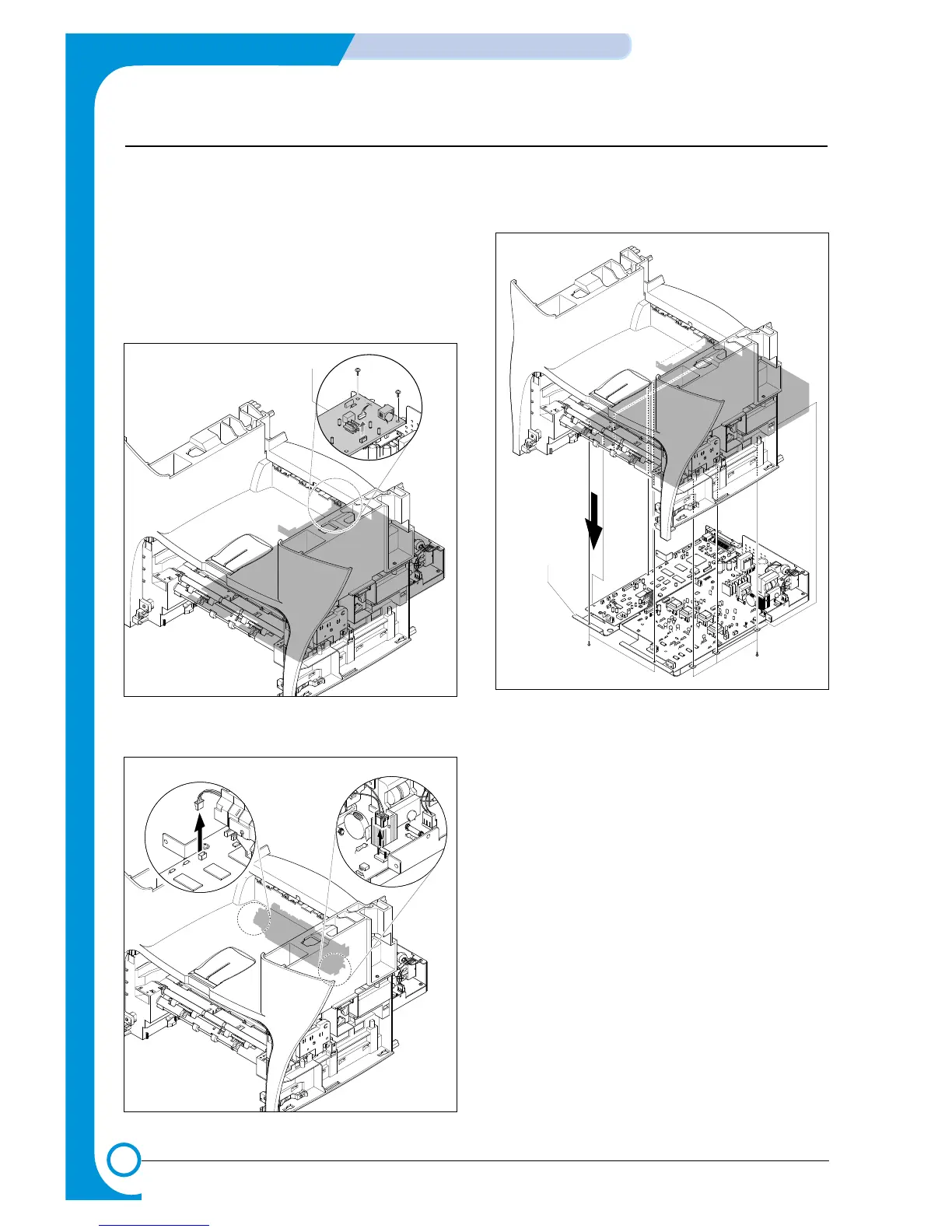

1. Before you remove the Engine Shield Ass'y, you
should remove:
- Rear Cover (see page 5-2)
- Side Cover(LH, RH) (see page 5-3)
- Scanner (see page 5-5)
2. Remove the two screws securing and unplug the FPC
cable From the Main PBA. Then remove the LIU PBA
3. Unplug the two connectors.
4. Remove the ten screws securing the Engine Shield
Ass'y and remove it. Then unplug the all the connec-
tors from the Main PBA and SMPS.
Engine Shield
Ass’y
LIU PBA
Fan Connector
Thermistor connector
5.9 Engine Shield Ass’y
