5-19
Disassembly and Reassembly
Service Manual
WorkCentre PE16 July 2003
1. Before you remove the Transfer Ass'y, you should
remove:
- Rear Cover (see page 5-2)
- Side Cover (LH, RH) (see page 5-3)
- Scanner Ass’y (see page 5-5)
- Front Cover (see page 5-4)
- Middle Cover (see page 5-11)
- LSU (see page 5-18)

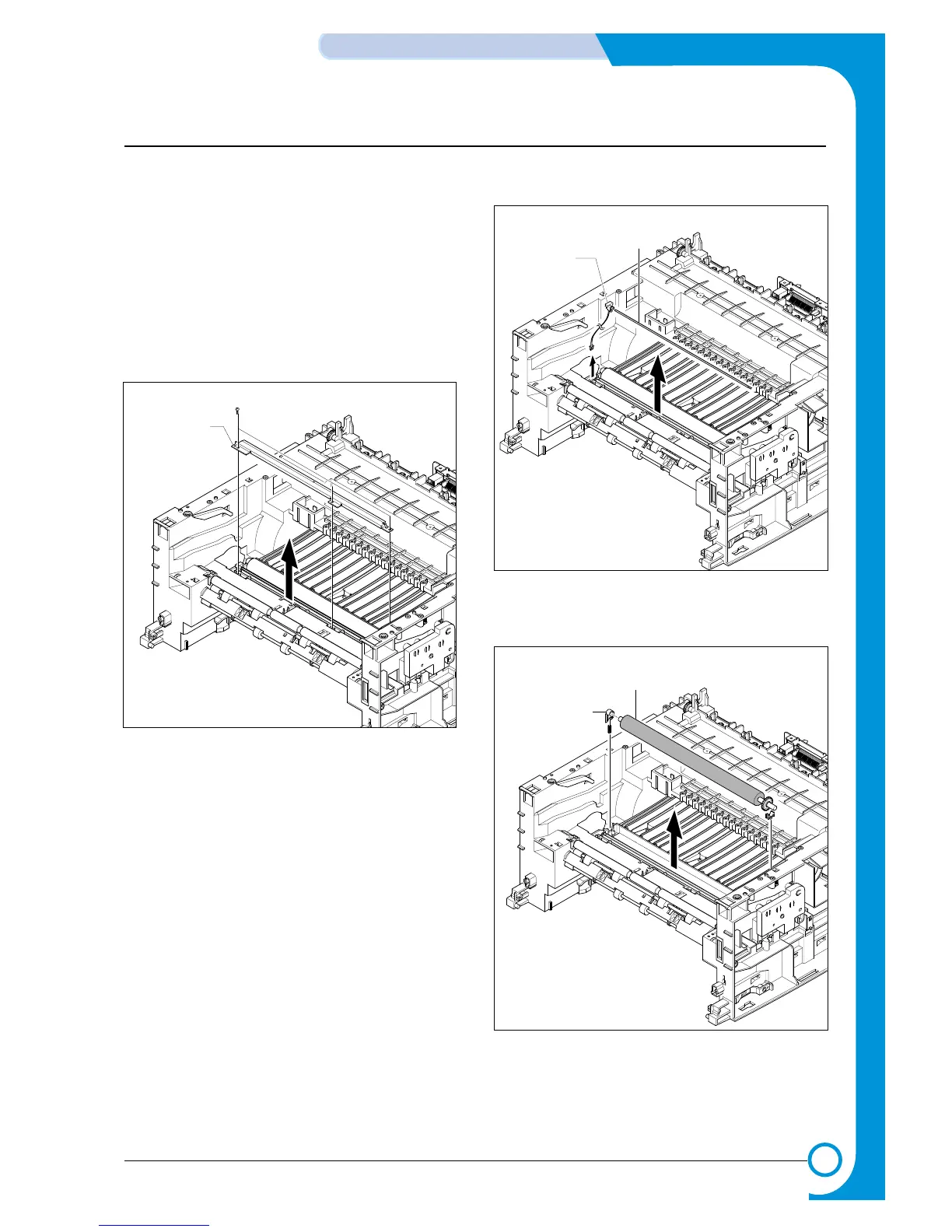

2. Remove the three screws securing the Transfer Earth
and remove it.
3. Unplug the PTL Holder connector, then remove the
PTL Holder and PTL Lens, as shown below.
4. Unlatch the Bushing and remove it. Then lift the
Transfer Roller out, as shown below.
To Next Page
