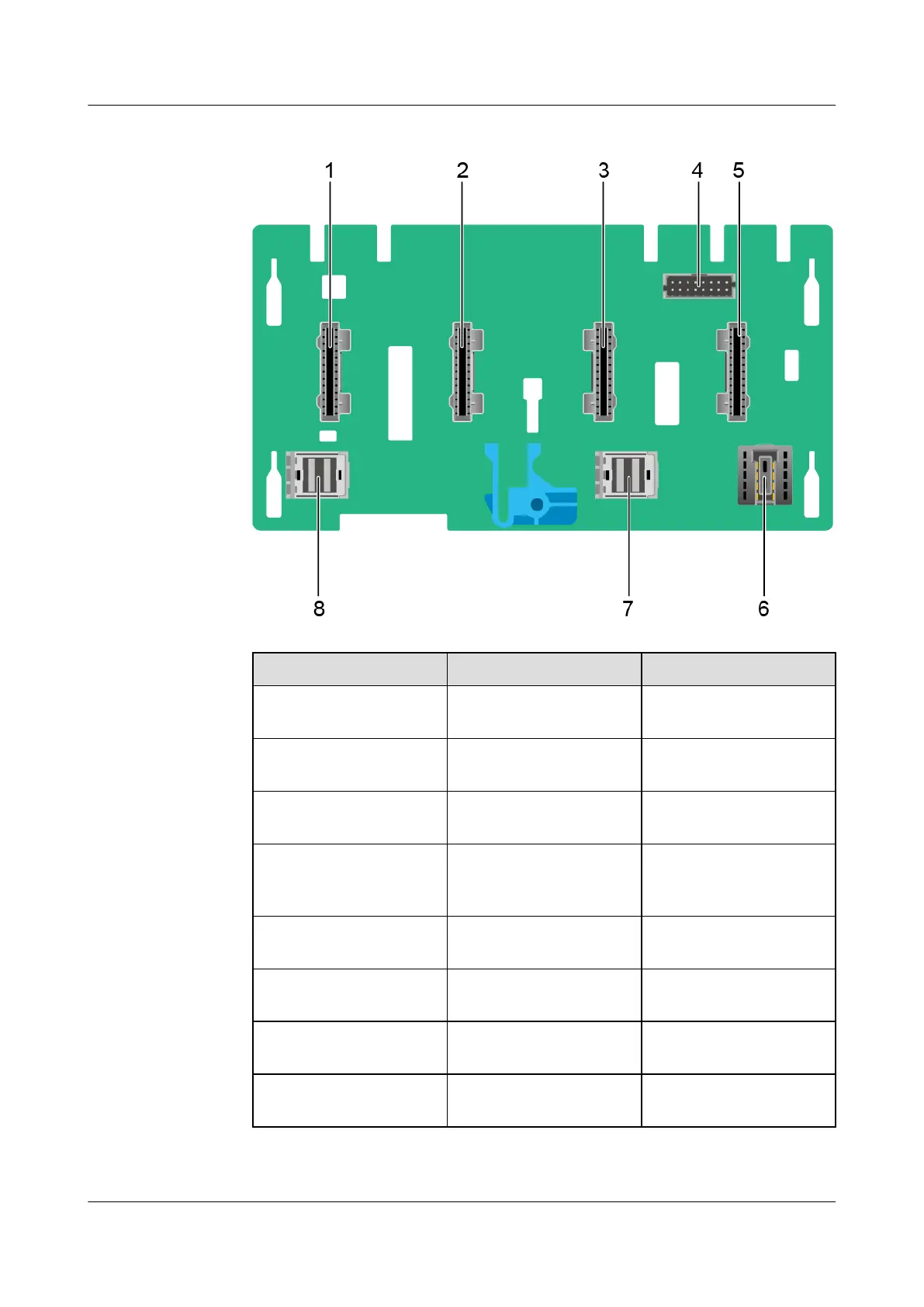

Figure 5-71 8 x 2.5" drive pass-through backplane
No. Connector Managed Drive Slot
1 UBC connector 4
(UBC4/J4)
Slots 6 to 7
2 UBC connector 3
(UBC3/J3)
Slots 4 to 5
3 UBC connector 2
(UBC2/J2)
Slots 2 to 3
4 Backplane signal cable
connector (HDD_BP/
J20)
-
5 UBC connector 1
(UBC1/J1)
Slots 0 to 1
6 Power connector
(HDD_POWER/J21)
-
7 Mini-SAS HD connector
(PORT A/J6)
Slots 0 to 3
8 Mini-SAS HD connector
(PORT B/J7)
Slots 4 to 7
