● The server with four GPU cards on the rear panel supports up to six standard
PCIe expansion slots (four FHFL dual-slot GPU cards and two FHHL standard
PCIe cards).
● For details about the optional components, consult the local sales representative
or see "OS and Parts Compatibility" in the Compatibility Checker.
● When IB cards are used to build an IB network, ensure that the IPoIB modes of
the IB cards at both ends of the network connection are the same. For details,
contact technical support.
5.7.2 PCIe Slots
PCIe Slots
● Server with a drive module or PCIe riser module on the rear panel

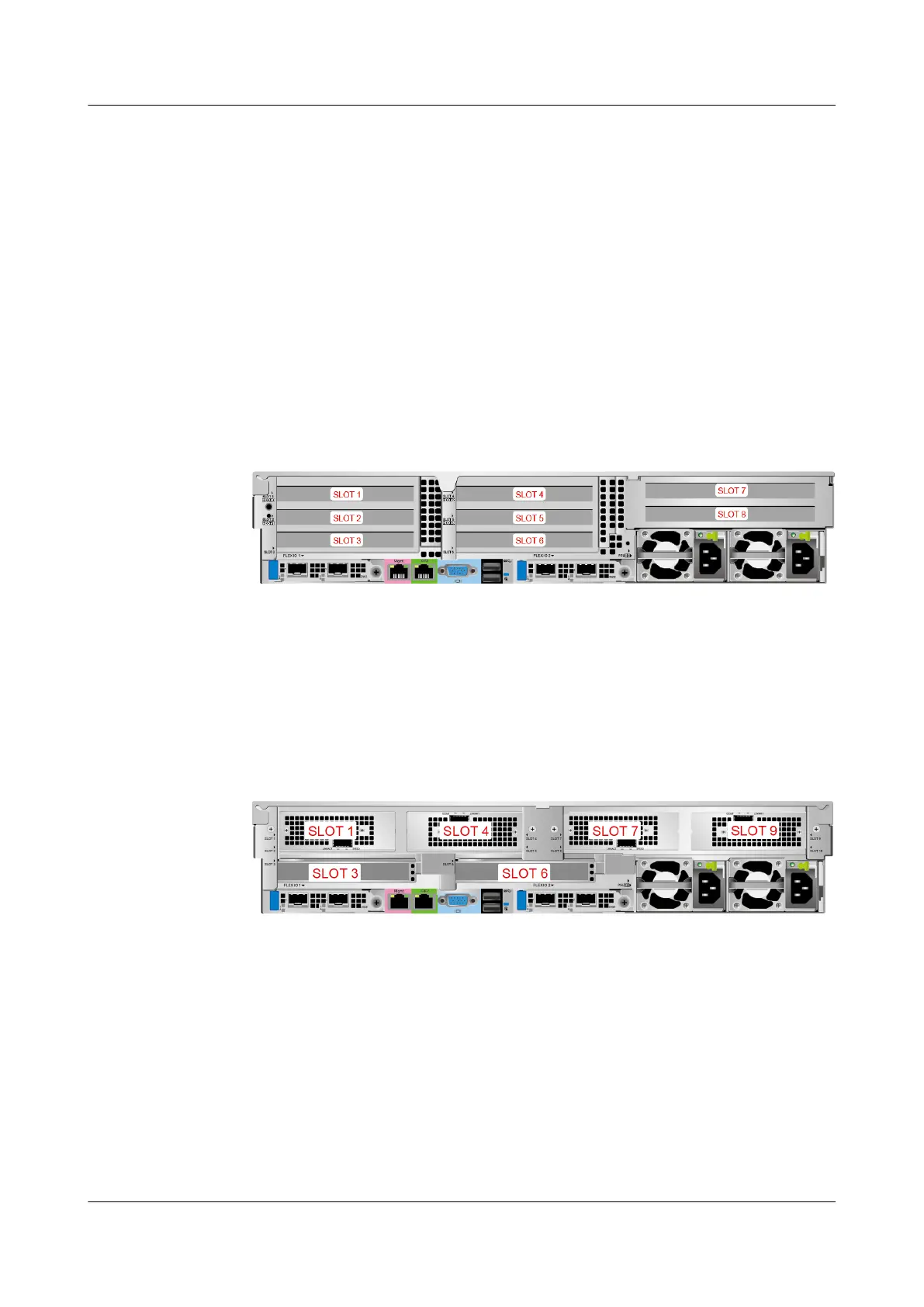

Figure 5-52 PCIe slots
– I/O module 1 provides slots 1, 2, and 3. If the module with 2 x 2.5" drives
and one PCIe riser card is used, slots 1 and 2 are unavailable.
– I/O module 2 provides slots 4, 5, and 6. If the module with 2 x 2.5" drives
and one PCIe riser card is used, slots 4 and 5 are unavailable.
– I/O module 3 provides slots 7 and 8.
● 4-GPU model
Figure 5-53 PCIe slots
FusionServer 2288H V7 Server
Technical White Paper 5 Hardware Description
Issue 02 (2023-05-25) Copyright © xFusion Digital Technologies Co., Ltd. 79
