Configuratio
n
Front Drive Rear Drive Built-in Drive Drive
Management
Mode
12 x 2.5" drive
(4 x SAS/
SATA + 8 x
NVMe) + 4 x
GPU card
configuration
2
● Front drive:
12 x 2.5"
– Slots 0
to 3
support
only
SAS/
SATA
drives.
– Slots 4
to 7
support
SAS/
SATA/
NVMe
drives.
– Slots 8
to 11
support
only
NVMe
drives.
-
- ● SAS/SATA
drive: 1 x
PCIe plug-
in RAID
controller
card
The PCIe
plug-in
RAID
controller
card is
installed in
slot 3 by
default.
● NVMe
drive: CPU
pass-
through
For details about the optional components, consult the local sales representative or
see "OS and Parts Compatibility" in the Compatibility Checker.
Drive numbering
NO TICE
The drive numbers identified by the RAID controller card vary depending on the
cabling of the RAID controller card. This section uses the drive numbers identified by
a RAID controller card that adopts the default cabling described in "Internal Cabling"
in the FusionServer 2288H V7 Server Maintenance and Service Guide.
● Drive numbering of the 12 x 2.5" drive (4 x SATA + 8 x NVMe) pass-through
configuration 1 and 12 x 2.5" drive (4 x SATA + 8 x NVMe) + 4 x GPU card
configuration 1 in Table 5-14.

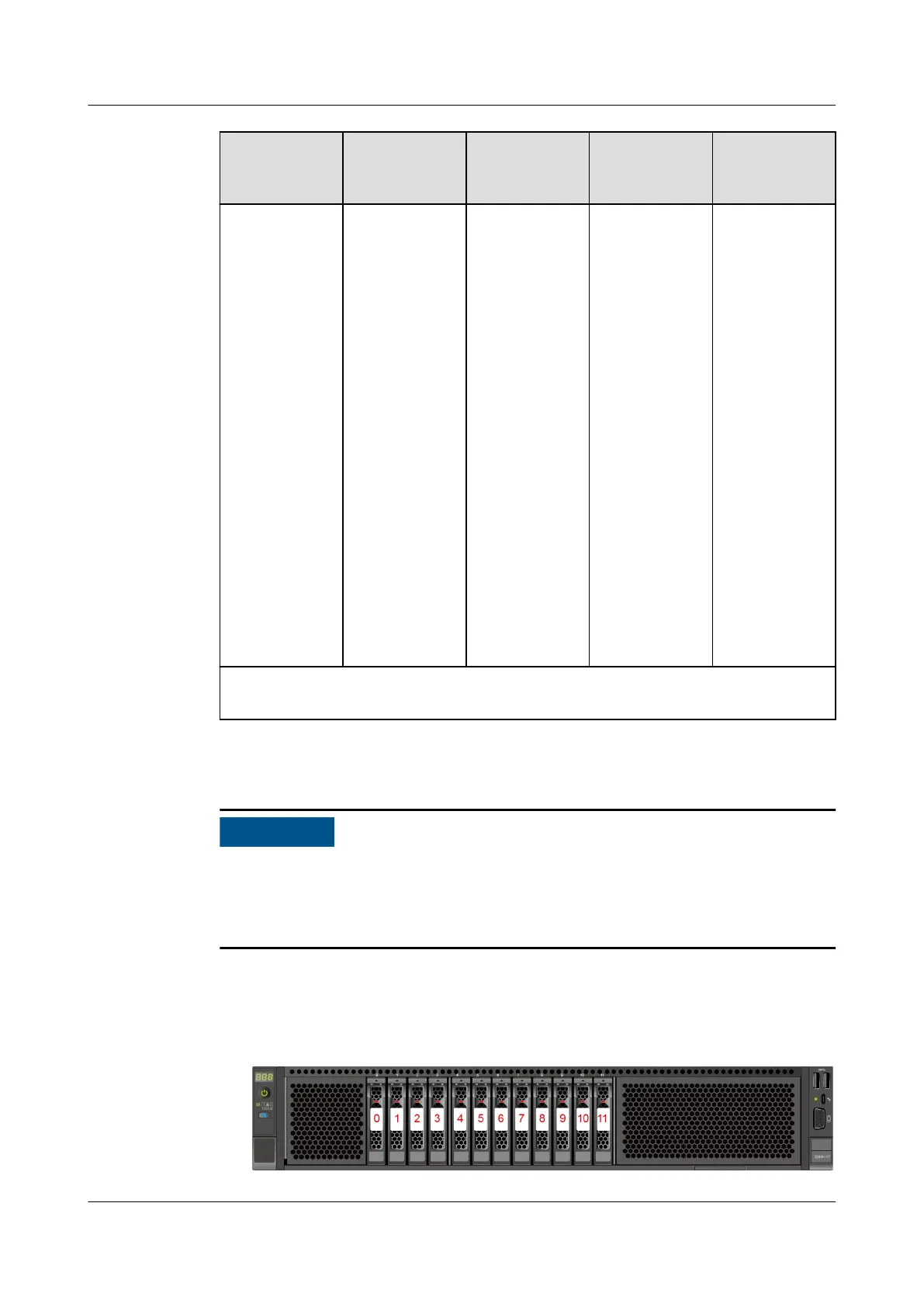

Figure 5-33 Drive numbering
