Xilinx Kintex-7 FPGA KC705 User Manual

KC705 Getting Started Guide www.xilinx.com 13
UG883 (v4.0.1) May 28, 2014
Hardware Test Board Setup Requirements
Figure 5 shows the steps needed to set the USB-UART port.
Note:
Steps and diagrams refer to use with a Windows host PC with the Windows XP or Windows 7
operating system.
X-Ref Target - Figure 5

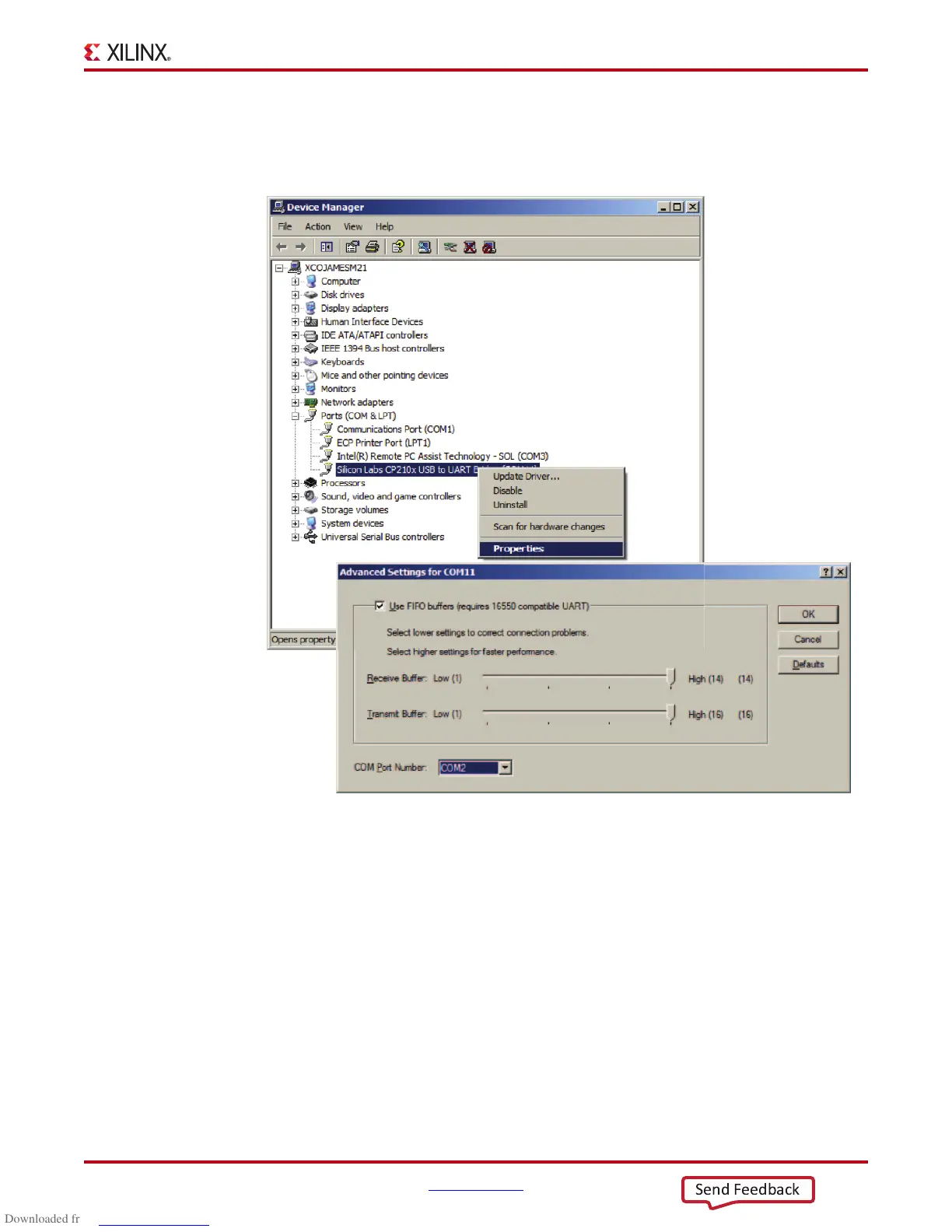

Figure 5: Port Selection on the Device Manager Screen
UG883_05_040913
Send Feedback

Xilinx Kintex-7 FPGA KC705 Specifications

General

FPGA Speed Grade	-2
FPGA Package	FFG900
Logic Cells	326, 080
DSP Slices	840
Clock Management Tiles	10
Transceivers	16
DDR3 Memory	1GB
Flash Memory	128MB
Clock	200 MHz oscillator
Form Factor	ATX
Ethernet	10/100/1000
Expansion Connectors	FMC
USB	USB-UART
