AMS Bring-up with the AMS101 Evaluation Card
AMS Bring-up with the AMS101 Evaluation Card
The Xilinx® 7 series FPGAs each feature a 1 MSPS, 12-bit, analog-to-digital converter built
into the FPGA for everything from simple analog monitoring to more signal processing
intensive tasks like linearization, calibration, oversampling and filtering. The
Kintex-7 FPGA KC705 evaluation kit includes the hardware and software to evaluate this
feature and determine its usefulness in the user’s end system.
For evaluation of Xilinx Analog Mixed Signal (AMS) capability, the following items from
your kit are needed:
• Access to XADC header in your FPGA base board
• AMS101 evaluation card (Figure 7)
• FPGA design and software files downloaded from the KC705 support website
• USB/UART drivers from Silicon Labs
•AMS Evaluator tool
X-Ref Target - Figure 7

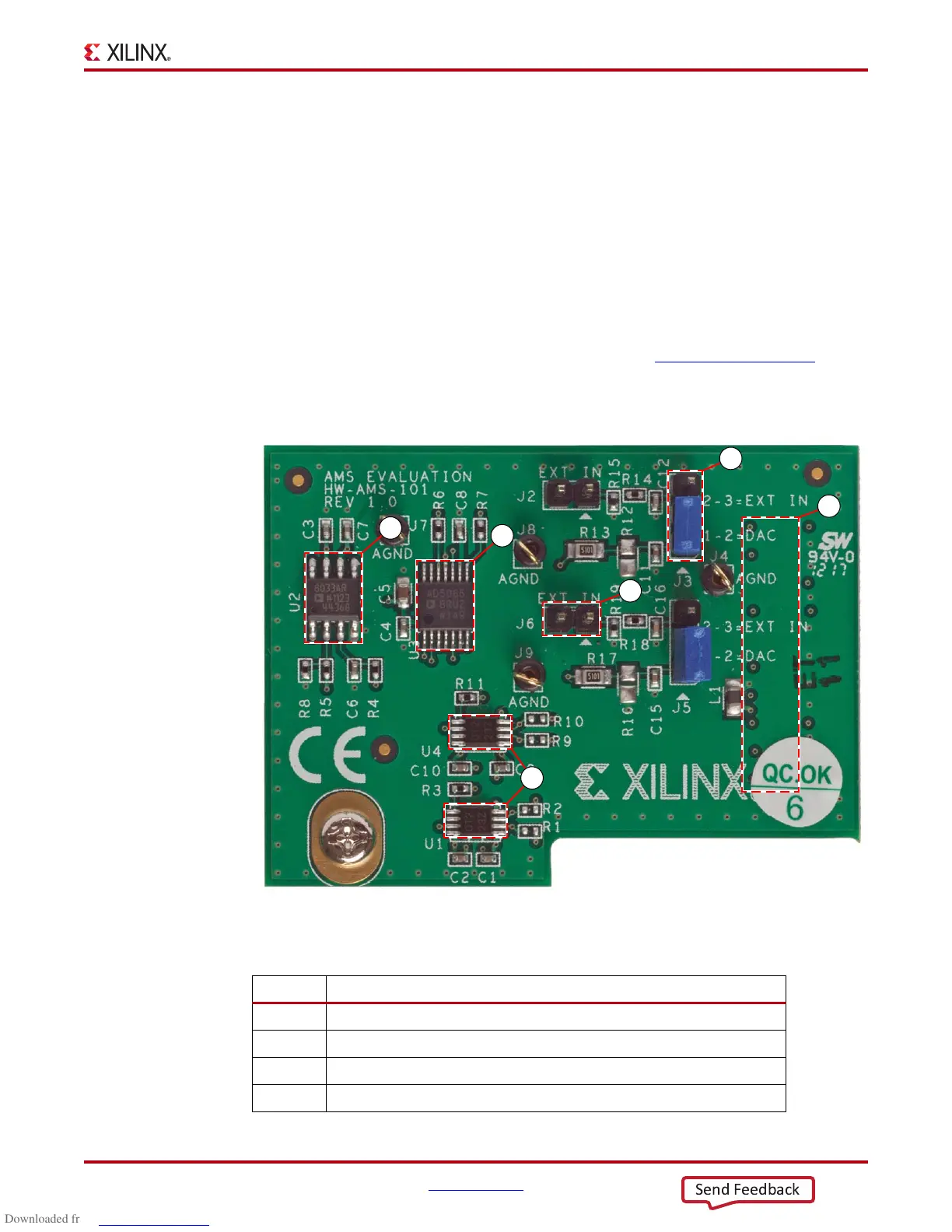

Figure 7: AMS101 Evaluation Card
Tab le 2 : AMS101 Evaluation Card Features
Callout Component Description
1 Jumpers to select DAC or external signal source.
2 20-pin connector to the XADC header on the KC705 board.
3 Pins for external analog input signals.
4 Digital I/O level translators.
UG883_07_061213
3
2
5
1
6
4
Send Feedback

Xilinx Kintex-7 FPGA KC705 Specifications

General

FPGA Speed Grade	-2
FPGA Package	FFG900
Logic Cells	326, 080
DSP Slices	840
Clock Management Tiles	10
Transceivers	16
DDR3 Memory	1GB
Flash Memory	128MB
Clock	200 MHz oscillator
Form Factor	ATX
Ethernet	10/100/1000
Expansion Connectors	FMC
USB	USB-UART
