Xilinx Kintex-7 FPGA KC705 User Manual

18 www.xilinx.com KC705 Getting Started Guide
UG883 (v4.0.1) May 28, 2014
AMS Bring-up with the AMS101 Evaluation Card

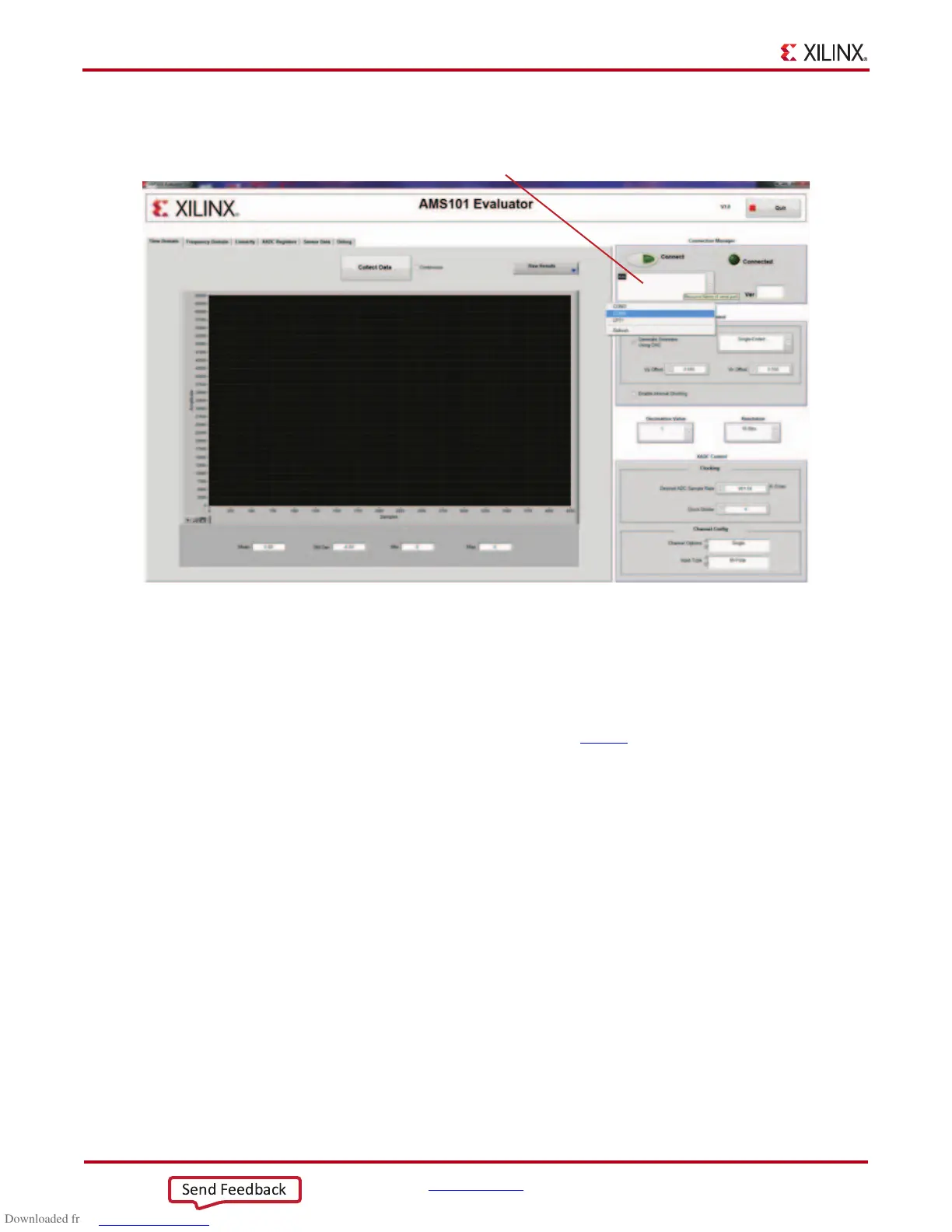

The AMS101 Evaluator GUI is shown in Figure 9.
The AMS Evaluator Tool allows designers to quickly evaluate the analog signals in the
time domain, frequency domain, display linearity, verify the XADC register settings, and
measure the internal temperature sensor and supply voltages.
For a more extensive explanation of the AMS101 evaluation card and the applicable files,
refer to AMS101 Evaluation Platform User Guide (UG886
).
X-Ref Target - Figure 9
Figure 9: AMS101 Evaluator GUI
UG883_09_121112
Select COM Port Here
Send Feedback

Xilinx Kintex-7 FPGA KC705 Specifications

General

FPGA Speed Grade	-2
FPGA Package	FFG900
Logic Cells	326, 080
DSP Slices	840
Clock Management Tiles	10
Transceivers	16
DDR3 Memory	1GB
Flash Memory	128MB
Clock	200 MHz oscillator
Form Factor	ATX
Ethernet	10/100/1000
Expansion Connectors	FMC
USB	USB-UART
