Optional Hardware Setup

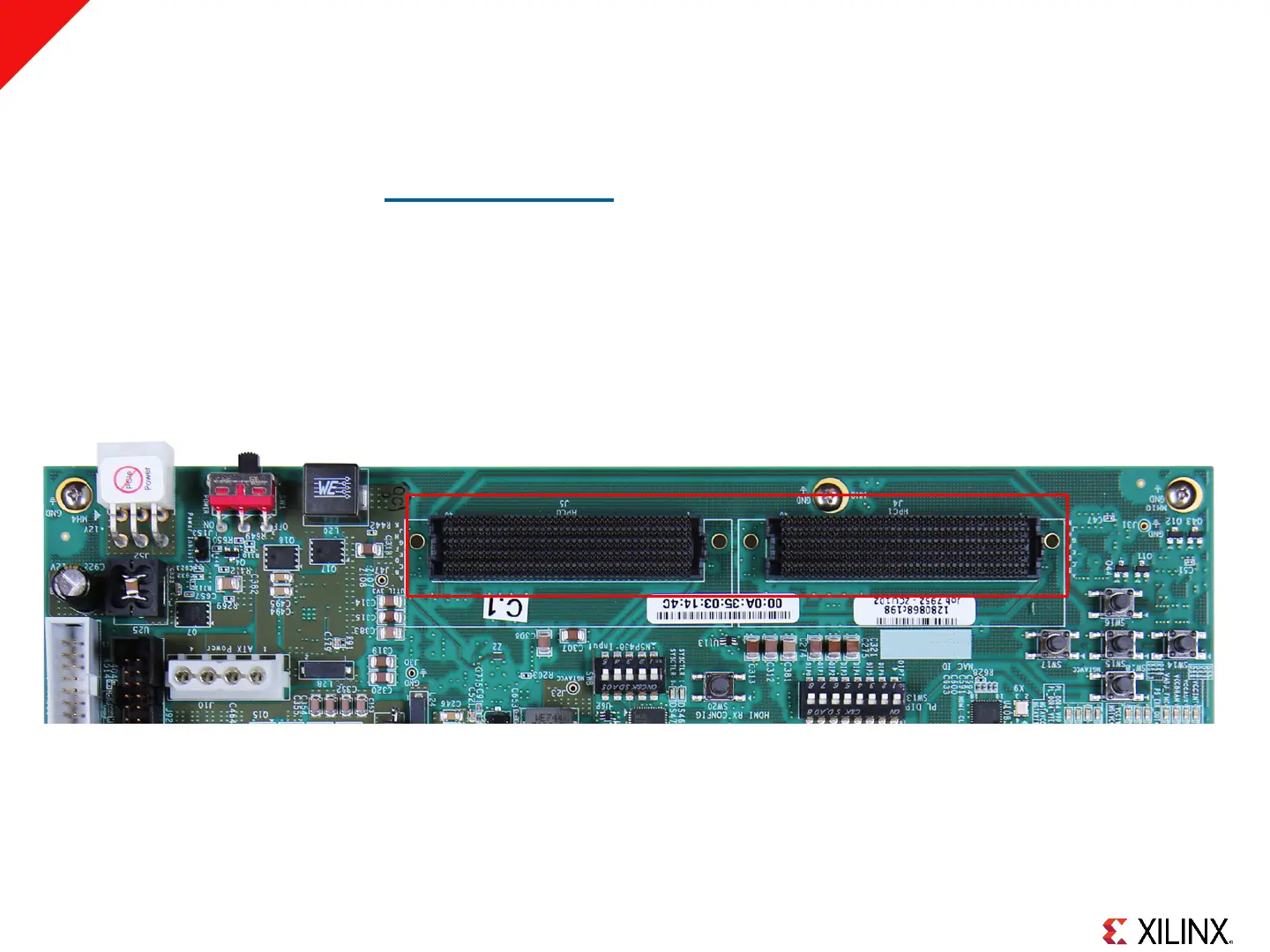

˃ Attach two FMC XM107 board to the FMC HPC connectors

˃ Available through Whizz Systems

Note: Presentation applies to the ZCU102
