Xilinx ZCU102 Software Install And Board Setup

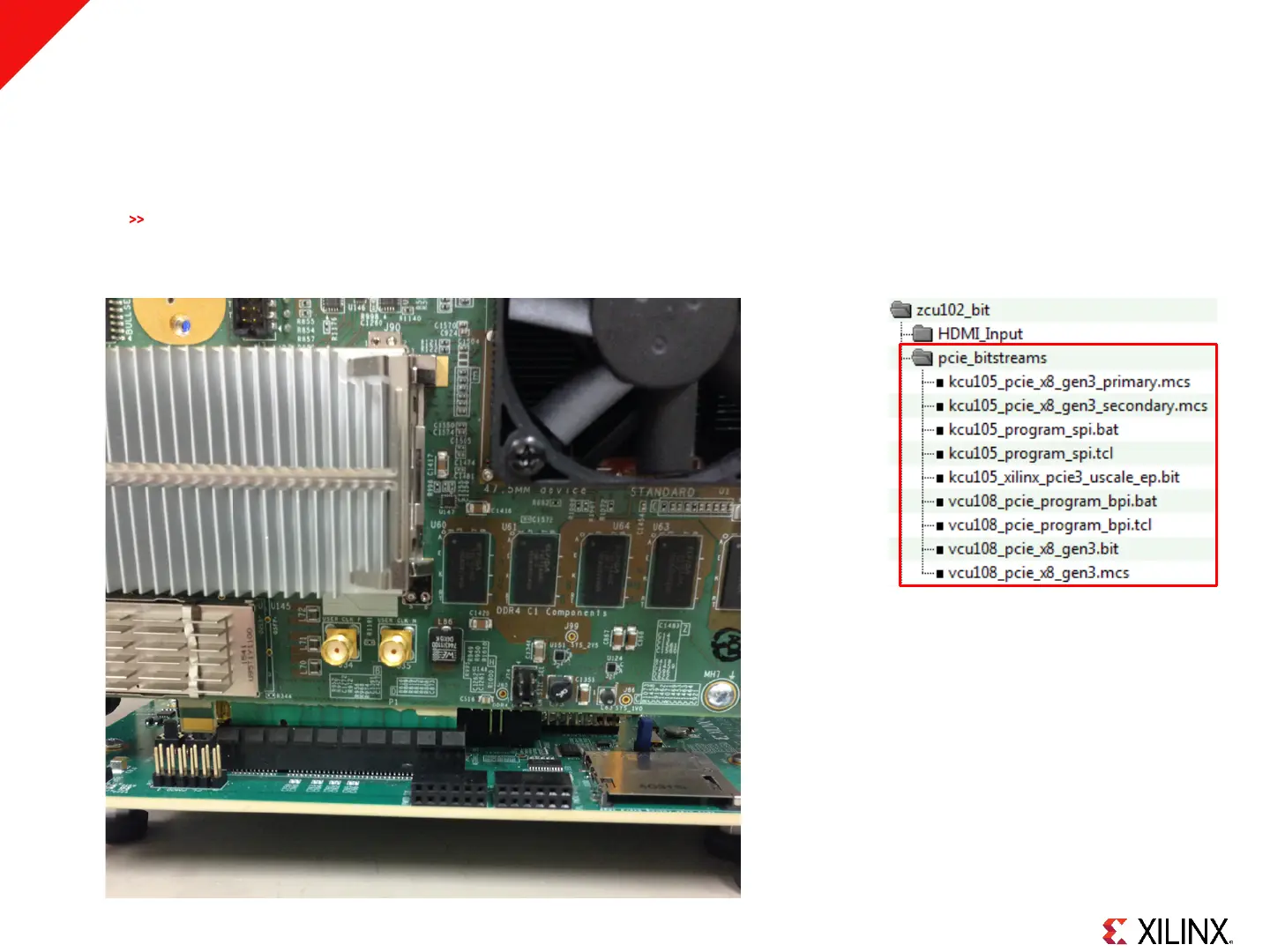

Optional SD Card Testing Hardware Setup
˃ Insert a KCU105 or VCU108 PCIe board with connector into the Root Port
connector on the ZCU102
The KCU105 or VCU108 PCIe Board must be powered up and programmed with the PCIe PIO
design at the start of the test
Note: Presentation applies to the ZCU102

Xilinx ZCU102 Specifications

General

Processor	Quad-core ARM Cortex-A53, Dual-core ARM Cortex-R5
SD Card	MicroSD card slot
Video Outputs	DisplayPort
FPGA	Xilinx Zynq UltraScale+ XCZU9EG-2FFVB1156E
Memory	4GB DDR4 Component Memory
Storage	MicroSD card slot
Ethernet	Gigabit Ethernet
USB	1 x USB 3.0, 1 x USB 2.0
PCIe	PCIe Gen2 x4
Display	DisplayPort
Power Supply	12V DC input
SATA	SATA 3.0
Clocking	Programmable clocks
Operating System Support	PetaLinux
