Optional
-
Set
ting FMC HPC1 clock
˃

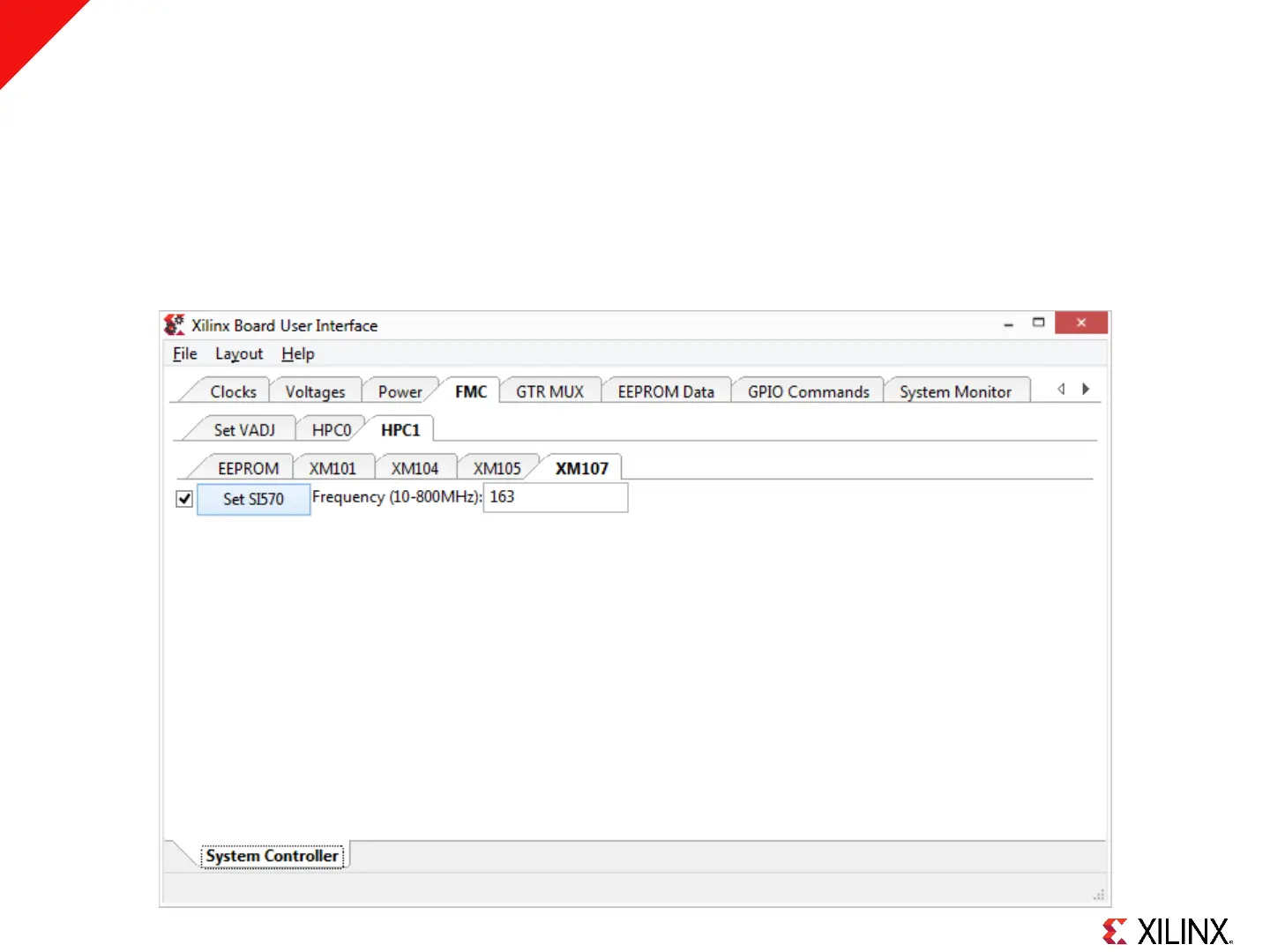

Using
the SCUI G
UI, select
the XM107
tab u
nder the HP
C1 tab, u
nder the
FMC tab
˃
For the I
BERT F
MC testin
g, set 163,
and click t
he Set S
I570 but
ton
Note:
Presentation applies
to the
ZCU102
27
29
