Optional SD Card Testing Hardware Setup
˃ The disk drive testing requires an SATA hard drive and a USB3 thumb drive,
all formatted to FAT32

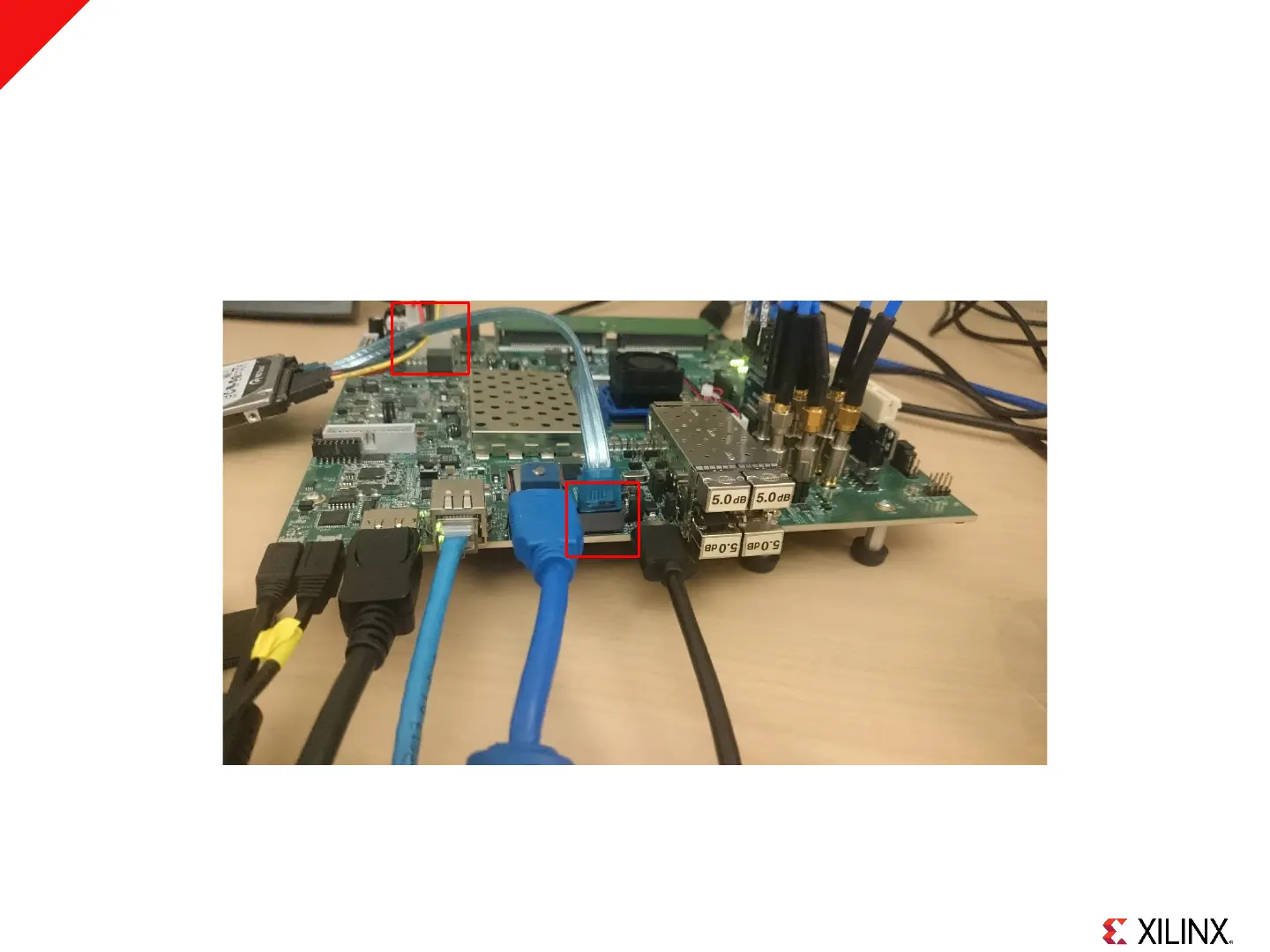

˃ Attach the SATA hard drive to P9 and powered by J10 as shown
Note: Presentation applies to the ZCU102
