Optional SD Card Testing Hardware Setup

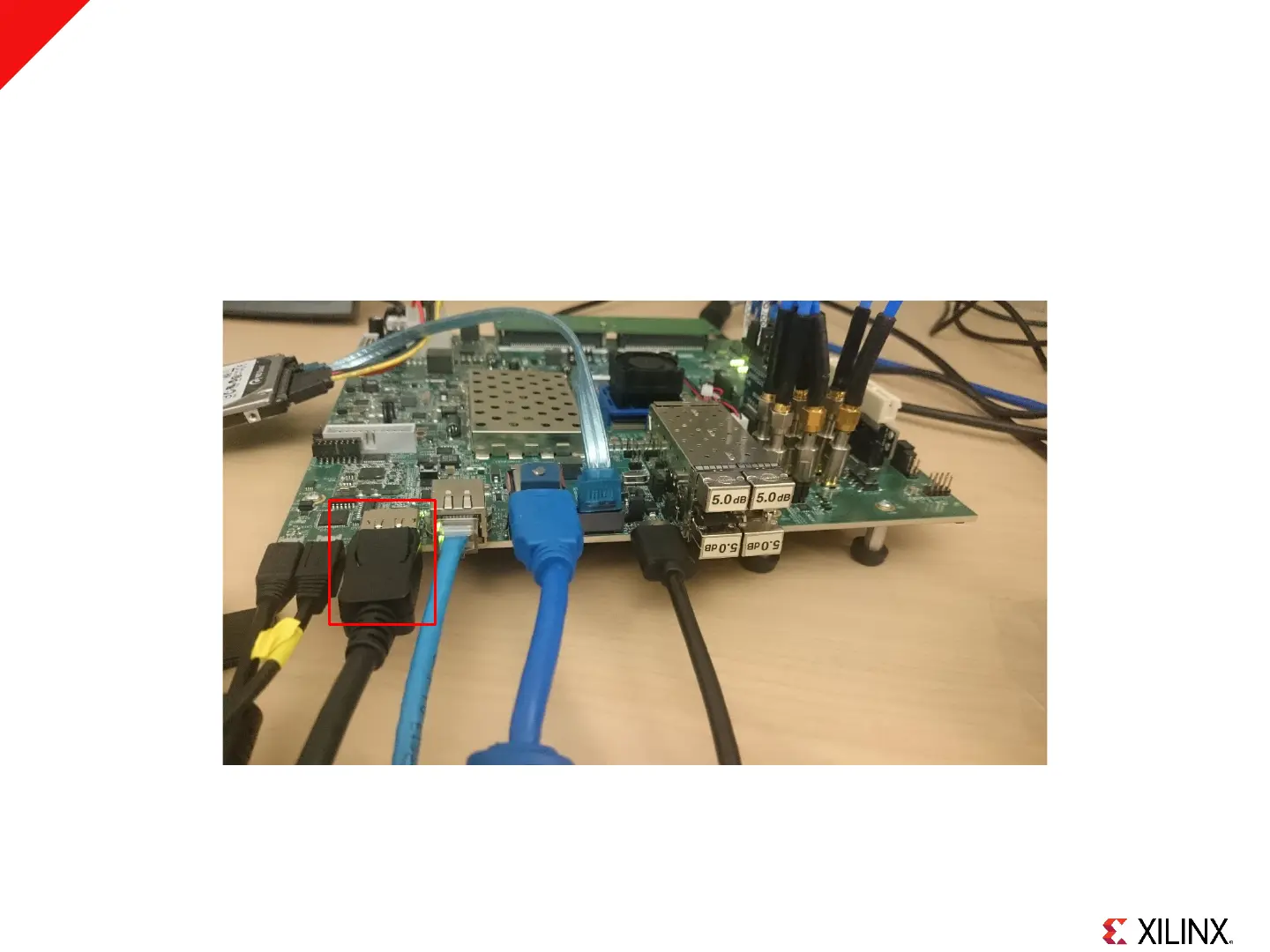

˃ Attach a Display Port cable to the ZCU102 board and connect to the a 4K
monitor
Note: Presentation applies to the ZCU102
