Seven kinds of Acc/Dec time can be defined, and the inverter’s Acc/Dec time 1~7 can be selected by different combination of
control terminals. Please refer to the introductions of P4.00~P4.05 for the definitions of terminals used to select Acc/Dec time,
also, you can refer to Acc/Dec time defined in P0.17 and P0.18.
P3.26 Multi-frequency 1 Range: lower limit of frequency~upper limit of frequency 5.00Hz
P3.27 Multi-frequency 2 Range: lower limit of frequency~upper limit of frequency 10.00Hz
P3.28 Multi-frequency 3 Range: lower limit of frequency~upper limit of frequency 20.00Hz
P3.29 Multi-frequency 4 Range: lower limit of frequency~upper limit of frequency 30.00Hz
P3.30 Multi-frequency 5 Range: lower limit of frequency~upper limit of frequency 40.00Hz
P3.31 Multi-frequency 6 Range: lower limit of frequency~upper limit of frequency 45.00Hz
P3.32 Multi-frequency 7 Range: lower limit of frequency~upper limit of frequency 50.00Hz
These frequencies will be used in multi-step speed operation and simple PLC operation, please refer to the introductions of
P4.00~P4.05 and P8.
P3.33 Jump frequency 1
Range: 0.00－500.00Hz
0.00Hz
P3.34 Range of jump frequency 1
Range: 0.00－30.00Hz
0.00Hz
P3.35 Jump frequency 2
Range: 0.00－500.00Hz
0.00Hz
P3.36 Range of jump frequency 2
Range: 0.00－30.00Hz
0.00Hz
P3.37 Jump frequency 3
Range: 0.00－500.00Hz
0.00Hz
P3.38 Range of jump frequency 3
Range: 0.00－30.00Hz
0.00Hz
P3.33~P3.38 define the functions that will avoid resonant point of mechnical load.The frequency of the inverter can do
jump operation near some jump frequency point, as shown in Fig. 6-15, you can define three ranges of jump frequency at
most.

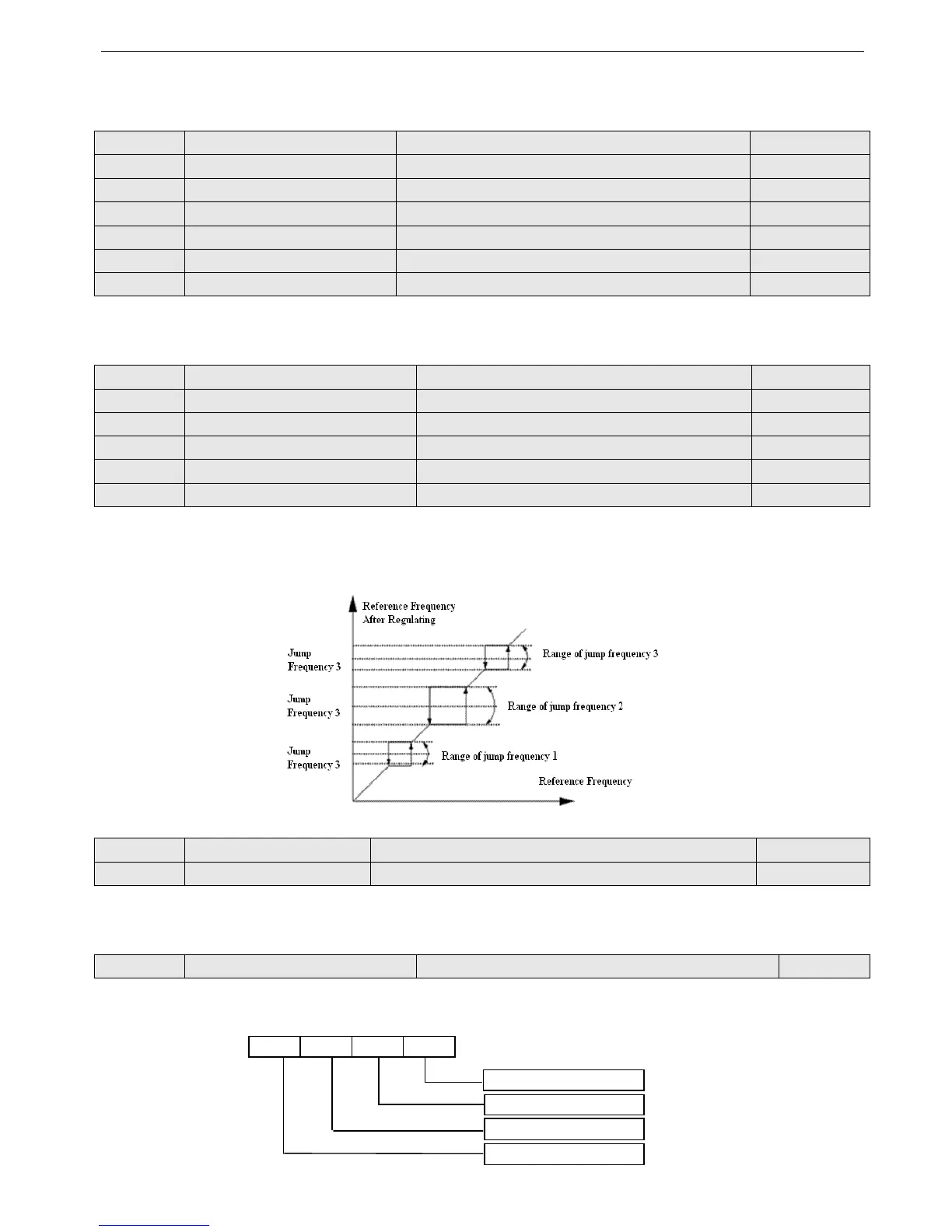

Fig.4-15 Jump frequency and range
P3.39 Set running time Range: 0~65.535K hour 0.000K
P3.40 Accumulate running time Range: 0~65.535K hour *
If accumulated running time reach the setting time (P3.39), the inverter will output signal, refer to function P4.08~P4.09.
P3.40 refers to the accumulating running time from out of factory till now.
P3.41 Display parameters selection 1 Range: 0000~FFFF 0000
P3.41 uses the 4 bits of this parameter (hex value) to control the displaying of b-09~b-24. Please transform the parameter
to binary value when using. Each binary bit controls the displaying of one monitor parameter b. See Fig 4-16.
P3.41 binary value:
Fig.4－16 Display parameters selection 1
b-09 ~ b-12
b
-
13 ~ b
-
16
b-17 ~ b-20
b-21 ~ b-24
0000
00
00
0000
0000
