The real running frequency= the proportion * frequency command receiving from RS485 port.
This parameter can also set running frequency proportion of several inverters in multimachine linkage mode.
Seven kinds of Acc/Dec time can be defined, and the inverter’s Acc/Dec time 1~7 can be selected by different combination of
control terminals. Please refer to the introductions of P4.00~P4.05 for the definitions of terminals used to select Acc/Dec time,
also, you can refer to Acc/Dec time defined in P0.17 and P0.18.
Range: lower limit of frequency~upper limit of frequency
Range: lower limit of frequency~upper limit of frequency
Range: lower limit of frequency~upper limit of frequency
Range: lower limit of frequency~upper limit of frequency
Range: lower limit of frequency~upper limit of frequency
Range: lower limit of frequency~upper limit of frequency
Range: lower limit of frequency~upper limit of frequency
These frequencies will be used in multi-step speed operation and simple PLC operation, please refer to the introductions of
P4.00~P4.05 and P8.
Range of jump frequency 1
Range of jump frequency 2
Range of jump frequency 3
P3.33~P3.38 define the functions that will avoid resonant point of mechnical load.The frequency of the inverter can do
jump operation near some jump frequency point, as shown in Fig. 4-15, you can define three ranges of jump frequency at
most.

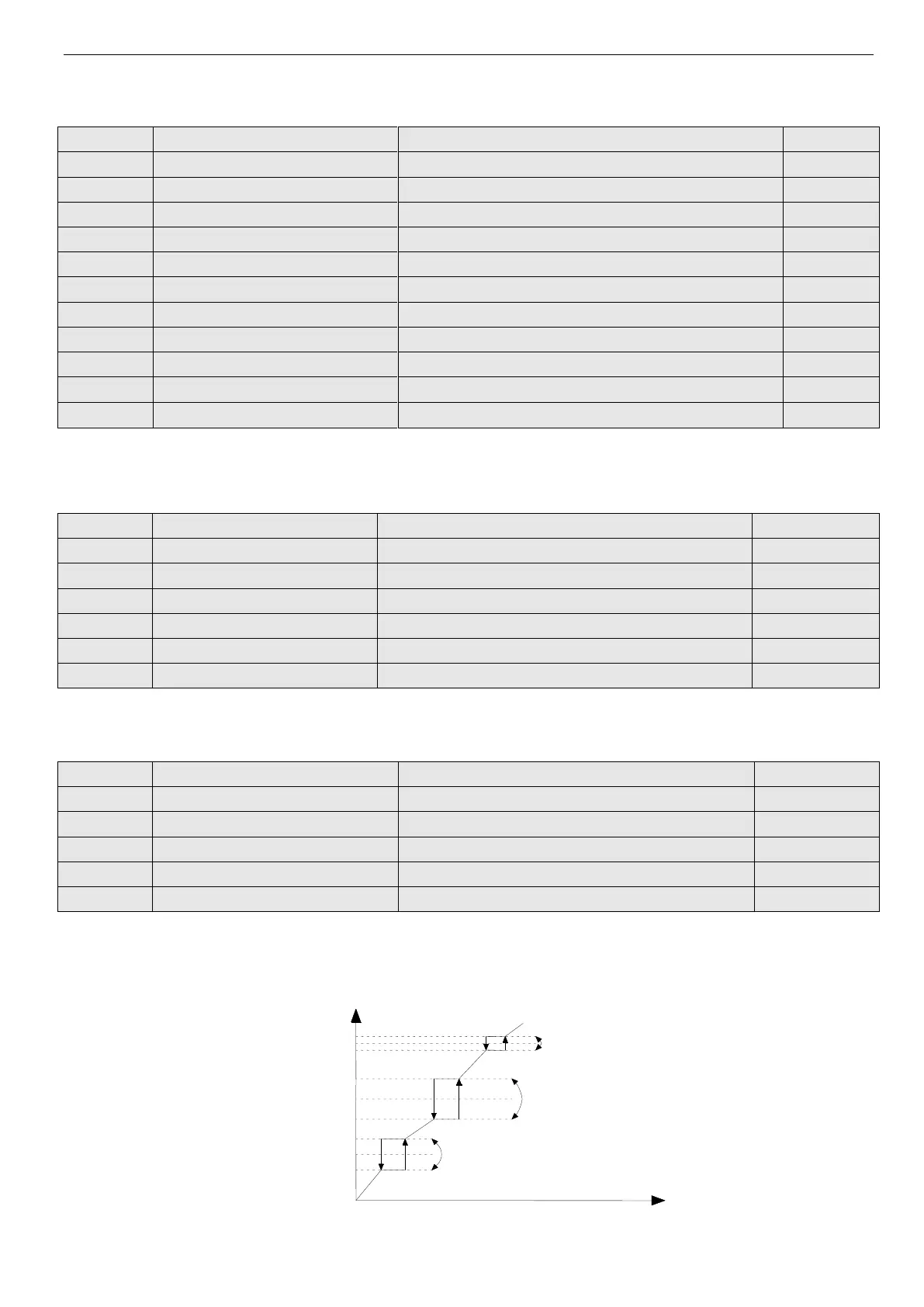

Fig.4-15 Jump frequency and range
Set frequency after adjusting
