Note: the ED board is in developing.
When TBN runs on OC, the station connection wire is optical fiber. The last station sending
terminal connects to the receiving terminal of the first station to make the loop network. The
optical signal has strong anti-interference ability. But the optical fiber is easy to broken and
complicated to make the pigtail, this limits the developing of optical fiber. TBN_OC supports
600bit~3Mbit baud rate.
As the RS485 device driving ability and conversion speed of photoelectric module, the node
quantity in the TBN network must be less than 32.
1-1-3. XINJEConfig software
The using steps of XINJEConfig:
For example, two XD3-32T-E communicate with each other through RS485 port based on X-NET
protocol.

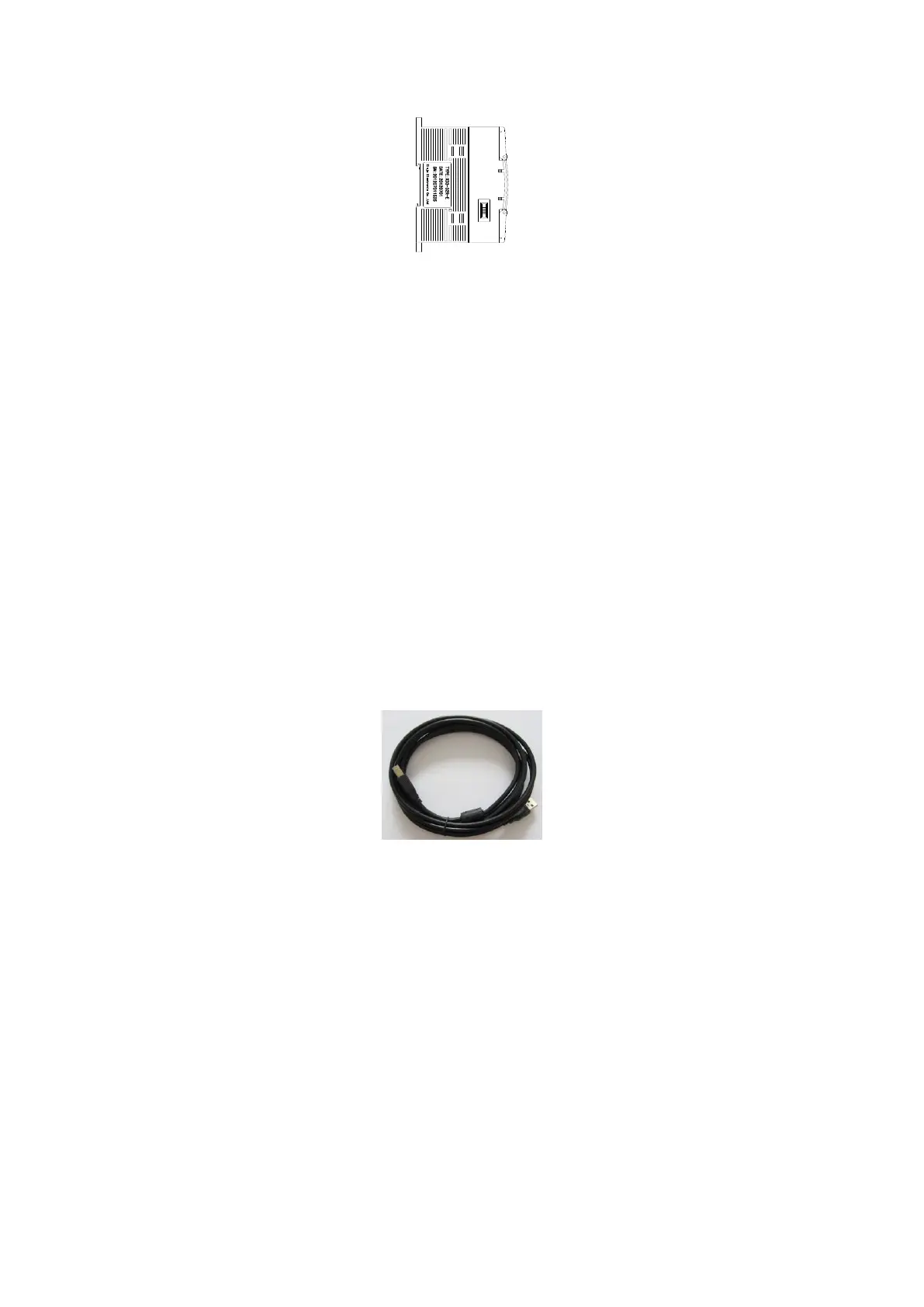

Note: Please connect PLC with PC through USB cable before matching the PLC by software.
Make sure to install the USB driver before using.
USB cable
Open the XINJEConfig software, click config/find device.
