Xpresskit DBALL User Manual

Platform: DBALL/DBALL2
Firmware: TL1 Remote Start Ready (RSR) Installation
© 2015 Directed. All rights reserved.
Rev.: 20150709
The optional XL202 and antenna are not included and MUST be purchased separately.
Refer to the Passive Keyless Entry (PKE) Installation Guide (N2102T) for detailed wiring information.
4
4
XL202
Antenna
XOVER
SmartStart is optional and not included. It MUST be purchased separately.
SmartStart is optional and not included. It MUST be purchased separately.
The DBALL Remote Start Ready (RSR) solution offers three (3) configuration options to control your system: 3x OEM
Lock Remote Start Activation,RF Kit or SmartStart (all sold separately). This section provides specific installation
information for SmartStart and XL202.
Configuration Wires (Gray & White)
Connect Gray wire to (-) Ground
5 pins
D2D (4 pins, white)
4 pins
2 pins,
not used
CABLE
CABLE
The modules must be connected in a specific order. Refer to the Module Programming section for more information.
1. Use the D2D Crossover (XOVER) cable that is provided with XL202, and NOT the one in the DBALL package.
2. The modules must be connected in a specific order. Refer to the Module Programming section for more information.
The modules must be connected in a specific order. Refer to the Module Programming section for more information.

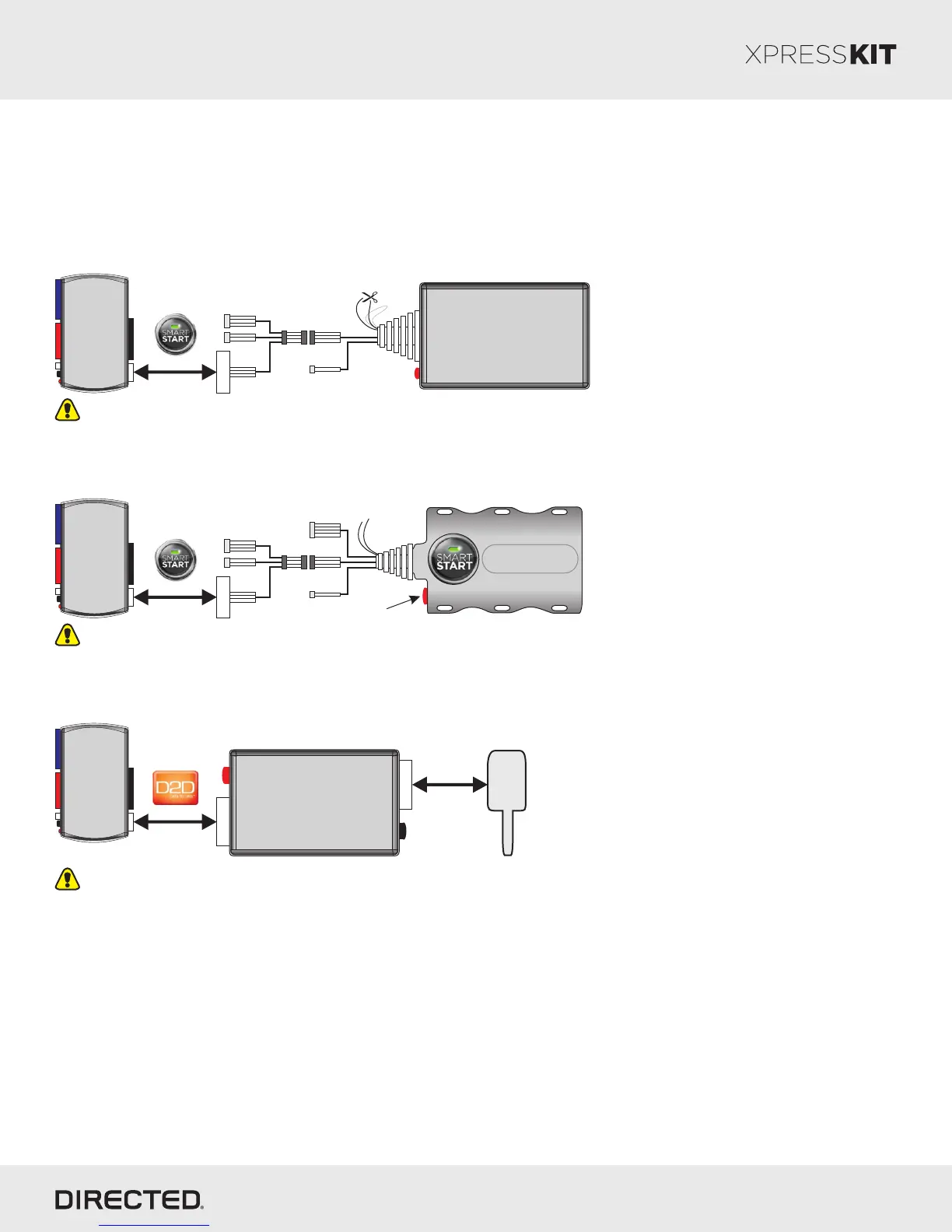

SmartStart/XL202 Installation Notes
SmartStart Revision B
RF Kit
RF Kit & PKE Combination
Refer to the Passive Keyless Entry (PKE) Installation Guide (N2102T) for detailed wiring information.
RF Kit, PKE & SmartStart BT Combination
SmartStart Revision A
LED
Prog.
Button
D2D (4 pins, white)
4 pins
2 pins,
not used
OR
SmartStart
Configuration Wires (White & Brown or Blue)
Cut Brown or Blue Loop
LED
THIS SIDE UP
LED
Page 10
DBALL/
DBALL2
DBALL/
DBALL2
DBALL/
DBALL2
Vehicles
2013 2012 2011 2010 2009 2008 2007 PK-Immobilizer Bypass-Data No Key Req'd DL-Arm Factory Security DL-Disarm Factory Security DL-Door Lock Control DL-Door Unlock DL-Driver Priority Unlock DL-Hatch Glass Release DL-Trunk / Hatch Release EIPS RS-Remote Start Ready RS-SmartStart RS-Tach / RPM Output SS-Entry Monitoring ALL Door Pins SS-Entry Monitoring Driver Door Pin SS-Entry Monitoring Hood Pin SS-Entry Monitoring Trunk/Hatch Pin SS-Factory Alarm Trigger Monitoring ST-Brake Status (foot brake) ST-Ignition Status
ES 350 (Smart Key) 2 2 2 2 2 2 • • • • • • • • • • • • • • • • • •
Camry (Smart Key) 2 2 2 2 2 • • • • • • • • • • • • • • • • • •
Camry Hybrid 2 2 2 2 2 • • • • • • • • • • • • • • • • • •
Corolla (Smart Key) 1 1 1 1 1 • • • • • • • • • • • • • • • • • •
Highlander (Smart Key) 2 2 2 2 2 2 • • • • • • • • • • • • • • • • • •
Highlander Hybrid 2 2 2 2 2 2 • • • • • • • • • • • • • • • • • •
RAV4 (Smart Key) 1 1 1 1 • • • • • • • • • • • • • • • • •
Legend:
PK: Transponder & Immobilizer Override
DL: OE Door Lock & Alarm Controls
EIPS: Engine Idle Protection System
RS: Remote Start & Engine Controls
SS: Integrated Security & Monitoring
ST: Function/Feature Status
Toyota
Lexus
