Xpresskit DBALL User Manual

Installation
Type
Vehicle OEM Remote Starter & Connector Location
2 Toyota Camry (Smart Key) 2007-2011 Behind glove box & Passenger kick panel
2
Toyota Camry Hybrid (Smart Key) 2007-2011
Behind glove box & Passenger kick panel
1
Toyota Corolla (Smart Key) 2009-2013
Behind glove box & Passenger kick panel & Junction Box & Steering column
2 Toyota Highlander (Smart Key) 2008-2013 Behind glove box & Passenger kick panel
2 Toyota Highlander Hybrid (Smart Key) 2008-2013 Behind glove box & Passenger kick panel
1 Toyota RAV4 (Smart Key) 2009-2012 Behind glove box & Junction Box
Page 3

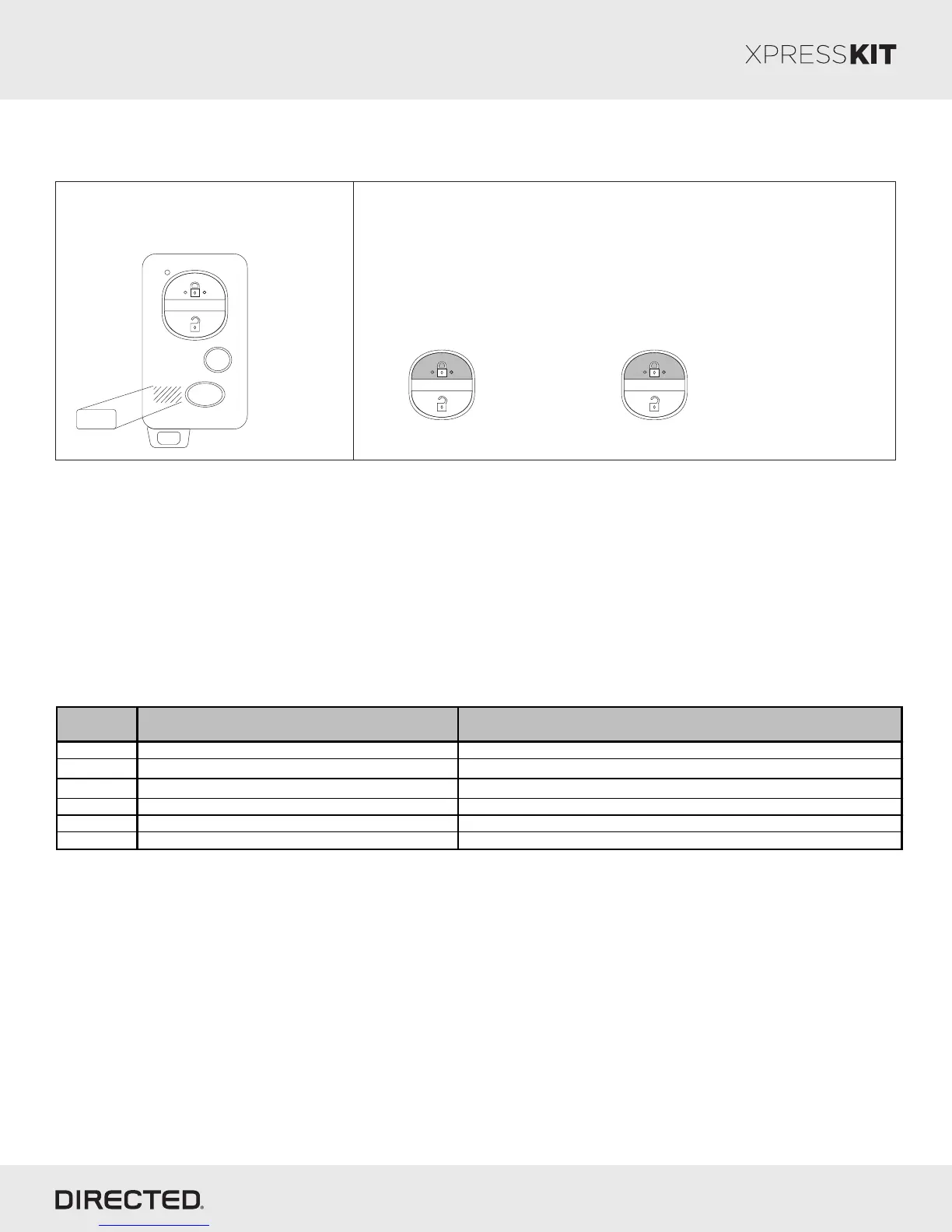

OEM Remote Starter Detection
If the Vehicle is Equipped with an OEM Remote Starter
How to Know if the Vehicle is Equipped with an OEM Remote Starter
1- An “ENGINE STARTER”
sticker should be on the
remote.
2- Remote start the OEM remote starter:
Press the remote control’s lock button twice within 2
seconds, then press and hold the lock button for 3 seconds.
The parking lights flash after 3 seconds. The engine starts and
the parking lights flash repeatedly for 20 seconds.
ENGINE
STARTER
x2 &
Press & Hold
for 3 seconds
If the vehicle is equipped with an OEM remote starter, the DBALL LED will start flashing orange to indicate its detection. To
skip bypass and use convenience only, press the programming button 5 times.* The reason for this is to allow aftermarket
security to be installed while keeping the factory remote starter active. If you wish to use DBALL to control the remote start
sequence, the factory remote starter must be disconnected before programming the DBALL as both modules cannot coexist.
Locating the OEM Remote Starter
* The DBALL LED turns ON solid orange for 3 seconds after programming or power up to indicate the bypass is not
active. Refer to LED Diagnostics & Troubleshooting section for more information.
Platform: DBALL/DBALL2
Firmware: TL1 Remote Start Ready (RSR) Installation
© 2015 Directed. All rights reserved.
Rev.: 20150709
Vehicles
2013 2012 2011 2010 2009 2008 2007 PK-Immobilizer Bypass-Data No Key Req'd DL-Arm Factory Security DL-Disarm Factory Security DL-Door Lock Control DL-Door Unlock DL-Driver Priority Unlock DL-Hatch Glass Release DL-Trunk / Hatch Release EIPS RS-Remote Start Ready RS-SmartStart RS-Tach / RPM Output SS-Entry Monitoring ALL Door Pins SS-Entry Monitoring Driver Door Pin SS-Entry Monitoring Hood Pin SS-Entry Monitoring Trunk/Hatch Pin SS-Factory Alarm Trigger Monitoring ST-Brake Status (foot brake) ST-Ignition Status
ES 350 (Smart Key) 2 2 2 2 2 2 • • • • • • • • • • • • • • • • • •
Camry (Smart Key) 2 2 2 2 2 • • • • • • • • • • • • • • • • • •
Camry Hybrid 2 2 2 2 2 • • • • • • • • • • • • • • • • • •
Corolla (Smart Key) 1 1 1 1 1 • • • • • • • • • • • • • • • • • •
Highlander (Smart Key) 2 2 2 2 2 2 • • • • • • • • • • • • • • • • • •
Highlander Hybrid 2 2 2 2 2 2 • • • • • • • • • • • • • • • • • •
RAV4 (Smart Key) 1 1 1 1 • • • • • • • • • • • • • • • • •
Legend:
PK: Transponder & Immobilizer Override
DL: OE Door Lock & Alarm Controls
EIPS: Engine Idle Protection System
RS: Remote Start & Engine Controls
SS: Integrated Security & Monitoring
ST: Function/Feature Status
Toyota
Lexus
